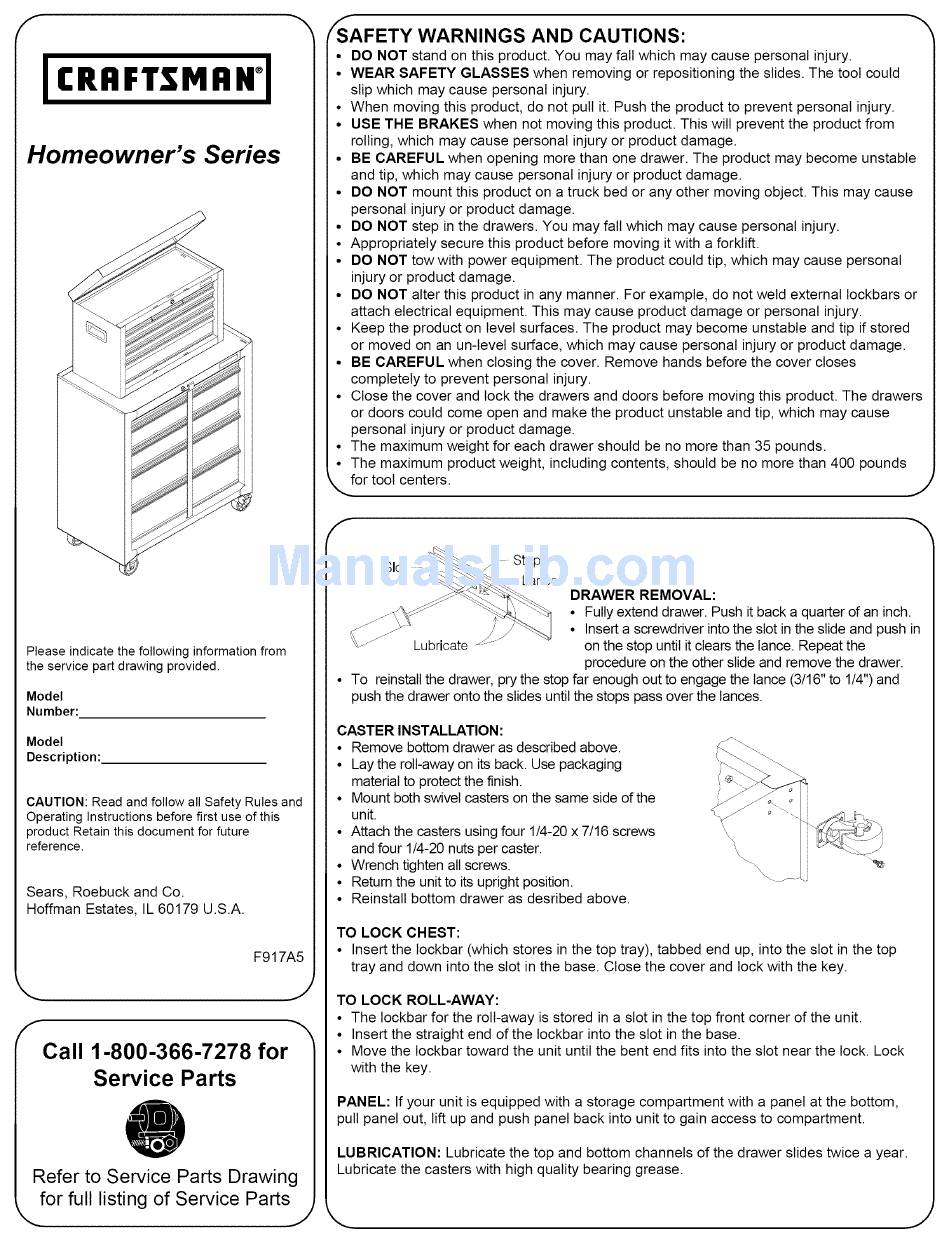

Craftsman Homeowner's Series Manual

f
I CRRFTgMRN°I
Homeowner's Series
Please indicate the following information from
the service part drawing provided.
Model
Number:
Model
Description:
CAUTION: Read and follow all Safety Rules and
Operating Instructions before first use of this
product Retain this document for future
reference.
Sears, Roebuck and Co.
Hoffman Estates, IL 60179 U.S.A.
Service Parts
F917A5
,J
fSAFETY WARNINGS AND CAUTIONS: -'_
• DO NOT stand on this product You may fall which may cause personal injury
• WEAR SAFETY GLASSES when removing or repositioning the slides The tool could
slip which may cause personal injury
• When moving this product, do not pull it Push the product to prevent personal injury
• USE THE BRAKES when not moving this product This will prevent the product from
rolling, which may cause personal injury or product damage
• BE CAREFUL when opening more than one drawer The product may become unstable
and tip, which may cause personal injury or product damage
• DO NOT mount this product on a truck bed or any other moving object This may cause
personal injury or product damage
• DO NOT step in the drawers You may fall which may cause personal injury
• Appropriately secure this product before moving it with a forklift
• DO NOT tow with power equipment The product could tip, which may cause personal
injury or product damage
• DO NOT alter this product in any manner For example, do not weld external tockbars or
attach electrical equipment This may cause product damage or personal injury
• Keep the product on level surfaces The product may become unstable and tip if stored
or moved on an un-level surface, which may cause personal injury or product damage
• BE CAREFUL when closing the cover Remove hands before the cover closes
completely to prevent personal injury
• Close the cover and lock the drawers and doors before moving this product The drawers
or doors could come open and make the product unstable and tip, which may cause
personal injury or product damage
• The maximum weight for each drawer should be no more than 35 pounds
• The maximum product weight, including contents, should be no more than 400 pounds
_for tool centers
J
f
Slot
z--Stop
Lance
DRAWER REMOVAL:
• Fully extend drawer. Push it back a quarter of an inch.
• Insert a screwdriver into the slot in the slide and push in
on the stop until it clears the lance. Repeat the
procedure on the other slide and remove the drawer.
• To reinstall the drawer, pry the stop far enough out to engage the lance (3/16" to 1/4") and
push the drawer onto the slides until the stops pass over the lances
CASTER INSTALLATION:
• Remove bottom drawer as described above.
• Lay the roll-away on its back. Use packaging
material to protect the finish.
• Mount both swivel casters on the same side of the
unit.
• Attach the casters using four 1/4-20 x 7/16 screws
and four 1/4-20 nuts per caster.
• Wrench tighten all screws.
• Return the unit to its upright position.
• Reinstall bottom drawer as desribed above.
TO LOCK CHEST:
• Insert the tockbar (which stores in the top tray), tabbed end up, into the slot in the top
tray and down into the slot in the base Close the cover and lock with the key
TO LOCK ROLL-AWAY:
• The tockbar for the roll-away is stored in a slot in the top front corner of the unit.
• Insert the straight end of the lockbar into the slot in the base.
• Move the lockbar toward the unit until the bent end fits into the slot near the lock. Lock
with the key.
PANEL: If your unit is equipped with a storage compartment with a panel at the bottom,
pull panel out, lift up and push panel back into unit to gain access to compartment.
LUBRICATION: Lubricate the top and bottom channels of the drawer slides twice a year.
Lubricate the casters with high quality bearing grease.
