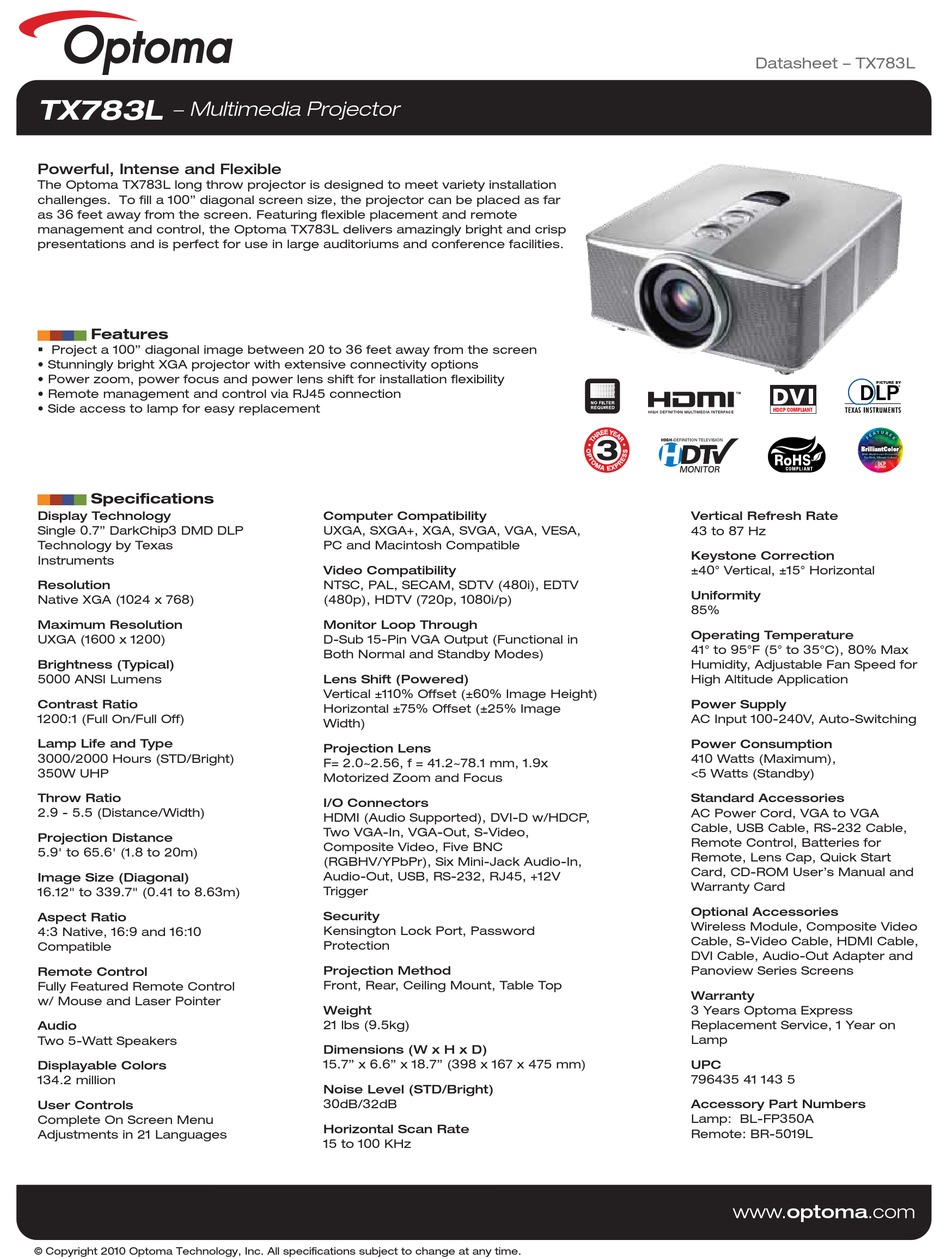

Optoma TX783L Brochure

TX783L
− Multimedia Projector
Powerful, Intense and Flexible
The Optoma TX783L long throw projector is designed to meet variety installation
challenges. To fill a 100" diagonal screen size, the projector can be placed as far
as 36 feet away from the screen. Featuring flexible placement and remote
management and control, the Optoma TX783L delivers amazingly bright and crisp
presentations and is perfect for use in large auditoriums and conference facilities.
Features
 Project a 100" diagonal image between 20 to 36 feet away from the screen
• Stunningly bright XGA projector with extensive connectivity options
• Power zoom, power focus and power lens shift for installation flexibility
• Remote management and control via RJ45 connection
• Side access to lamp for easy replacement

Specifications

Display Technology
Single 0.7" DarkChip3 DMD DLP
Technology by Texas
Instruments
Resolution
Native XGA (1024 x 768)
Maximum Resolution
UXGA (1600 x 1200)
Brightness (Typical)
5000 ANSI Lumens
Contrast Ratio
1200:1 (Full On/Full Off)
Lamp Life and Type
3000/2000 Hours (STD/Bright)
350W UHP
Throw Ratio
2.9 - 5.5 (Distance/Width)
Projection Distance
5.9' to 65.6' (1.8 to 20m)
Image Size (Diagonal)
16.12" to 339.7" (0.41 to 8.63m)
Aspect Ratio
4:3 Native, 16:9 and 16:10
Compatible
Remote Control
Fully Featured Remote Control
w/ Mouse and Laser Pointer
Audio
Two 5-Watt Speakers
Displayable Colors
134.2 million
User Controls
Complete On Screen Menu
Adjustments in 21 Languages
© Copyright 2010 Optoma Technology, Inc. All specifications subject to change at any time.
Computer Compatibility
UXGA, SXGA+, XGA, SVGA, VGA, VESA,
PC and Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
Monitor Loop Through
D-Sub 15-Pin VGA Output (Functional in
Both Normal and Standby Modes)
Lens Shift (Powered)
Vertical ±110% Offset (±60% Image Height)
Horizontal ±75% Offset (±25% Image
Width)
Projection Lens
F= 2.0~2.56, f = 41.2~78.1 mm, 1.9x
Motorized Zoom and Focus
I/O Connectors
HDMI (Audio Supported), DVI-D w/HDCP,
Two VGA-In, VGA-Out, S-Video,
Composite Video, Five BNC
(RGBHV/YPbPr), Six Mini-Jack Audio-In,
Audio-Out, USB, RS-232, RJ45, +12V
Trigger
Security
Kensington Lock Port, Password
Protection
Projection Method
Front, Rear, Ceiling Mount, Table Top
Weight
21 lbs (9.5kg)
Dimensions (W x H x D)
15.7" x 6.6" x 18.7" (398 x 167 x 475 mm)
Noise Level (STD/Bright)
30dB/32dB
Horizontal Scan Rate
15 to 100 KHz
Datasheet – TX783L
Vertical Refresh Rate
43 to 87 Hz
Keystone Correction
±40° Vertical, ±15° Horizontal
Uniformity
85%
Operating Temperature
41° to 95°F (5° to 35°C), 80% Max
Humidity, Adjustable Fan Speed for
High Altitude Application
Power Supply
AC Input 100-240V, Auto-Switching
Power Consumption
410 Watts (Maximum),
<5 Watts (Standby)
Standard Accessories
AC Power Cord, VGA to VGA
Cable, USB Cable, RS-232 Cable,
Remote Control, Batteries for
Remote, Lens Cap, Quick Start
Card, CD-ROM User's Manual and
Warranty Card
Optional Accessories
Wireless Module, Composite Video
Cable, S-Video Cable, HDMI Cable,
DVI Cable, Audio-Out Adapter and
Panoview Series Screens
Warranty
3 Years Optoma Express
Replacement Service, 1 Year on
Lamp
UPC
796435 41 143 5
Accessory Part Numbers
Lamp: BL-FP350A
Remote: BR-5019L
