Summary of Contents for Fisher-Price W4695

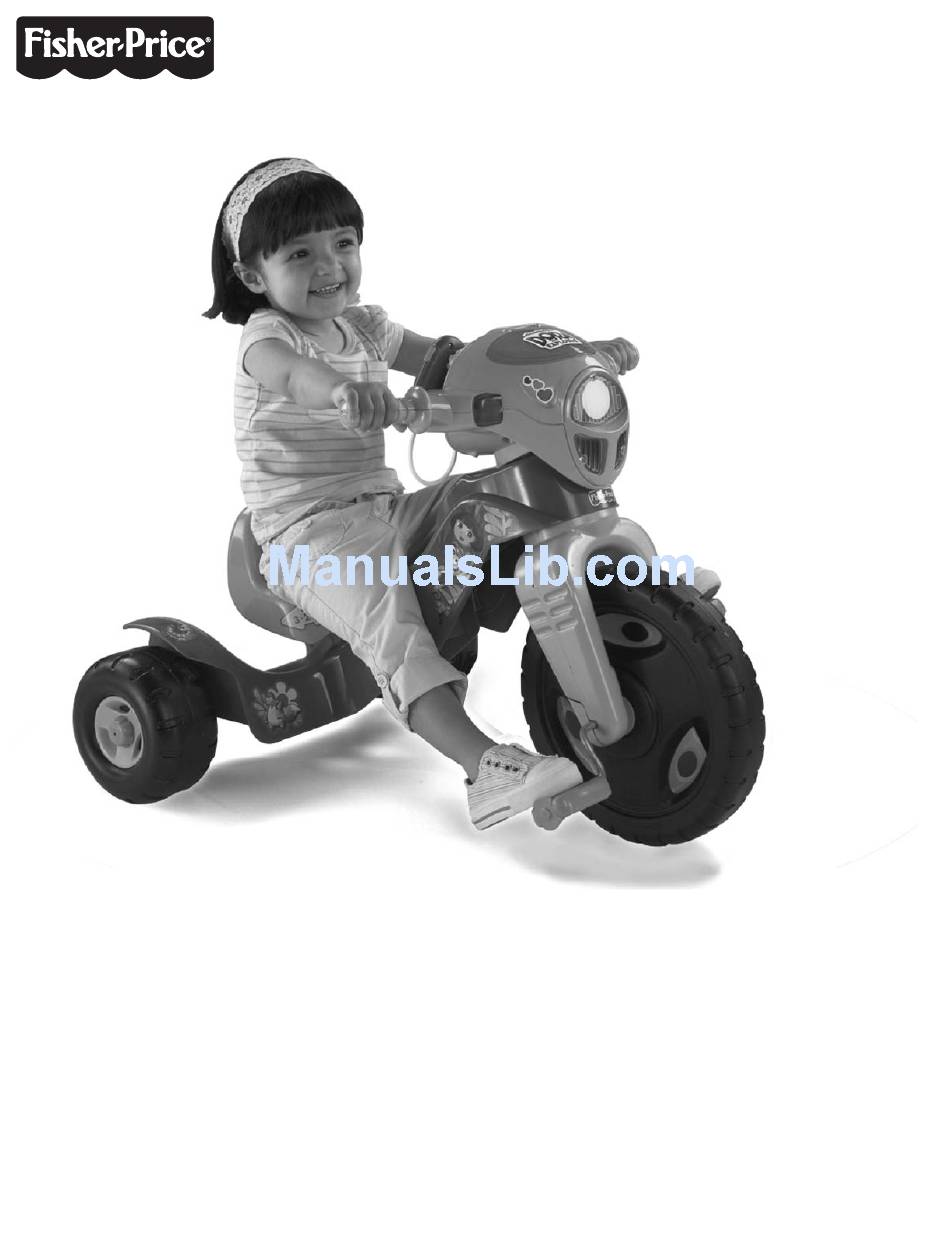

Page 1
W4695 Product features and decorations may vary from the photograph. Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Tools required for assembly: Phillips Screwdriver, Hammer and Scrap Block of Wood (not included). Requires three "AA"...
Consumer Information WARNING FASTENERS SHOWN ACTUAL SIZE TO AVOID SERIOUS INJURY: • Continuous adult supervision is required. • Never use near cars and other motor vehicles, #6 x ½" (1,3 cm) Screw – 3 #8 x " (1,9 cm) Screw – 4 near streets, steps, sloped driveways, hills, roadways, alleys, swimming pools or other bodies of water.
Assembly CAUTION This product contains small parts Hubcap in an unassembled state. Cap Nut (Peg Side Down) Adult assembly is required. Rear Wheel (Indented Side Up) Cover Straight Axle Frame Hubcap Cap Nut Rear Wheel Assembly Tool Assembled (Indented Side Rear Wheel Down) Scrap Block...
Page 4
Assembly Pedal Hubs Pedal Axle Assembly Front Wheel Pedal Pedal Axle • While holding the pedal hubs on the pedal axle assembly, insert the pedal axle through the hole in the center of the Scrap Block front wheel. of Wood •...
Page 5
Assembly Handlebar Headlight Cover Frame Neck Fork Post Fork Cover • Fit the the headlight cover onto the front of the handlebar. Rear of Trike • Insert three #6 x " (1,3 cm) screws into the headlight cover. Tighten the screws. Seat Retainer •...
Label Decoration Attaching the Seat Hint: The seat can be attached to the frame in any of three positions, depending on the size of your child. Check your child’s fi t on the trike by observing the seat to pedal distance, as it is being ridden.
Battery Replacement Battery Safety Information Note: For best performance, we recommend replacing the In exceptional circumstances, batteries may leak fl uids that can cause a chemical burn injury or ruin your product. To avoid batteries that came with this trike with three, new "AA" (LR6) battery leakage: alkaline batteries.
