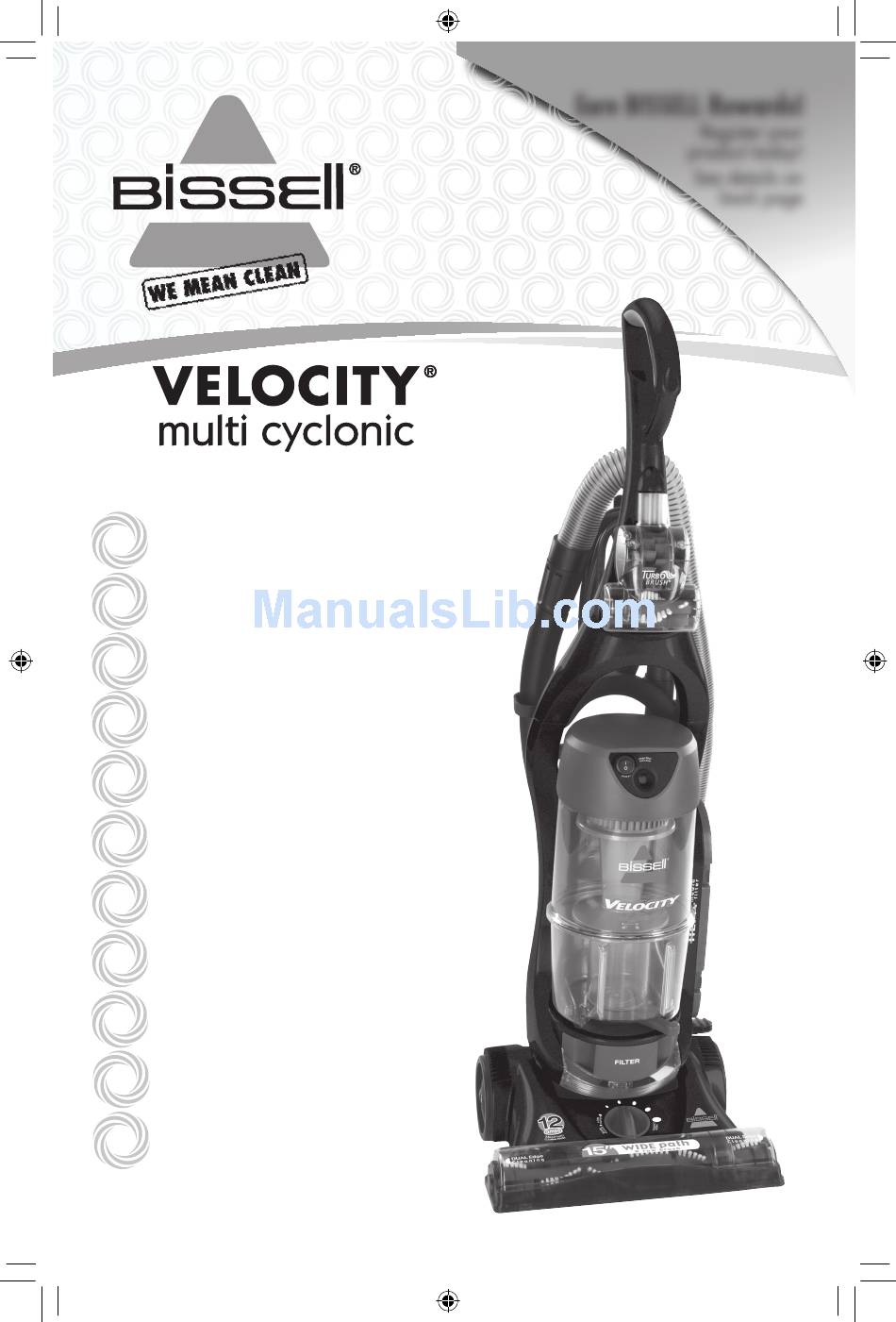

USER'S GUIDE
75B2 SERIES
Thank You
2
Safety instructions
3
Product view
4
Assembly
5
Operations
6-7
Maintenance and care
8-12
Troubleshooting
13
Replacement parts
14
Warranty
15
Product registration
16
Consumer services
16
DJ68-00375N REV(0.0)
DJ68-00375N(EN)-0.0.indd 1
Earn BISSELL Rewards!
Earn BISSELL Rewards!
R
R
egister your
egister your
product today!
product today!
See details on
See details on
back page
back page
10. 11. 12
4:22
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Bissell Velocity® Vacuum 75B21
Summary of Contents for Bissell Velocity® Vacuum 75B21
-
Page 1: Troubleshooting
Earn BISSELL Rewards! Earn BISSELL Rewards! egister your egister your product today! product today! See details on See details on back page back page USER'S GUIDE 75B2 SERIES Thank You Safety instructions Product view Assembly Operations Maintenance and care 8-12... - Page 2 Your BISSELL vacuum is well made, and we back it with a limited three year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you’ll receive fast, considerate assistance.
-
Page 3: Important Safety Instructions
MPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic Keep hair, loose clothing, fingers, and all ■ precautions should be observed, including parts of body away from openings and the following: moving parts. Read all Turn off all controls before plugging or ■... -
Page 4: Product View
roduct view Handle Quick Release ™ Cord Wraps Hose and Cord Clip Dusting Brush/ Upholstery Tool Power Cord Stretch Hose Crevice Tool TurboBrush ® Extension Wand Carrying Twist ‘n Handle Snap Hose ™ Curved Hose Wand Power Clean Filter Switch Indicator Lower Hose Clip... -
Page 5: Attach Handle To Vacuum
ssembly you need: phillips head screwdriver. 2. 2. Attach handle to vacuum 1. Locate handle and lower cord wrap. Remove screw packet (3 screws total) from back of handle. 2. Slide the base of the handle firmly into the grooves at the top of the vacuum body. -
Page 6: Power Cord Usage
perations Power Cord Usage 1. Remove cord and plug into an electrical outlet. There is a cord clip part of the upper cord wrap where you can attach the cord when vacuuming. Quick Release Cord Wrap 2. When finished cleaning, turn vacuum off and unplug power cord by grasping the polarized plug (NOT the cord) and dis- connect from outlet. - Page 7 perations Tools attach desired tool to hose for above floor cleaning surfaces or hard to reach areas. 1. Remove Hose: With vacuum in upright position, separate curved hose from hose base. 2. Attach tools by firmly pushing onto vacuum hose or extension wand. a.
-
Page 8: Maintenance And Care
aintenance and care to maximize performance and extend life of your vacuum it is very important to perform the following maintenance steps. empty dirty container 1. Turn power off. Unplug power cord from Dirt Cup Handle electrical outlet. Empty when dirt reaches the “Full” line on the container. -
Page 9: Replace Drive Belt
aintenance and care check rotating floor brush and drive belt it is recommended to check your vac- uum’s rotating floor brush and drive belt regularly for wear or damage. 1. Turn power OFF. Unplug power cord from electrical outlet. 2. In low cleaning position, turn vacuum over so bottom side is facing up. - Page 10 aintenance and care cleaning the upper tank 1. Turn power OFF. Unplug power cord from electrical outlet. 2. Remove the dirt container as instructed on page 8. Louvers 3. Grasp inner cyclone and twist to the left and pull straight down to remove. Use a damp cloth (water or mild solution) to wipe out inside of the upper tank.
-
Page 11: Clearing Clogs
aintenance and care clearing clogs 3 & 4. Reduced suction or poor pickup may be due to a clog in the vacuum. if you notice a change in the sound of the vacuum motor, check for clogs. 1. Turn power OFF. Unplug power cord from Curved electrical outlet. - Page 12 aintenance and care turbobrush maintenance 1. Turn power OFF. Unplug vacuum cord from electrical outlet. 2. Turn tool so bottom side faces up and remove the two screws. 3. Remove the faceplate and clear any obstructions 4. Remove the brush form the drive belt to clean debris.
-
Page 13: Troubleshooting
1-800-237-7691. w w w . b i s s e l l . c o m 8 0 0 . -
Page 14: Replacement Parts
You may purchase parts from your retailer, by calling BISSELL Consumer Services or by visiting our website. Below is a list of common replacement parts. While not all of these parts may have come with your specific model, they are available for purchase if desired. -
Page 15: Limited Three Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Homecare, Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for three years any defective or malfunctioning part. - Page 16 Grand Rapids MI 49501 ATTN: Consumer Services Or visit the BISSELL website - www.bissell.com When contacting BISSELL, have model number of cleaner available. Please record your Model Number: ___________________ Please record your Purchase Date: ___________________ note: please keep your original sales receipt. it provides proof of purchase date in the event of a warranty claim.
