RS232 Commands and Protocol
Function List

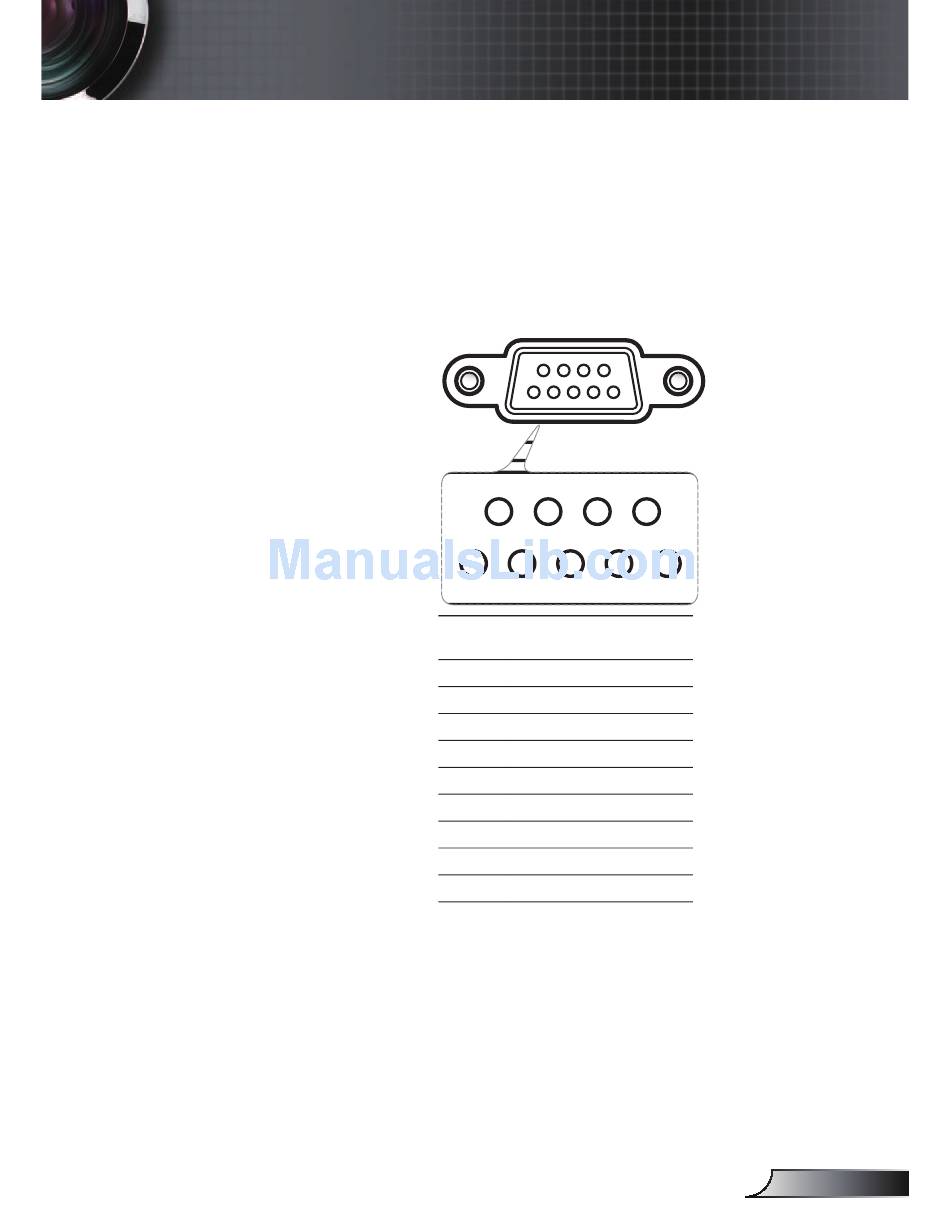

RS232 Pin Assignments
Pin no.
1
2
3
4
5
6
7
8
9
Appendices
9
8
7
6
5
4
3
2
Spec.
(from projector side)
N/A
RXD
TXD
N/A
GND
N/A
N/A
N/A
N/A
1
57
English
Advertisement
Related Manuals for Optoma TX762
Summary of Contents for Optoma TX762
-
Page 1: Rs232 Commands And Protocol Function List
Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments Spec. Pin no. (from projector side) English... -
Page 2: Rs232 Protocol Function List
Appendices RS232 Protocol Function List --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Baud Rate : 9600 Note : There is a <CR> after all ASCII commands Data Bits: 8 0D is the HEX code for <CR> in ASCII code Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F... - Page 3 = 0 (a=30) ~ 10 (a=31 30) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma ~XX82 2 7E 30 30 38 32 20 32 0D User ~XX83 1 7E 30 30 38 33 20 31 0D...
