RS232 Commands and Protocol
Function List

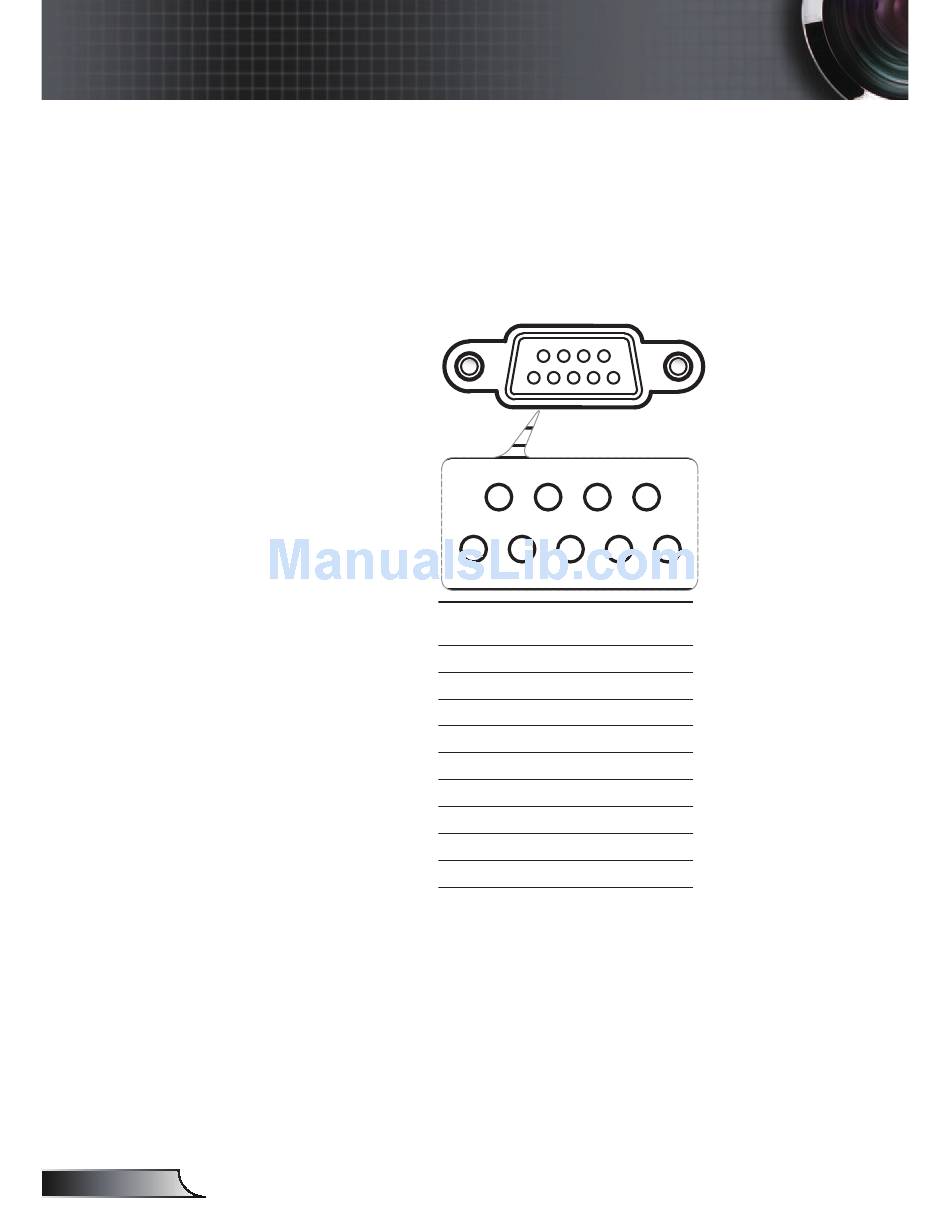

RS232 Pin Assignments
Pin no.
1
2
3
4
5
6
7
8
9
9
8
7
6
5
4
3
2
Spec.
(from projector side)
N/A
RXD
TXD
N/A
GND
N/A
N/A
N/A
N/A
1

Advertisement

loading

Related Manuals for Optoma TX612

Summary of Contents for Optoma TX612

  • Page 1: Rs232 Commands And Protocol Function List

    Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments Spec. Pin no. (from projector side) English...

  • Page 2: Rs232 Protocol Function List

    Appendices RS232 Protocol Function List --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Baud Rate : 9600 Note : There is a <CR> after all ASCII commands Data Bits: 8 0D is the HEX code for <CR> in ASCII code Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F...
  • Page 3 Volume n = 0 (a=30) ~ 10 (a=31 30) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma ~XX82 3 7E 30 30 38 32 20 33 0D Neutral --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX100 1 7E 30 30 31 30 30 20 31 0D...
