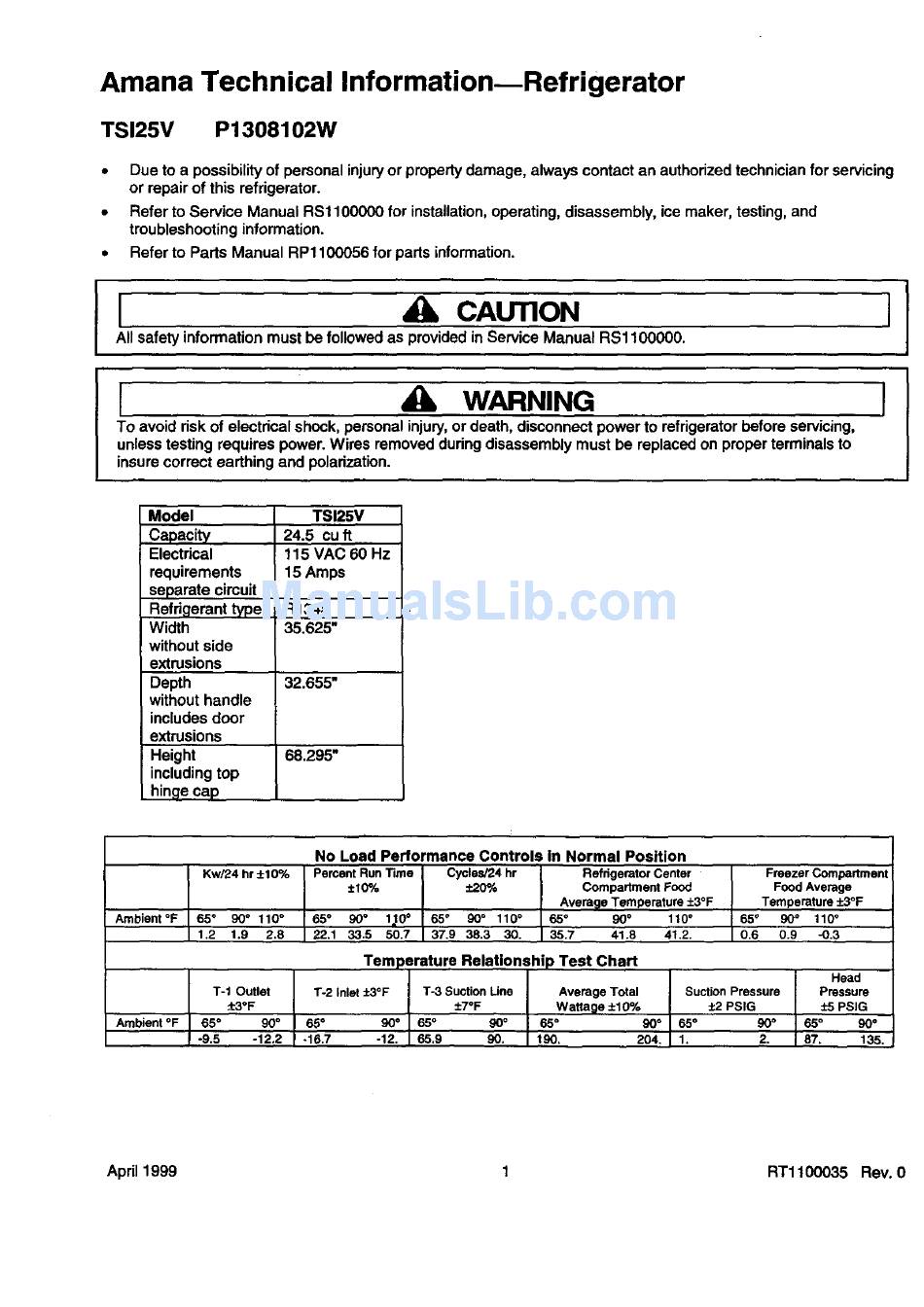

Amana TSI25V Technical Information

Amana Technical Information--Refrigerator
TSI25V P1308102W
Due to a possibility of personal injury or property damage, always contact an authorized technician for servicing
or repair of this refrigerator.
• Refer to Service Manual RS1100000 for installation, operating, disassembly, ice maker, testing, and
troubleshooting information.
• Refer to Parts Manual RP1100056 for parts information.
I CAUTION
All safety information must be followed as provided in Service Manual RS1100000.
t
I WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to refrigerator before servicing,
unless testing requires power. Wires removed during disassembly must be replaced on proper terminals to
insure correct earthing and polarization.
Model TSI25V
Capacity 24.5 cuft
Electrical 115 VAC 60 Hz
requirements 15 Amps
separate circuit
Refrigerant type R134a
Width 35.625"
without side
extrusions
Depth 32.655"
without handle
includes door
extrusions
Height 68.295"
including top
hinge cap
Ambient °F
Ambient °F
Kw/24 hr +10%
65 ° 90 ° 110 °
1,2 1.9 2.8
No Load Performance Controls In Normal Position
Percent Run Time Cycles/24 hr Refdgerator Center
+10% _ Compartment Food
Avera_le Temperature +3°F
65 ° 90" lm10° 65 _ 90 ° 110 ° 65 ° 90° 110 °
22.1 33,5 50.7 37.9 38.3 30. 35.7 41.8 41,2.
Freezer Compartment
Food Average
Temperature :P.3°F
65 ° 90° 110 °
I 0.6 0.9 -0.3
Temperature Relationshi ) Test Chart
T-I Outlet T-2 inlet +3°F
±3OF
65 ° 90 ° 65 ° 90 °
-9.5 -12.2 -16.7 -12.
T-3 Suction Line
+7OF
65 ° gO°
65.9 90.
Head
Average Total Suction Pressure Pressure
Wattage ±10% :L2 PSIG :t:5PSIG
65 ° 90 ° 65 ° 90° 65 ° 90 °
190. 204. 1. 2. 87. 135.
April1999 1 RTl100035 Rev. 0
