Agri-Fab 45-0362 Owner's Manual

42" rough cut trailmower
Hide thumbs Also See for 45-0362:

Advertisement

Quick Links

Download this manual

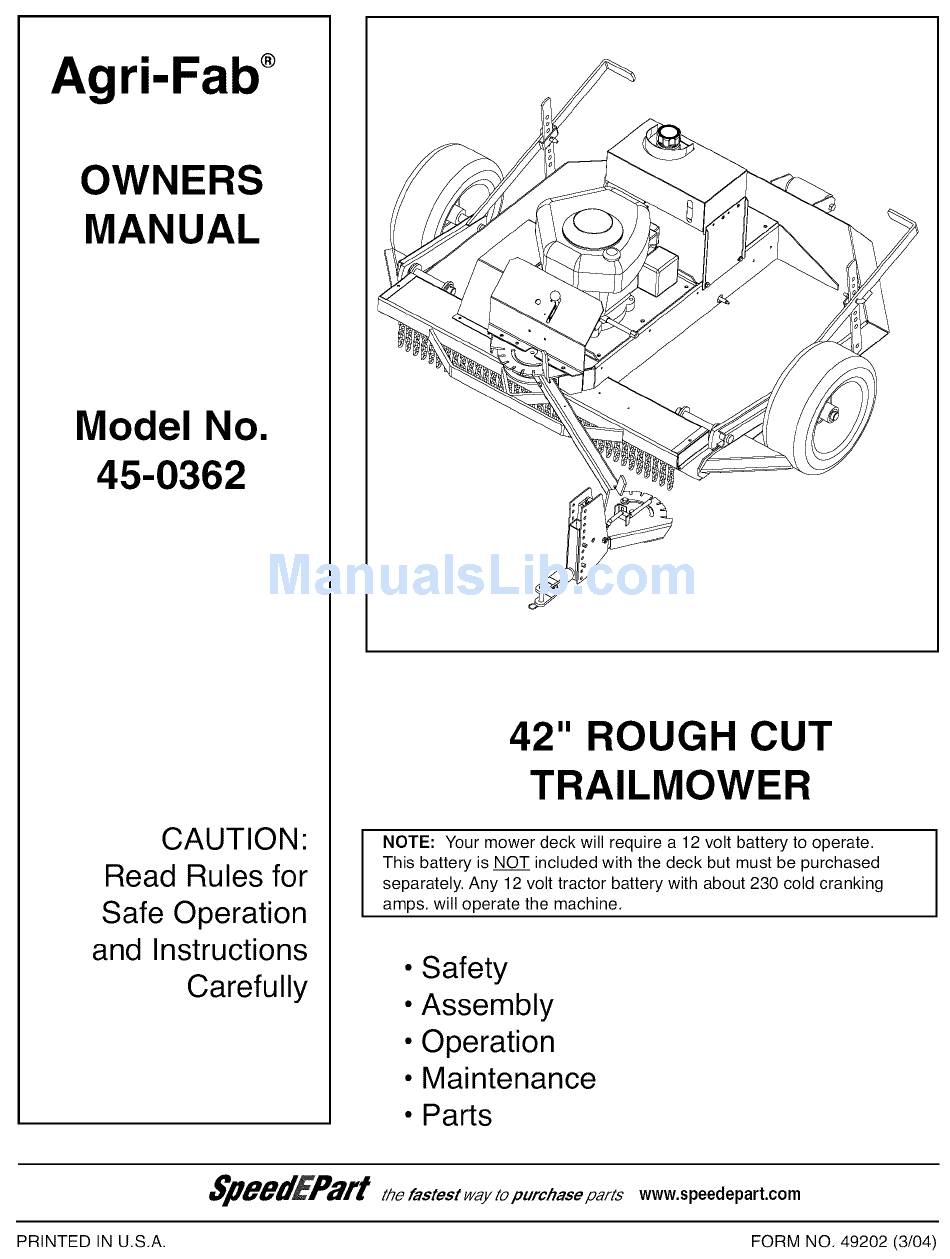

Agri-Fab ®
OWNERS
MANUAL
Model No.
45-0362
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
42" ROUGH CUT
TRAILMOWER
NOTE: Your mower deck will require a 12 volt battery to operate.
This battery is NOT included with the deck but must be purchased
separately. Any 12 volt tractor battery with about 230 cold cranking
amps. will operate the machine.
• Safety
• Assembly
• Operation
• Maintenance
• Parts
_/,/_'_'u_'rdr/
the fastest way to purchase parts
www.speedepart.corn
PRINTED IN U.S.A.
FORM NO. 49202 (3/04)
