Epson EB-435W Quick Setup Manual
Interactive unit
Hide thumbs
Also See for EB-435W:
- User manual (134 pages) ,
- Specifications (6 pages) ,
- Datasheet (2 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
ELPIU03
Interactive Unit
Quick Setup Guide
This product is an Interactive Unit for EB-435W/EB-430/EB-425W/EB-420/PowerLite 435W/PowerLite 430/
PowerLite 425W/PowerLite 420.
You can attach and use this product with a projector that has been mounted on a wall or hung from a ceiling.
This book explains how to mount the Interactive Unit when the projector is mounted on a wall using the wall
mount (ELPMB27). When hanging from a ceiling, see also the Installation Guide supplied with the attachment
plate (ELPPT04).

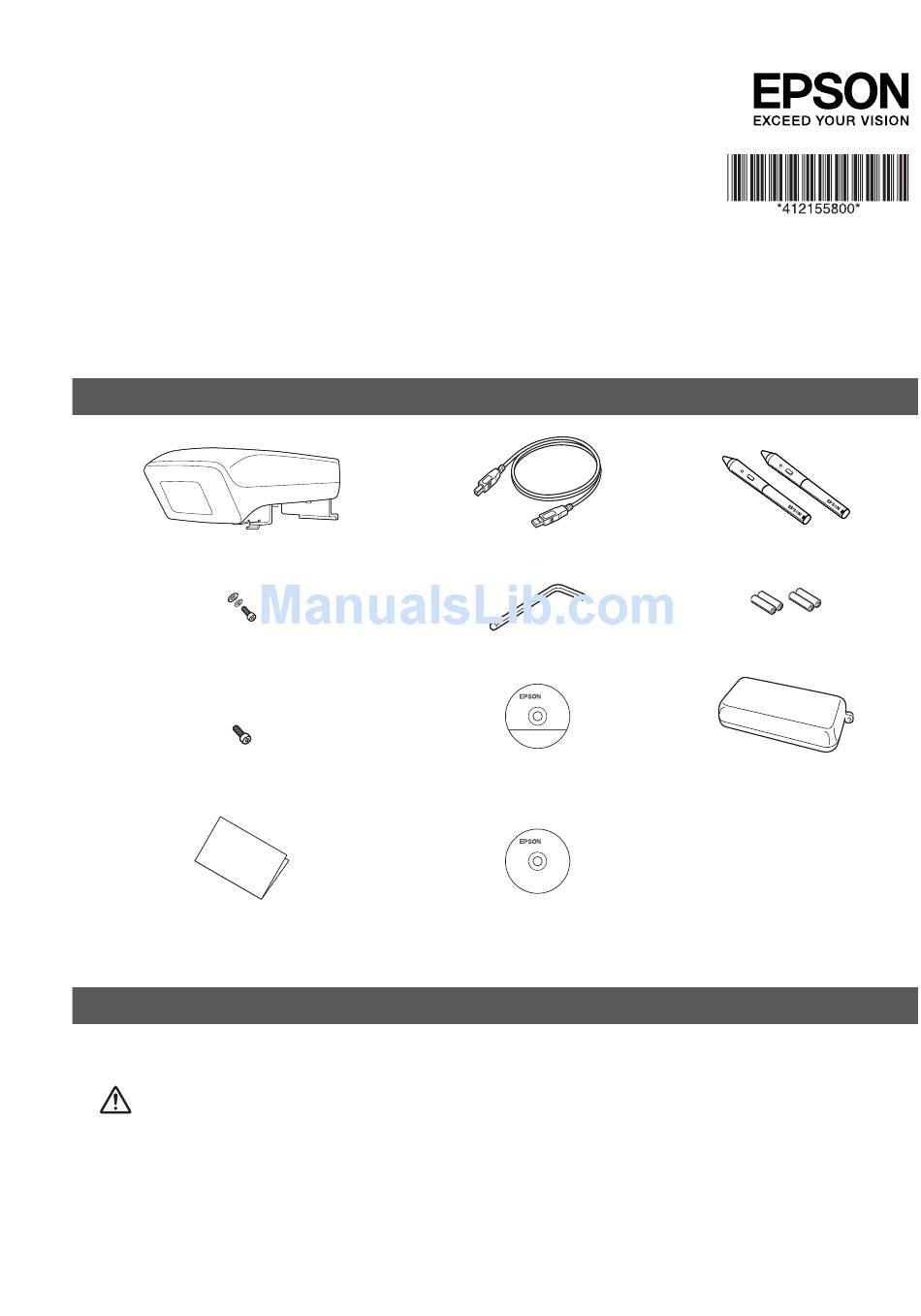

Included Items
Interactive Unit
M4 x 10 mm hexagon socket head cap bolt
with washer and spring washer
(x1)
M3 x 8 mm cross-head screw
(x1)
Quick Setup Guide (this guide)
Prepare other tools as necessary.
Installing the Interactive Unit
Before attaching the Interactive Unit to the projector, install the ELPMB27 wall mount. See the Installation
Manual supplied with ELPMB27, and complete all steps up to step 8.
Warning:
•
Attachment to the projector should be performed by qualifi ed technicians using only approved mounting
equipment.
•
Follow the steps below to attach this product. Incomplete or incorrect installation could cause the
product to fall and cause personal injury or property damage.
USB cable
M4 hexagonal wrench
Epson Projector Software for
Easy Interactive Function CD
Document CD-ROM
Easy Interactive Pen (x2)
AAA batteries (x4)
Pen tray
Advertisement
Related Manuals for Epson EB-435W
Summary of Contents for Epson EB-435W
-
Page 1: Quick Setup Guide
AAA batteries (x4) M4 x 10 mm hexagon socket head cap bolt with washer and spring washer (x1) M3 x 8 mm cross-head screw Epson Projector Software for Pen tray (x1) Easy Interactive Function CD Document CD-ROM Quick Setup Guide (this guide) Prepare other tools as necessary. - Page 2 Insert the Interactive Unit into the ELPMB27 attachment plate. Use the M4 x 10 mm bolt with washer and spring washer to secure the Interactive Unit. Remove the USB cover, and then connect the USB cable. Attach the USB cover, and then secure it using the M3 x 8 mm cross-head screw. Adjust the length of the USB cable.
-
Page 3: Connect To A Computer
By performing calibration, the computer can accurately detect the position of the Easy Interactive Pen on the projection surface. Launch the Easy Interactive Driver. For Windows Select Start - All Programs (or Programs ) - Epson Projector - Easy Interactive Driver . - Page 4 . Before using any software applications with the Interactive Unit, be http://www.epson.com sure to read the software license agreement. • For more information, see the User's Guide on the Document CD-ROM included with this product. Copyright © Seiko Epson Corporation 2011. All rights reserved. Printed in China.
