Summary of Contents for Husqvarna 6021P 917.384520

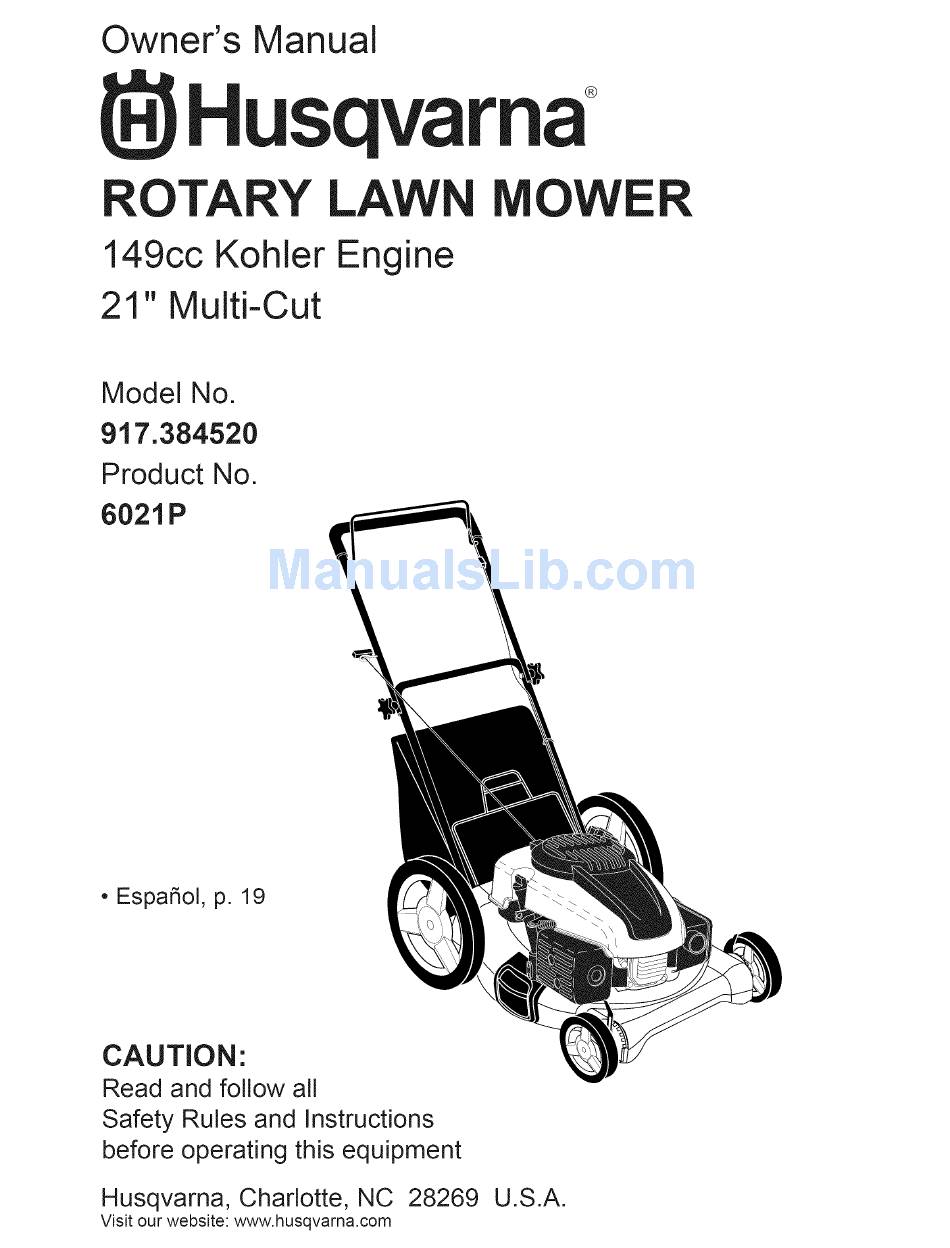

- Page 1 ROTARY LAWN MOWER 149cc Kohler Engine 21" Multi-Cut Model No. 917.384520 Product No. 6021P • Espafiol, p. 19 CAUTION'. Read and follow all Safety Rules and Instructions before operating this equipment U.S.A. Husqvarna, Charlotte, NC 28269 Visit our website: www.husqvama.com...
-
Page 2: General Operation
Maintenance Schedule ......Safety Rules .......... Maintenance ........14-16 Warranty ..........Product Specifications ......Service and Adjustments ....17-18 Assembly / Pre-Operation ......Storage ..........18-19 Operation ..........9-13 Troubleshooting ......... 19-20 Repair Parts ........38-45 IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing ob- jects. -
Page 3: Safe Handling
In the state of California the above is required by law (Section 4442 ofthe California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest Husqvarna other authorized service center (See the REPAIR PARTS section of this manual). - Page 4 Husqvarna will repair or replace at its discretion, any defective product or part covered by the Limited Warranty, free of charge at any authorized Husqvarna Servicing Dealer/Center...
-
Page 5: How To Obtain
Servicing Dealer/Center and arrange for pick-up or return of your unit after the repairs have been made. If you do not know the location of your nearest authorized Husqvarna Servicing Dealer, call Husqvarna, at 1-800=487=5951 during the hours of 8:00 AM to 8:00 PM Eastern Standard Time, or visit www.husqvarna.com. - Page 6 Commercial Rental Manufacturer's warranty LCT Engines on specific Snow Throwers & Tillers, warranty through Husqvarna. • * See reference 1 (b) of the warranty statement. RZ - Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network. EZ - One (1) Year...
-
Page 7: Lawn Mower
Record both serial number and date of purchase in space provided above. These accessories were available when this lawn mower was produced. They are not shipped with your mower. They are also available at most Husqvarna retailers and service centers. Some of these accessories may not apply to your lawn mower. -
Page 8: To Remove Lawn Mower From Carton
Read these instructions and this manual in Operator MOWING POSITION its entirety before you attempt to assemble control bar or operate your new lawn mower. IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. Your new lawn mower has been as- sembled at the factory with the excep- Upper tion of those parts left unassembled... - Page 9 KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your lawn mower or in literature supplied with the...
- Page 10 • To convert to mulching or discharging The operation of any lawn operation, remove grass catcher and SAFETY GLASSES mower can result in foreign close rear door. objects thrown into the eyes, which can result in severe Grass Pivot pins Rear eye damage.
-
Page 11: To Empty Grass Catcher
IMPORTANT: • Check oil level before each use. Add oil if needed. Fill to full line on dipstick. • Change the oil after every 25 hours of operation or each season. You may need to change the oil more often under dusty, dirty conditions. -
Page 12: To Stop Engine
MULCHING MOWING TiPS TO STOP ENGINE • To stop engine, release operator pres- IMPORTANT: For best performance, ence control bar. keep mower housing free of built-up grass and trash. See "CLEANING" in the Maintenance section of this manual. TO START ENGINE •... -
Page 13: Maintenance Schedule
MAINTENANCE EVERY EVERY BEFORE AFTER EVERY 25 HOURS BEFORE EAC H EAC H SCHEDULE USE USE HOURS STO RAG E OR SEASON HOURS Check for Loose Fasteners ,_ Clean / Inspect Grass Catcher * Check Tires Check Drive Wheels *** Clean Lawn Mower**** M Clean under Drive Cover *** O Check Drive Belt / Pulleys ***... - Page 14 IMPORTANT: Blade bolt is heat treated. LAWN MOWER If bolt needs replacing, replace only with Always observe safety rules when per- approved bolt shown in the Repair Parts forming any maintenance. section of this manual. TIRES TO SHARPEN BLADE . Keep tires free of gasoline, oil, or insect NOTE: We do not recommend sharp-...
- Page 15 1. Disconnect spark plug wire from spark ACAUTION: Petroleum solvents, such plug and place wire where it cannot as kerosene, are not to be used to clean come in contact with plug. cartridge. They may cause deterioration 2. Remove engineoil cap; lay aside on a of the cartridge.
- Page 16 6. Reassemble upper handle and all engine does not operate properly due parts removed from lower handle. to suspected carburetor problems, take your lawn mower to a Husqvarna or other SQUEEZE qualified service center for repair and/or TO ADJUST adjustment.
- Page 17 Immediately prepareyour lawn mowerfor Operator MOWING storage at the end of the season or if the POSITION control bar unit will not be used for 30 days or more. LAWN MOWER When lawn mower is to be stored for a period of time, clean it thoroughly, remove FOLD...
-
Page 18: Troubleshooting
Allow the engine to cool before to another. storing in any enclosure. TROUBLESHOOTING =See appropriate section in manual unless directed to a Husqvarna or other qualified Service Center. PROBLEM CAUSE CORRECTION Does not start 1. Dirty air filter. - Page 19 Excessive Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt. vibration Bent engine crankshaft. 2. Contact a Husqvarna other qualified service center. Starter rope Engine flywheel brake is on 1. Depress control bar to when control bar is released.
- Page 20 Reglas de Seguridad ........ 20-21 Programa de Mantenimiento ......Garantia ............ 22-24 Mantenimiento .......... 31-33 Especificaciones del Producto ....... Servicio y Adjustes ........Almacenamiento ........35-36 Montaje / Pre-Operaci6n ....... Operaci6n ..........27-30 Identificaci6n de problemas ...... 36-37 Partes de repuesto ........
- Page 21 HACER: • Nunca Ilenar contenedores en un vehiculo, en • Puede recortar a traves de la superficie de un cami6n o caravana con un forro de plastico. Colocar siempre los contenedores en el suelo la cuesta, nunca hacia arriba y hacia abajo. lejos de su vehiculo antes de Ilenar.
- Page 22 Dana, Hydro=Gear, Tuff=Torq proporcionan garantia para la transmisi6n/transeje al comprador final o a Husqvarna. Husqvarna asignara la garantia del fabricante de la transmisi6n/transeje o cualquier derecho sobre dicho elemento al comprador original de la unidad. Para obtener servicios para transmisiones/transejes...
- Page 23 Husqvarna autorizado mas cercano, Ilame a Husqvarna al 1-800- 487-5951 de 8:00 a.m. a 8:00 p.m., Hora Estandar del Este, o visite www.husqvarna.com. caso de requerir asistencia o si tiene preguntas con respecto a esta Garantia-Iimitada, puede comunicarse con nosotros al 800-487-5951 de 8:00 a.m.
- Page 24 Hydro-Gear. EZ - Un (1) a_o de garantia comercial, partes y mano de obra, con Husqvarna. Dos (2) ados de garantia al consumidor, partes y mano de obra, con red de distribuidores Hydro-Gear.
- Page 25 Estos accesorios estaban disponibles cuando se produjo la segadora. No son facilitados junto al cortacesped. Tambien estan disponibles en la mayoria de las tiendas de Husqvarna yen los centros de servicio. Algunos de estos accesorios tal vez no se apliquen a su segadora. RENDIMIENTO...
- Page 26 Lea estas instrucciones y este manual comple- Barra de POSICION tamente antes de tratar de montar u operar su que sxige la PARA segadora nueva. presencia det SEGAR IMPORTANTE: Este cortacesped viene SIN operador ACEITE O GASOLINA en el motor. Su segadora nueva ha sido montada en la fabrica con la excepci6n de aquellas partes que se dejaron sin montar pot razones de envio.
- Page 27 FAMILIARICESE CON SU SEGADORA LEA ESTE MANUAL DEL DUENO Y LAS REGLAS DE SEGURIDAD ANTES DE OPARAR SU SEGADORA. Compare las ilustraciones con su segadora para familiarizarse con la ubicaci6n de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden apareser sobre su segadora...
- Page 28 Para pasar a la operacidn de acolchamiento, La operaci6n de cualquier remover la recolectora de hierba y cerrar la segadora puede hacer que SEGURIDAD puerta trasera. salten objetos extra_os dentro de sus ojos, Io que puede producir Pasadordet Puerta Mango del da_os graves en estos.
- Page 29 PASOS SIMPLES DE RECORDAR AVlSO: El terraplen inicial del aceite requiere solamente 18 onzas debido al aceite residual CUANDO CONVIERTA SU SEGADORA en el motor de la prueba de calidad de 100% PARA ACOLCHAMIENTO del fabricante. AI cambiar el aceite puede La plancha acolchadora trasera instalada.
-
Page 30: Para Parar El Motor
PARA PARAR EL MOTOR CONSEJOS PARA SEGAR Y ACOL- • Para parar el motor, suelte la barra de con- CHAR troles que exigen la presencia del operador. IMPORTANTE: Para obtener el mejor rendimiento mantenga la caja de la segadora PARA HACER ARRANCAR EL MOTOR sin acumulacion de cesped y basura. -
Page 31: Mantenimiento
PROGRAMA ANTES DESPUES CADA CADA CADA ANTES DEL MANTENIMIENTO DE CADA DE CADA 25 HORAS O ALMACE- HORAS TEMPORADA HORAS NAMIENTO Revisar si hay Sujetadores Sueltos _V p Limpiar/Inspeccionar el Recogedor de Cesped * Controlar los NeumAticos Controlar las Ruedas Motrices *** Limpiar la Segadora... - Page 32 SEGADORA IMPORTANTE: El perno de la cuchilla es tratado a calo. Si es necesario sustituir los pernos, Siempre observe las reglas de seguridad cu- sustituirlos s61o con pernos aprobados mostrados ando haga el mantenimiento. en la secci6n Partesde Reparaci6n de este manual. LLANTAS PARA AFILAR LA CUCHILLA •...
- Page 33 Desconecte el alambre de la bujia y ,APRECAUCl6N: Los solventes de petrdleo, p6ngalo de modo que no pueda entrar en tales como el keroseno, no se deben usar para contacto con esta. limpiar el cartucho. Pueden producir el deteri- Remueva la tapa del dep6sito del aceite; oro de este.
- Page 34 PARA AJUSTE a problemas que se sospecha vienen del carburador, Ileve su segadora a contacto con Mango inferior su centro de servicio Husqvarna para repararla y/o ajustarla. IMPORTANTE: Nunca manipule el regulador Clavija de monta del motor, el que ha sido ajustado en la fabrica Puntal para la velocidad del motor adecuada.
- Page 35 Inmediatamente prepare su segadora para el Barra de control POSICION almacenamiento al final de cada temporada o si que exige PARA la unidad no se va a usar pot 30 dias o mas. presencia det SEGAR operador "_, SEGADORA Cuando se va a guardar la segadora por cierto DOBLAR periodo de tiempo, limpiela cuidadosamente, HACIA...
- Page 36 SOLUClON DE PROBLEMAS - Vea la secci6n apropiada en el manual amenos est6 dirigido a un centro de servico Husqvarna. CORRECCION CAUSA PROBLEMA No arranca Filtro de aire sucio. Limpie/cambie el filtro de aire. Sin combustible.
- Page 37 SOLUCION DE PROBLEMAS - Yea la secci6n apropiada en el manual amenos est_ dirigido a un centro de servico Husqvarna. PROBLEMA CAUSA CORRECClON Falta de Cuchilla desgastada, doblada 1. Ajuste a la posici6n de fuerza o suelta. "Corte mas alto."...
- Page 38 HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.384520 (PRODUCT NUMBER 6021 P) " 33 ..58 ¸ 73 48...
- Page 39 HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.384520 (PRODUCT NUMBER 6021P) PART PART PART DESCRiPTiON DESCRiPTiON DESCRiPTiON 194177X668 Control Bar 401624X004 Selector Spring, Rear 406712 21" Blade 197808 Upper Handle 87877 Selector Knob 420097 Blade Adapter 169708X498 Lower Handle...
- Page 40 KOHLER 4-CYCLE ENGINE MODEL NUMBER XT149-3311-ED CRANKSHAFT DECALS E_\\'O[ _,\+ _, WARNING...
- Page 41 KOHLER 4-CYCLE ENGINE MODEL NUMBER XT149=3311=ED CRANKSHAFT ENGINE CONTROLS PART PART DESCRIPTION QTY. QTY. DESCRIPTION 14 014 121-s 1 1407920-s Crankshaft Assembly Linkage, Governor 14 340 01-s Key, Woodruff (Auto Choke) 1703012-s 1410008-s Bearing, Ball Nut, Hex Flange (M6) 1412622-s Control Assembly, Fixed Speed DECALS...
- Page 42 KOHLER 4-CYCLE ENGINE MODEL NUMBER XT149-3311-ED o,.._.0°=,cA.,o. I.o0_,_ ,> FILTRATION...
- Page 43 KOHLER 4-CYCLE ENGINE MODEL NUMBER XT149=3311=ED OiL PAN/LUBRICATION BLOWER HOUSING & BAFFLES PART PART QTY. DESCRiPTiON QTY. DESCRiPTiON 25 086 145-s 1 Screw, Hex Flange (M6) 14 100 08-s Nut, Hex Flange (M6) 14 123 13-s Dipstick/Tube Assembly 14 096 99-s Cover, Engine (Includes Key Numbers 14 027 03-s...
- Page 44 KOHLER 4-CYCLE ENGINE MODEL NUMBER XT149=3311=ED...
- Page 45 KOHLER 4-CYCLE ENGINE MODEL NUMBER XT149=3311=ED EXHAUST CRANKCASE PART PART QTY. DESCRiPTiON QTY. DESCRIPTION 1410009-s 25 086 159-s 2 Nut, Hex Flange Lock Screw, Hex Flange (M6) 14 314 04-s 14 050 01-s Kit, Breather Filter Guard Assembly, Muffler 1406806-s Kit, Muffler Assembly (Includes Cover Gasket, (includes Gasket)
- Page 46 SERVICE NOTES...
- Page 47 SERVICE NOTES...
- Page 48 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances...
