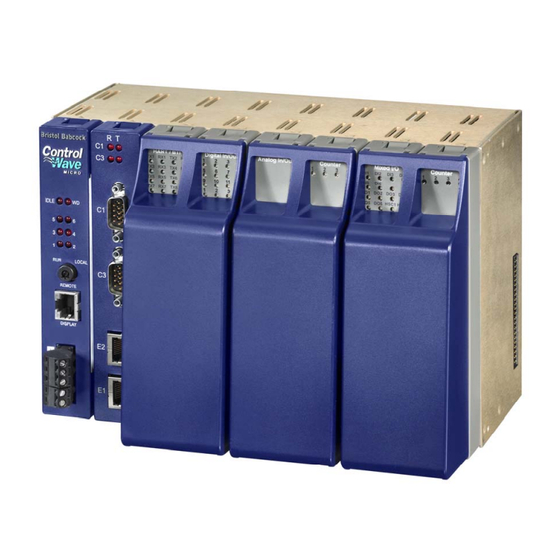

ControlWave LOOP POWER SUPPLY
PRODUCT INSTALLATION GUIDE
For the following ControlWave Series
Products: MICRO, EFM, GFC,
ExpressPAC & Express
www.EmersonProcess.com/Bristol
ControlWave Loop Power Supply

Advertisement

Table of Contents
loading

Related Manuals for Emerson ControlWave GFC

Summary of Contents for Emerson ControlWave GFC

  • Page 1 Product Information Package PIP-ControlWaveLS July, 2006 ControlWave LOOP POWER SUPPLY PRODUCT INSTALLATION GUIDE For the following ControlWave Series Products: MICRO, EFM, GFC, ExpressPAC & Express www.EmersonProcess.com/Bristol ControlWave Loop Power Supply...
  • Page 2 IMPORTANT! READ INSTRUCTIONS BEFORE STARTING! Be sure that these instructions are carefully read and understood before any operation is attempted. Improper use of this device in some applications may result in damage or injury. The user is urged to keep this book filed in a convenient location for future reference.
  • Page 3 Bristol warrants that goods described herein and manufactured by Bristol are free from defects in material and workmanship for one year from the date of shipment unless otherwise agreed to by Bristol in writing. Bristol warrants that goods repaired by it pursuant to the warranty are free from defects in material and workmanship for a period to the end of the original warranty or ninety (90) days from the date of delivery of repaired goods, whichever is longer.
  • Page 4 How to return material for Repair or Exchange Before a product can be returned to Bristol for repair, upgrade, exchange, or to verify proper operation, form (GBU 13.01) must be completed in order to obtain a RA (Return Authorization) number and thus ensure an optimal lead time. Completing the form is very important since the information permits the Bristol Repair Dept.
  • Page 5 Bristol Inc. Repair Authorization Form (Providing this information will permit Bristol Inc. to effectively and efficiently process your return. Completion is required to receive optimal lead time. Lack of information may result in increased lead times.) Date___________________ Standard Repair Practice is as follows: Variations to this is practice may be requested in the “Special Requests”...
  • Page 6 GET THE MOST FROM YOUR BRISTOL BABCOCK INSTRUMENT OR SYSTEM • Avoid Delays and problems in getting your system on-line • Minimize installation, start-up and maintenance costs. • Make the most effective use of our hardware and software. • Know your system. As you know, a well-trained staff is essential to your operation.
  • Page 7 A Few Words About Bristol Inc. For over 100 years, Bristol ® and control industry. Our product lines range from simple analog chart recorders, to sophisticated digital remote process controllers and flow computers, all the way to turnkey SCADA systems. Over the years, we have become a leading supplier to the electronic gas measurement, water purification, and wastewater treatment industries.
  • Page 8 software except for ControlWave and OpenEnterprise products, call (860) 945-2286. For technical questions about Network 3000 hardware, call (860) 945-2502. You can e-mail the Application Support Group at: bsupport@bristolbabcock.com The Application Support Group maintains an area on our web site for software updates and technical information.

  • Page 9: Table Of Contents

    PIP-ControlWaveLS ControlWave Loop Supply Part Numbers 400095-01-7, 721708-01-3 & 721708-02-1 TABLE OF CONTENTS Section Title Section 1 – LOOP SUPPLY INTRODUCTION GENERAL DESCRIPTION... 1 LOOP SUPPLY COMPONENT IDENTIFICATION... 1 Section 2 – LOOP SUPPLY INSTALLATION LOOP SUPPLY MOUNTING ... 4 LOOP SUPPLY WIRING ...

  • Page 10: Section 1 - Loop Supply Introduction

    Supply’s, i.e., those with the printed circuit board (PCB) secured to a Power Supply Back Plate Bracket and protected by a Power Supply Board Cover, may be mounted directly to a panel or to a 35mm DIN Rail while the PCB only version can be Snap Track mounted.

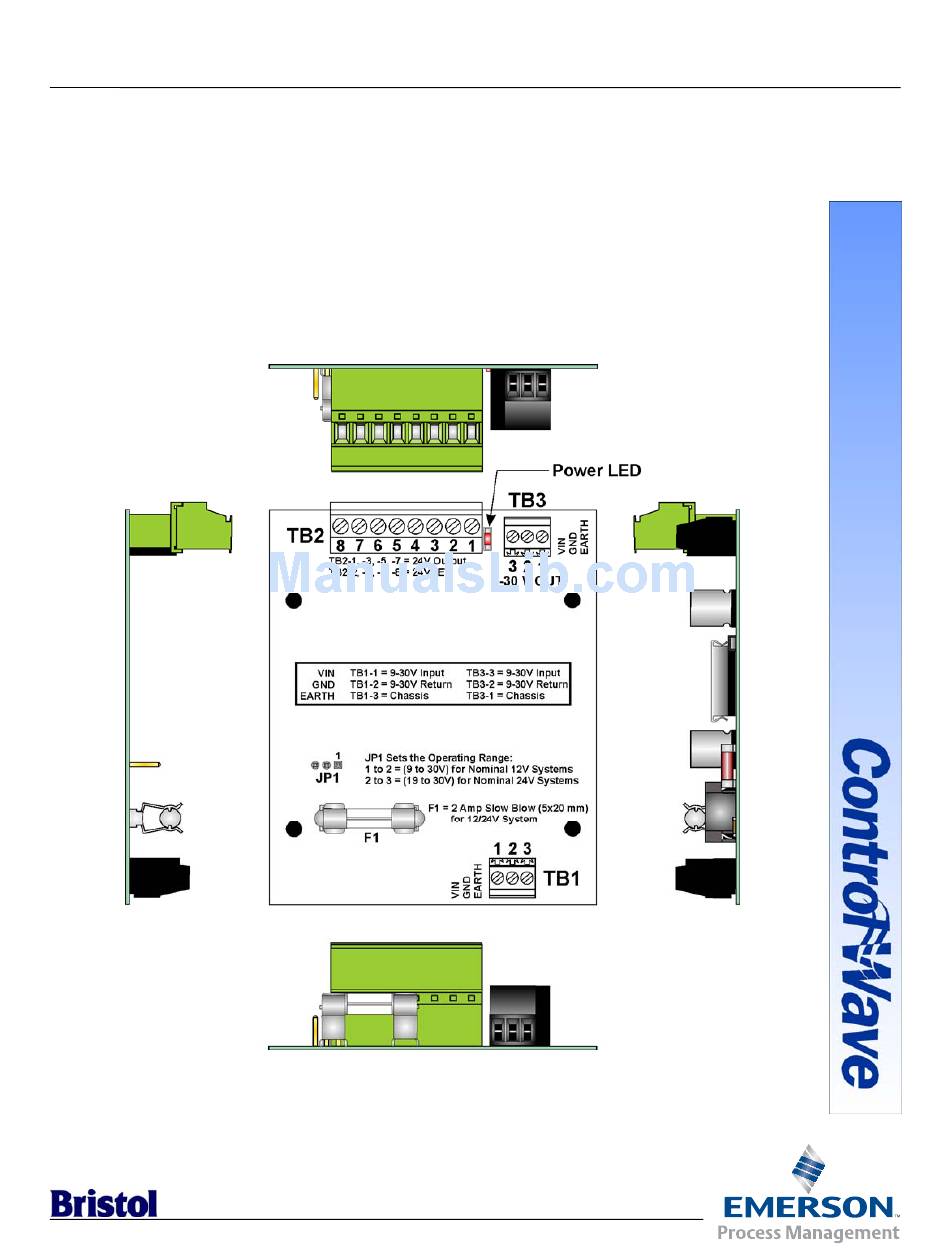

  • Page 11 Figure 1 - ControlWave Loop Supply Board Views & Component Identification Diagram Table 1 - Input/Pass-through Power Connectors – TB1 & TB3 Signal Name Pin # Pin # CHASSIS Page - 2 Description 9 to 30 +Vdc power Input or Non-fused Throughput 9-30 Vdc Return Input or Non-fused Throughput Chassis Ground...
