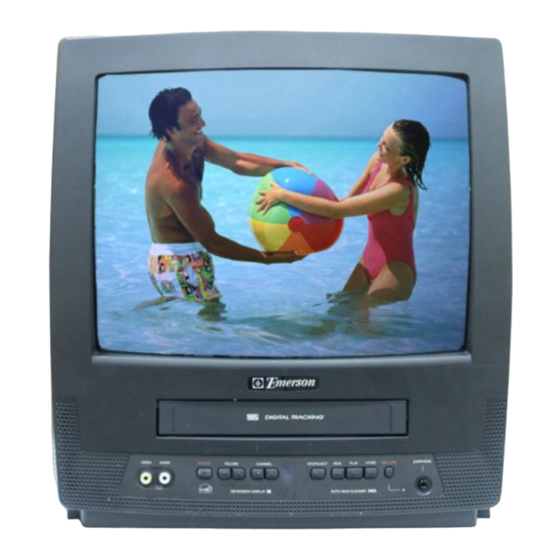

Emerson EWC1303A Owner's Manual

Emerson 13-inch color tv/vcr owner's manual ewc1303a
Hide thumbs Also See for EWC1303A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
OWNER'S
MANUAL
13-INCH COLOR TV/VCR
EWC1303A
This Owner's Manual is made of
recycled paper.
As an E
S
NERGY
TAR
Partner, our company has
determined that this product meets
the E
S
®
guidelines for
NERGY
TAR
energy efficiency. E
S
NERGY
TAR
is a U.S. registered mark.
®
If you need additional assistance for set-up or operating after
reading owner's manual, please call TOLL FREE : 1-800-256-2487.
®
Or visit our WEB SITE at http://www.funai-corp.com
Please read before using this equipment
"EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS
OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A."
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Advertisement

Table of Contents
loading

Related Manuals for Emerson EWC1303A

Summary of Contents for Emerson EWC1303A

  • Page 1 ® energy efficiency. E NERGY is a U.S. registered mark. “EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A.” INSTRUCCIONES EN ESPAÑOL INCLUIDAS. If you need additional assistance for set-up or operating after reading owner’s manual, please call TOLL FREE : 1-800-256-2487.

  • Page 2: C Important Safeguards

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
  • Page 3 EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECT RICAL CODE NEC - NATI O NAL EL ECTRI CAL CO DE S2 8 9 8 A 13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/VCR, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.

  • Page 4: C Precautions

    LOCATION For safe operation and satisfactory performance of your TV/VCR, keep the following in mind when selecting a place for its installation: • Shield it from direct sunlight and keep it away from sources of intense heat. • Avoid dusty or humid places. •...

  • Page 5: Table Of Contents

    C IMPORTANT SAFEGUARDS ... . .2 C PRECAUTIONS ......4 LOCATION .

  • Page 6: C Features

    • Infrared remote control • Bilingual on screen menu display selectable in English, Spanish, or French • This shows the elapsed record- Real time counter– ing or playback time in hours, minutes, and sec- onds. The “–” indication will appear when the tape is rewound further than the tape counter position “0:00:00”.

  • Page 7: Operating Controls And Functions

    OPERATING CONTROLS AND FUNCTIONS NOTE: • We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit.
  • Page 8 - REAR VIEW - Press to rewind the tape, or to view REW button– the picture rapidly in reverse during playback mode. (Rewind Search) button– • Press to select a mode from a particular menu. (for example: LANGUAGE or USER’S SET UP) Press to begin playback.

  • Page 9: C Preparation For Use

    PREPARATION FOR USE ANTENNA/CABLE CONNECTIONS From Cable System or Satellite Dish Satellite Box or OU T Cable Box (Not supplied) From Cable System 75-ohm Coaxial Cable (Not supplied) VHF/UHF COMBINED ANTENNA The VHF/UHF Rod Antenna (supplied) is detach- able. Insert the stem of the antenna into the hole on the upper-back portion of the TV/VCR.

  • Page 10: External Input Mode

    TO RECORD A SCRAMBLED/UNSCRAMBLED CHANNEL 1. Set the TV/VCR channel selector to the output channel of the Cable Converter Box or Satellite Box. (Ex. CH3) 2. Select the channel to record from your Cable Converter Box or Satellite Box. EXTERNAL INPUT MODE When using an external input signal (another VCR or camcorder), connect the player’s audio/video output cables to the AUDIO IN/ VIDEO IN jacks of your...

  • Page 11: Manual Clock Setting

    MANUAL CLOCK SETTING Make sure ... • The TV/VCR is turned on. In the example below, the clock is to be set to: DATE May 6th, 2004 SETTING TIME 5:40PM Select “SETTING CLOCK” Press the MENU button on the remote control. Press the PLAY/K or STOP/L button to point to “SETTING CLOCK”.

  • Page 12: Daylight-Saving Time

    Select “SETTING CLOCK” Press the MENU button on the remote control. Press the PLAY/K or STOP/L but- ton to select “SETTING CLOCK”. Press the F.FWD/B button to enter “SETTING CLOCK” menu. Set “AUTO CLOCK” to [ON] Press the F.FWD/B button until “AUTO CLOCK [ON]”...

  • Page 13: Channel Set Up

    CHANNEL SET UP You can program the tuner to scan all the channels you receive in your area. NOTE: Channel setup is NOT needed when connect- ed to a cable box or satellite box. Just select the TV/VCR channel selector to the output channel of the cable box or satellite box (Ex CH3).

  • Page 14: C Tv Operation

    WATCHING A TV PROGRAM Turn on the TV/VCR Press the POWER button to turn on the TV/VCR. Select the channel number Press the CHANNEL K or L button to select your desired channel number or press the number buttons on the remote control. Remember: If the TV/VCR is connected to a cable box or satellite box, the TV/VCR must be on CH3 or CH4, then the channel to be viewed must be selected...

  • Page 15: Closed Caption System

    CLOSED CAPTION SYSTEM You can view specially labeled (cc) TV programs, movies, news, pre-recorded tapes with either a dia- logue caption or text display. By choosing the caption mode, you CAPTION mode: can watch dramas, movies and news while captioning the dialogues and the contents of news.

  • Page 16: Mpaa Rating Set Up

    Select your desired item Press the PLAY/K or STOP/L button to point to your desired item. Then, press the F.FWD/B button to select [BLOCK] or [VIEW]. • When you select the rating cate- gory and turn it [BLOCK], the higher rating will turn [BLOCK] automatically.

  • Page 17: C Playback

    This TV/VCR will operate with any cassette that has the recommend the use of high-quality tapes. Do not use poor quality or damaged tapes. INSERTING A CASSETTE Insert the cassette in the direction as shown. Push in gently, but continuously, on the center-back of the cassette until it is drawn into the TV/VCR.

  • Page 18: Search

    SEARCH PICTURE SEARCH This feature is very useful in finding or skipping over a particular scene on a tape. In this mode, the sound will be muted. 1)You may view a video tape at a high speed in either a forward or reverse direction by pressing the F.FWD or REW button during playback.

  • Page 19: Picture Controls

    NOISE CANCEL (in the Still mode) This feature allows you to reposition or reduce the noise lines of a still picture.Press the PAUSE/STILL button so that the noise lines change position on the screen so you can see the picture in its entirety with- out distracting noise lines.

  • Page 20: Normal Recording

    Make sure ... • TV/VCR power must be turned on. • Insert a cassette tape with its erase prevention tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.) NOTE: This unit will ONLY record and view the same channel.

  • Page 21: Timer Recording

    Begin OTR Press the REC/OTR button on the TV/VCR as many times as needed. The recording length will be deter- mined by the number of times you press the REC/OTR button. Each additional push will increase the recording time by 30 minutes.

  • Page 22: Timer Program Extension

    For every day recording : To record a TV program at the same time on the same channel every day. (Example: Monday through Sunday) Press the STOP/L (down) button until “EVRY DAY” appears. Then, press the F.FWD/B but- ton. For weekly recording : To record a TV program at the same time on the same channel every week.

  • Page 23: Hints For Automatic Timer

    TO CANCEL AN AUTOMATIC TIMER RECORDING • After setting a program; 1)Press the POWER button. 2)Repeat steps [1] - [2] on page 21 and select a program you want to cancel. 3)Press the T-PROG. CLEAR button. 4)Press the MENU button on the remote control to return to TV mode.

  • Page 24: Sleep Timer

    Set wake up time Press the PLAY/K or STOP/L but- ton until to point to “TIME”. Press the F.FWD/B or REW/s button until your desired wake up time appears. Each additional push will increase (or decrease) the time by 10 minutes. Exit the Wake Up Timer setting Press the MENU button on the remote control to return to TV mode.

  • Page 25: C On Screen Display

    To check the Counter, Clock and Channel number on the TV screen, press the DISPLAY button on the remote control. Each time you press the DISPLAY button on the remote control, the TV screen will change as follows: WHEN THE CLOSED CAPTION MODE IS OFF: •...

  • Page 26: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If you have followed the instructions contained in this manual and have difficulty in operating your TV/VCR, locate the PROBLEM in the left column below. Check the corresponding CORRECTIVE ACTION column to remedy the problem. PROBLEM No power. No picture and sound.

  • Page 27: C Specifications

    GENERAL SPECIFICATIONS CRT : 13 inch in-line gun, 90˚ deflection tube Television system : NTSC-M Closed caption system :§15.119/FCC Video Heads : Rotary two-head Tape width : 1/2 inch Tape speed SP : 33.40mm/sec. LP : 16.67mm/sec. SLP : 11.12mm/sec. Tuner channel TV VHF Low : #2~#6...

  • Page 28: Sus Funciones

    CONTROLES DE OPERACIÓN Y SUS FUNCIONES NOTA: No recomendamos utilizar mandos a distancia universales. No todas las funciones pueden ser controladas mediante un mando a distancia universal. Si decide utilizar un mando a distancia universal con esta unidad, tenga en cuenta que con el número de código dado tal vez no se pueda controlar la unidad.
  • Page 29 • Púlselo para introducir dígitos cuando establez- ca un programa. (Por ejemplo: Para ajustar el reloj o establecer un programa de temporizador) 10 Botón de avance rápido (F.FWD)– Púlselo para avanzar rápidamente la cinta, o para ver la imagen en avance rápido durante el modo de reproducción.

  • Page 30: Conexiones De Antena/Cable

    Desde el cable coaxil o caja de emisiones vía Caja de CATV satélite de 75 ohm del o caja de emi- sistema de Cable siones vía satélite (no incluído) O UT Desde el sistema de Cable Cable coaxil de 75 ohm (no incluído) MODO DE ENTRADA EXTERNA Cuando utilice una señal de entrada externa (otra videograbadora o una videocámara), conecte los cables...

  • Page 31: Canal Preparado

    AJUSTE DE CANAL Puede programar el sintonizador para buscar todos los canales que recibe en su localidad. NOTA: El canal preparado NO es necesario cuando esté conectado a una caja de cable o caja de satélite. Sólo tiene que seleccionar con el selector de canal del televisor/videograbadora al canal de salida de la caja de cabe o caja de satélite (por ejemplo el canal CH3).

  • Page 32: Limited Warranty

    FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workman- ship as follows: DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
