Edelbrock 7577 Installation Instructions

PLEASE study these instructions carefully before beginning this installation. Most installations can be accomplished with common tools and
procedures. However, you should be familiar with and comfortable working on your vehicle. If you do not feel comfortable performing this installation,
it is recommended to have the installation completed by a qualified mechanic. If you have any questions, please call our Technical Hotline at:
1-800-416-8628, 7:00 am - 5:00 pm, Pacific Standard Time, Monday through Friday or e-mail us at Edelbrock@Edelbrock.com.
IMPORTANT NOTE: Proper installation is the responsibility of the installer. Improper installation
will void your warranty and may result in poor performance and engine or vehicle damage.
DESCRIPTION: The Edelbrock Performer RPM Air-Gap manifold is a carbureted intake manifold that has been designed specifically for 5.2L & 5.9L
Chrysler Magnum engines. The manifold accepts carburetors only, and will not function with the factory fuel injection system. It is intended for use
in engine swap applications in which a Magnum engine is being used in an early vehicle application. The Performer RPM Air-Gap manifold provides
good low rpm response for street performance vehicles while providing increases in horsepower and torque up to 6500 RPM. When used with any
mix of aftermarket equipment designed for this operating range, the performance increases will be even greater.
KIT CONTENTS:
❑ 1 1" Barb x 3/4" NPT Adapter Fitting
• ACCESSORIES & INSTALLATION ITEMS: Major recommendations are listed below. See our catalog for details. To order a catalog, call (800)
FUN-TEAM, or visit www.edelbrock.com.
• EGR SYSTEMS: Intake manifold will not accept stock EGR (Exhaust Gas Recirculation) equipment. EGR systems are used on most 1972 and later
model vehicles. Check local laws for requirements.
• CARBURETOR RECOMMENDATIONS:
CARBURETOR
Performer #1407 (750 cfm)
Performer #1411 (750 cfm)
Performer #1412 (800 cfm)
Performer #1413 (800 cfm)
Thunder Series #1812 (800 cfm)
Thunder Series #1813 (800 cfm)
NOTES: Carburetor size (CFM) should be selected based on your specific engine combination. Consult your engine builder or contact our Technical
Hotline at: 1-800-416-8628 for assistance. Carburetors require a #8008 or #8024 stud, washer and nut kit; determine proper length based on
gasket thickness and your accessory mounting requirements (See catalog for details). If a manual choke Performer Series Carburetor is used and
electric choke is desired later on, Performer Series carburetors can be converted to electric choke using Electric Choke Kit #1478. Manual choke
Thunder Series carburetors CAN NOT be converted to manual choke.
• THROTTLE BRACKETS: Use Mopar Performance #P4876850 throttle cable bracket and #P4876313 throttle return spring bracket. The throttle
and kickdown bracket on some vehicles may require modification to fit.
• GASKETS: Do not use competition-style intake gaskets for this street manifold. Due to material deterioration over time, internal leakage of
vacuum, oil, and coolant may occur.
INTAKE MANIFOLD
7577
NOTE: To ensure maximum performance and a proper seal, Edelbrock gaskets which are
specifically designed and manufactured for use with Edelbrock parts must be used.
Catalog #7577
Rev. 7/06 - RS/mc
®
CHOKE TYPE
Manual
Electric
Manual
Electric
Manual
Electric
REFERENCE
(None)

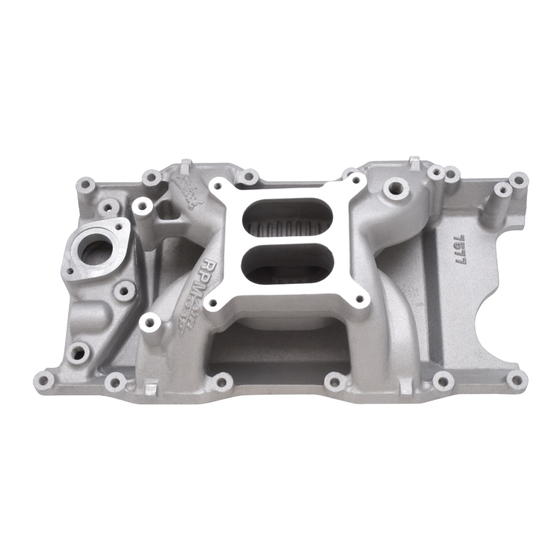

PERFORMER RPM AIR-GAP INTAKE MANIFOLD
For Chrysler Magnum 5.2L & 5.9L V8
PARTS REQUIRED FOR INSTALLATION
#1493 or 1847 throttle plate kit, #1483 or 1844 throttle lever adapter
#1493 or 1847 throttle plate kit, #1483 or 1844 throttle lever adapter
#1493 or 1847 throttle plate kit, #1483 or 1844 throttle lever adapter
#1493 or 1847 throttle plate kit, #1483 or 1844 throttle lever adapter
#1493 or 1847 throttle plate kit, #1483 or 1844 throttle lever adapter
#1493 or 1847 throttle plate kit, #1483 or 1844 throttle lever adapter
RECOMMENDED GASKET
Edelbrock #7277 Port: 1.18" x 2.18", .060" Thickness
Page 1 of 2
Catalog # 7577

INSTALLATION INSTRUCTIONS

©2006 Edelbrock Corporation
Brochure #63-0326
