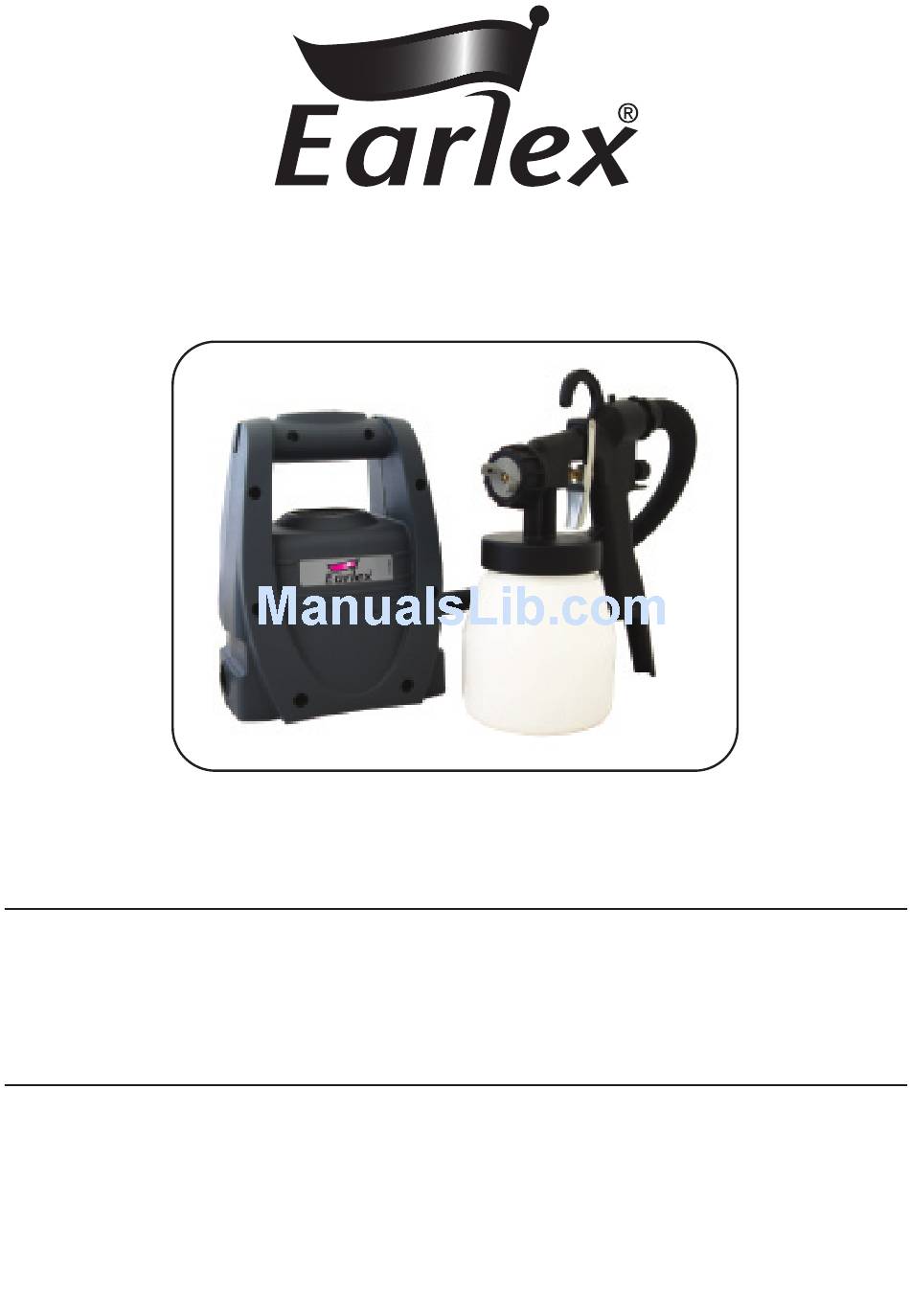

HVLP PAINT SPRAYING KIT
OPERATING INSTRUCTIONS
Thank you for purchasing the Earlex Spray System kit.
This is a highly versatile spray kit and can be used on a variety of applications.
BEFORE USE - PLEASE READ THESE SAFETY & OPERATING INSTRUCTIONS.
Please retain for future reference
INSTRUCTIONS D'UTILISATION
Nous vous remercions d'avoir acheté le système de peinture basse pression de Earlex.
Il s'agit d'un appareil HVLP (haut volume d'air, basse pression de peinture) extrêmement polyvalent dont
vous pouvez vous servir pour une grande variété d'applications.
AVANT UTILISATION - VEUILLEZ LIRE LES INSTRUCTIONS POUR L'EMPLOI ET LA SÉCURITÉ.
Veuillez conserver pour référence ultérieure
INSTRUCCIONES DE FUNCIONAMIENTO
Gracias por adquirir el kit Earlex Spray System.
Éste es un kit de pintado aerográfico altamente versátil que puede utilizarse en gran
variedad de aplicaciones.
ANTES DEL USO - LEA ESTAS INSTRUCCIONES DE SEGURIDAD Y FUNCIONAMIENTO.
Conserve estas instrucciones para su futura consulta
INSTRUCCIONES DE SEGURIDAD
¡ADVERTENCIA! RIESGO DE INCENDIO Y EXPLOSIÓN.

Advertisement

Table of Contents
loading

Related Manuals for Earlex HV1900

Summary of Contents for Earlex HV1900

  • Page 1 Please retain for future reference INSTRUCTIONS D'UTILISATION Nous vous remercions d'avoir acheté le système de peinture basse pression de Earlex. Il s'agit d'un appareil HVLP (haut volume d'air, basse pression de peinture) extrêmement polyvalent dont vous pouvez vous servir pour une grande variété d'applications.

  • Page 2: Safety Instructions

    EXTENSION CORDS Your Earlex HVLP is supplied with a power cord that is 6 feet long. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.

  • Page 3: Parts List

    EXPLODED PARTS VIEW PARTS LIST Air Cap Ring L0215 Paint Container Seal L0335 Spray Direction Plate L0206 Paint Feed Tube L0214 Fluid Tip (0.08”)(2mm) L0237 Paint Container (Clear) L0201 Fluid Tip Seal L0211 Fluid Needle (0.08”)(2mm) L0236 Hose Assembly L0543 Fluid Adjusting Screw L0210 Viscosity Cup...
  • Page 4 INTRODUCTION HVLP stands for High Volume, Low Pressure. This is a type of spraying that allows you to spray accurately but without all the overspray that occurs with the high pressure tank type equipment. In fact, in some parts of the world the high pressure systems are banned by law on environmental grounds and HVLP type systems are the only alternative for professional type spraying.

  • Page 5: Operation

    OPERATION Fill the paint container with the material to be sprayed. DO NOT OVERFILL above MAX level indicator. Push the fluid tube firmly into the base of the spray gun body. Screw the container onto the gun body tightly. Place the motor unit onto a clean surface, free from any loose debris or liquids. Connect the hose to the back of the spray gun.

  • Page 6: Helpful Hints

    HELPFUL HINTS 1. Evenly control the speed of movement of the spray gun. A fast speed will give a thin coat and a slow speed will give a thick coat. 2. Only apply one coat at a time. If an additional coat is required, follow the paint manufacturer’s instructions for drying times.

  • Page 7: Troubleshooting

    HV1900 UNIT The HV1900 unit requires minimal maintenance. TROUBLE SHOOTING (18) PLEASE NOTE: We have done all we can to ensure that used correctly and according to these instructions, this spray gun will give long and trouble free life. We accept no responsibility for damage caused by the use of incorrect or unsuitable substances, paints or fluids which have not been thinned correctly or are unsuitable for the surfaces to which they are applied, health hazards arising from lack of ventilation when working in confined spaces or failure of the equipment due to inadequate cleaning of the components after use.
  • Page 8 This product is warranted for a period of 24 months against faulty manufacture and materials. It is not warranted for industrial or rental purposes. This limited warranty does not affect your statutory rights. Earlex Inc. will accept no responsibility for the use of this product if used for any purposes other than detailed herein.
