Desa HFL200 SERIES Installation Instructions

IMPORTANT: Read entire instruction sheet
before installing brick liner.
This brick liner accessory is for use in
Series 3 dual burner compact vent-free gas
fireplace systems. Do not use brick liner
accessory in any other fireplace models.
The Brick Liner Kit contains the following:

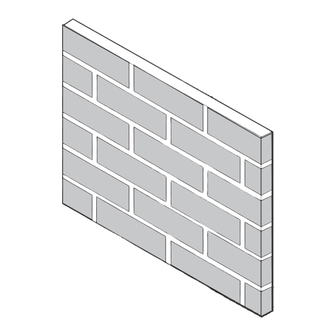

• 1 - Rear Firebrick Panel
• 2 - Side Firebrick Panels
• 2 - Retainer Brackets
• 2 - #10 Screws
Tools required:
• Phillips Screwdriver
If any of these parts are missing or damaged,
contact dealer where you purchased this kit. If
they cannot supply original replacement parts,
either contact your nearest Parts Central or call
DESA Heating Products at 1-866-672-6040 for
information.
HFL200 SERIES BRICK LINER KIT

INSTALLATION INSTRUCTIONS

Save for future reference.
For more information, visit www.desatech.com
IMPORTANT: Always handle firebrick panels
with two hands.
WARNING: Turn off, unplug,
and let fireplace cool before
installing brick liner. Only a
qualified service person should
service and repair fireplace.
1. To remove screen, lift screen up off the screws
in front of fireplace (see Figure 1).
Screws for
Mounting
Screen
Figure 1 - Removing Fireplace Screen
