Desa 102865-01 Installation Instructions

Installation Instructions
Note: Firebox model may vary from that shown in Figure 2.
1. Remove packaging from three pieces of trim.
2. Locate the two adjusting plates with set screws and two shims
in the hardware packet.
If any of these pieces are missing or damaged, contact the dealer
where you purchased this kit or DESA at 1-866-672-6040 for
referral information. You can also visit DESAʼs technical service
web site at
www.desatech.com
3. Align shim under adjusting plate as shown in Figure 1.
4. Slide one end of adjusting plate/shim in slot on mitered edge
of top trim (see Figure 1).
5. Slide other end of adjusting plate/shim in slot on mitered edge
of side trim (see Figure 1).
Set Screws
Side Trim
Adjusting
Plate
Mitered Edge
Slot
TRIM KIT
INSTALLATION INSTRUCTIONS
Includes Hardware Kit 102865-01
.
Top Trim
Shim
Slot
Assembled
Trim

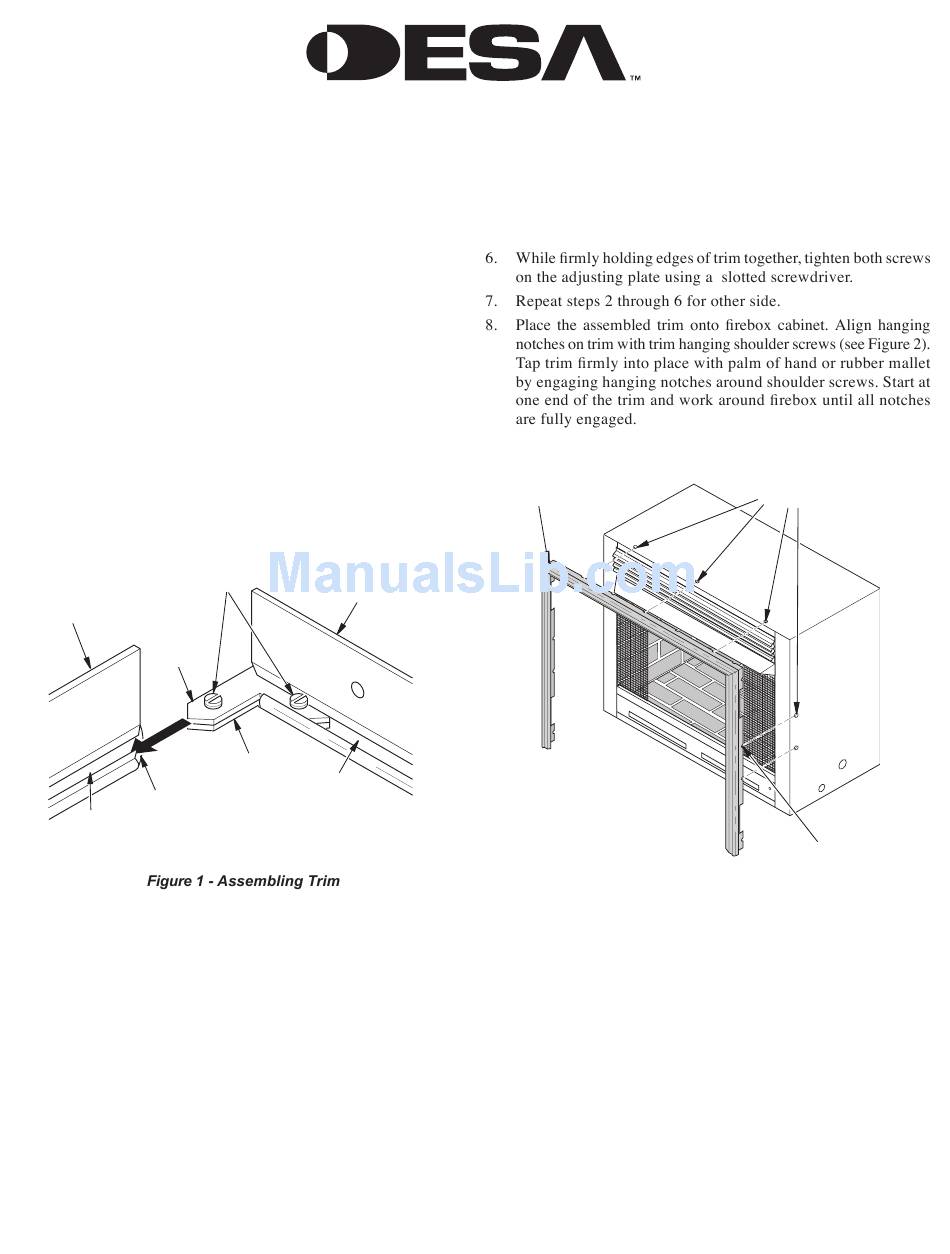

Figure 2 - Attaching Trim to Firebox
www.desatech.com
Trim Hanging
Shoulder Screw
Locations
Hanging Notches
on Trim
