D-Link DWL-AG132 Install Manual

D-Link DWL-AG132 Install Manual

Wireless 108ag usb adapter
Hide thumbs Also See for DWL-AG132:

Advertisement

Quick Links

Download this manual See also: Installation Manual, Manual
DWL-AG700AP Install Guide

Advertisement

loading

Related Manuals for D-Link DWL-AG132

Summary of Contents for D-Link DWL-AG132

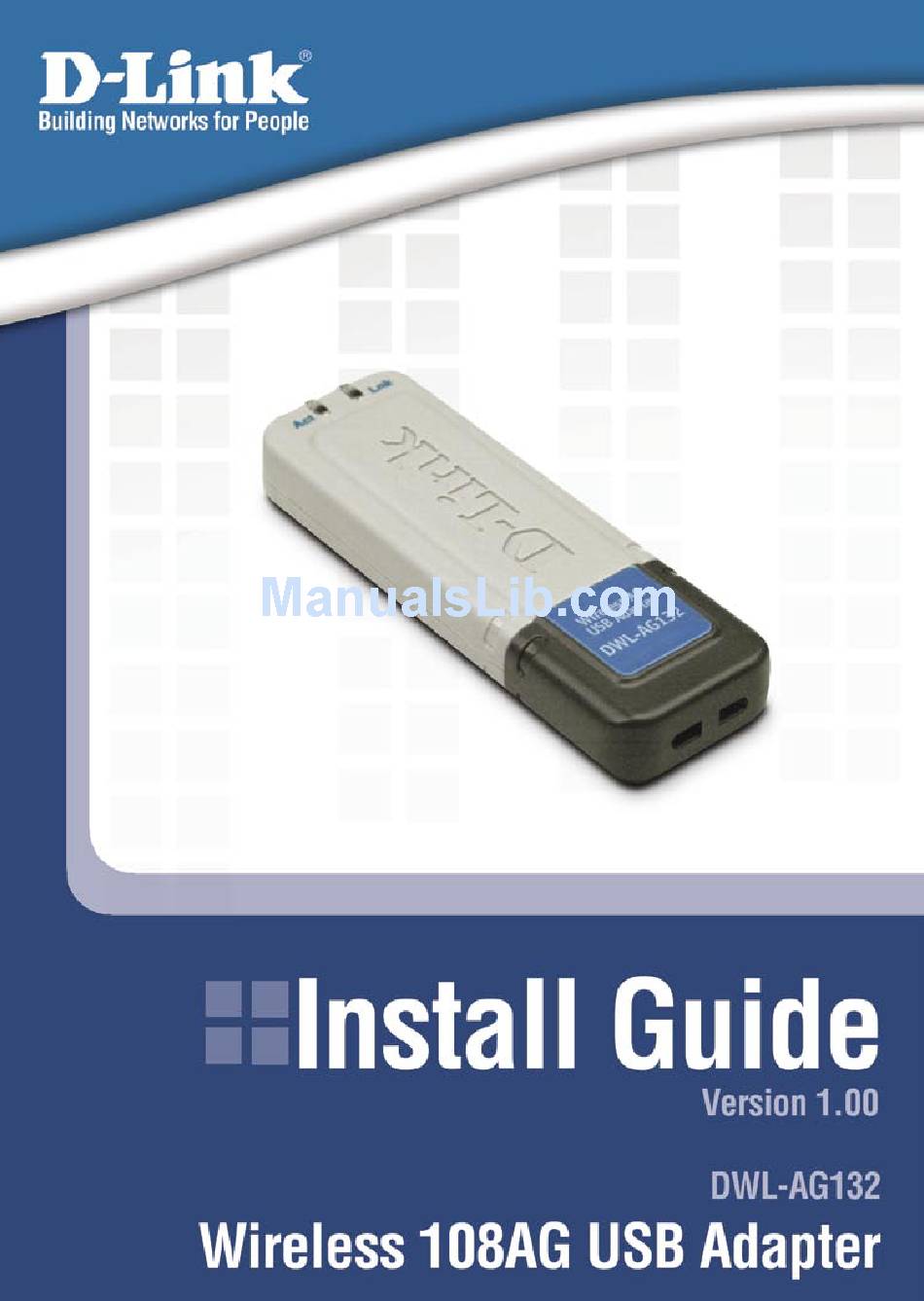

  • Page 1 DWL-AG700AP Install Guide...

  • Page 2: Package Contents

    DWL-AG700AP Install Guide DWL-AG132 Install Guide Contacting Technical Support System Requirements Package Contents D-Link AirPremier AG DWL-AG132 Wireless AG USB 2.0 Adapter Manual on CD Cradle D-Link Systems, Inc.
  • Page 3 The step-by-step instructions that follow are shown in Windows XP. The steps and screens are similar for the other Windows operating systems. Turn on the computer and insert the D-Link AirPremier AG ® DWL-AG132 Driver CD in the CD-ROM drive. The installation Wizard will automatically appear.
  • Page 4 Installing the Drivers DWL-AG132 Install Guide Using the Setup Wizard DWL-AG700AP Click Next Click ‘Yes, I want to restart my computer now.’ Click Finish You have completed the installation of the drivers! D-Link Systems, Inc.
  • Page 5 Connecting the DWL-AG132 DWL-AG132 Install Guide Link/Power LED Link - indicates that the DWL-AG132 is properly installed. A c t i v i t y - b l i n k s when data is being transmitted through the USB Port - used to connect the DWL- wireless connection.
  • Page 6 The Found New Hardware Wizard DWL-AG132 Install Guide Using the Setup Wizard DWL-AG700AP After connecting the DWL-AG132, the Found New Hardware Wizard (Windows XP) screen will appear: Select Install the software automatically (Recommended). Click Next Click Continue Anyway. D-Link Systems, Inc.
  • Page 7 The Found New Hardware Wizard The Found New Hardware Wizard DWL-AG132 Install Guide DWL-AG132 Select Install the software automatically (Recommended). Click Next Click Continue Anyway. D-Link AirPremier AG DWL-AG132 USB Adapter Click Finish to complete the installation. D-Link Systems, Inc.
  • Page 8 Your Installation is Complete! DWL-AG132 Install Guide DWL-AG132 After completing the Found New Hardware Wizard, the D-Link AirPremier AG DWL-AG132 Configuration Utility will automatically start and the utility icon will appear in the bottom right hand corner of the desktop screen (system tray).
  • Page 9 DWL-AG132 Install Guide Appendix A For Windows XP, if you wish to use the AirPremier AG utility, please do the following: Click the XP networking icon to use the Zero Configuration Wireless Click Advanced. Uncheck Use Windows to configure my wireless network settings.
  • Page 10 DWL-AG132 Install Guide Appendix B Status: Displays the MAC Address of the access point that is associated with the DWL-AG132. SSID: Displays the Service Set Indentifier assigned to the wireless network. Frequency: Displays the current frequency used by the adapter.
  • Page 11 Appendix B DWL-AG132 Install Guide DWL-AG132 Install Guide Appendix B Channel: Displays the channel information. By default, the channel is set to 6 and selection is automatically determined by the DWL-AG132. Signal Strength: Represents the wireless signal between the access point and the DWL-AG132. The percentage coincides with the graphical bar.
  • Page 12 DWL-AG132 Install Guide Appendix B SSID: The Service Set Identifier is the name assigned to the wireless network. The factory SSID setting is set to default. Make changes here to match the SSID on existing wireless router or access point.
  • Page 13 Appendix B DWL-AG132 Install Guide DWL-AG132 Install Guide Appendix B Key Length: When encryption is enabled, you will have the option to specify the level and key format of the encryption used. Select the appropriate Key Index: 1-4, and enter ASCII or hexadecimal digits in the appropriate field.
  • Page 14 DWL-AG132 Install Guide Appendix C To connect to a network, make sure the proper network settings are configured for the DWL-AG132. For MICROSOFT WINDOWS XP: Go to Start > right-click on My Network Places > select Properties > double- click on the network connection associated with the DWL-AG132.
  • Page 15 Appendix C DWL-AG132 Install Guide DWL-AG132 Install Guide Appendix C Static IP address setup Used when a DHCP server is not available on the local network. Select Use the following IP address IP address: 192.168.0.28 Subnet Mask: 255.255.255.0 Input a static IP address in the same range as the wireless router or access point.
  • Page 16 DWL-AG132 Install Guide Appendix C Dynamic IP address setup Used when a DHCP server is available on the local network. (e.g., a Router). Select Obtain an IP address automatically (if the wireless router or access point has DHCP server enabled).
  • Page 17 DWL-AG132 Install Guide Contacting Technical Support D-Link Systems, Inc.
  • Page 18 Notes DWL-AG700AP Install Guide DWL-AG132 Install Guide Notes Notes D-Link Systems, Inc.
  • Page 19 DWL-AG700AP Install Guide Notes D-Link Systems, Inc.
  • Page 20 DWL-AG700AP Install Guide DWL-AG700AP Install Guide Notes Your Setup is Complete Notes D-Link Systems, Inc.
