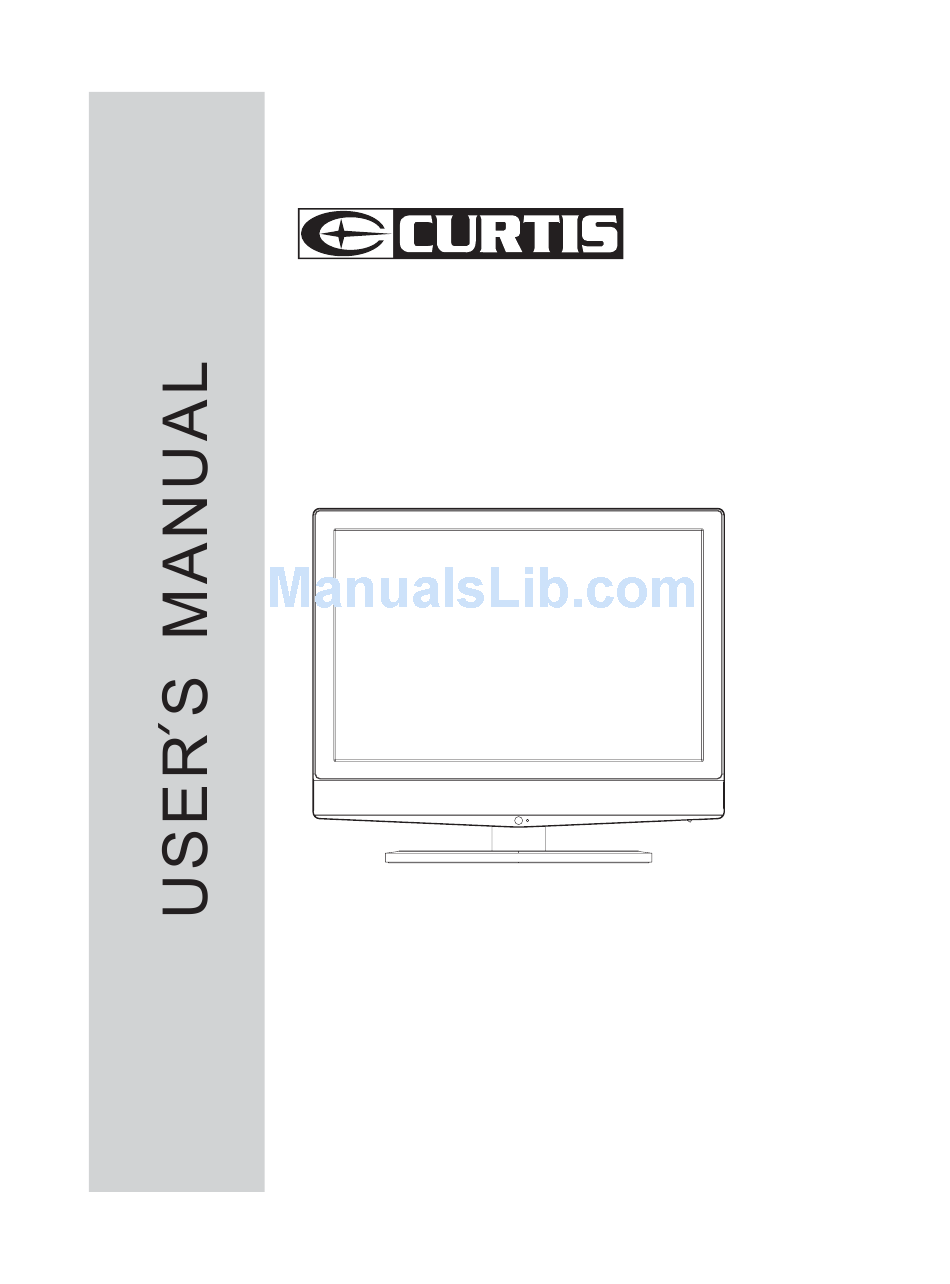

- Page 1 Model: LCDVD194A Please read this User Manual carefully to ensure the proper use of this product and keep this manual for future reference...
-
Page 2: Table Of Contents
Contents Safety and warnings..................2-4 Introduction....................5 Installation...................... 6-9 emote Control....................10 Operation......................11-14 Caution and DVD SIDE PANEL Features General Steps of setup menu Setup Items Introduction DVD REMOTE CONTROL OPERATION Mp3 PLAYBACK DVD Trouble shooting Trouble Shooting....................24... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1.Read these safety instructions. 2.Keep these safety instructions. CAUTION 3.Heed all warnings. RISK OF ELECTRIC SHOCK DO NOT OPEN! 4.Follow all safety instructions. CAUTION 5.Do not use this apparatus near water. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER 6.Clean only with dry cloth. - Page 4 SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel.
-
Page 5: Safety And Warnings
SAFETY AND WARNINGS television reception, which can be determined by turning Thank you very much for purchasing this TV. To enjoy the equipment off and on, the user is encouraged to try to your product from the very beginning, read this manual correct the interference by one or more of the following carefully and keep it handy for easy reference. -
Page 6: Introduction
INTRODUCTION Main features Accessories Accessories Used as Television, display terminal,PC display AC Power Cord......High luminance,wide viewing angle Infrared Remote Control... 3 BTSC User s Manual ......4 ATSC digital signals and NTSC analog signals TV. Battery(AAA)......Main parameter Viewing Picture Size(diagonal) 19inch Resolution: 1440x900... -
Page 7: Installation
INSTALLATION Front panel KEYBOARD SOURCE MENU VOL+ VOL- POWER MUTE NICAM 1 SOURCE RECALL 1: Remote control sensor. TV MENU INPUT Display the input source menu. ENTER 2: Indicator LED: GREEN POWER ON. DVB MENU SOUND EXIT 2 MENU SLEEP ASPECT SOURCE DISPLAY... - Page 8 INSTALLATION STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to VGA mode. 4.Power on the VGA. This sequence is very important. 100-240V~ 50/60Hz VGA INPUT VGA AUDIO...
- Page 9 INSTALLATION ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
-
Page 10: Installation
INSTALLATION AV EQUIPMENT This TV provides one group of AV ,one group of S-Video,one group of YPbPr for convenient connection to VCR,DVD or other video equipment. Please refer to the owner s manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. -
Page 11: Remote Control
REMOTE CONTROL POWER To set the TV standby or on. POWER MUTE NUMBER KEY For direct access to program. RECALL MENU To display TV menu or to return to the previous menu. CURSOR To move within the menu. EXIT Used to exit menu. MENU SOURCE VOL+/-... -
Page 12: Operation
OPERATION 3.TIMER MENU 1. PICTURE MENU The third item of the MENU is TIMER MENU. The first item of the MENU is PICTURE MENU. You can adjust time here. You can adjust picture effect here, such as contrast, Press to select, press to adjust, press MENU brightness, etc. - Page 13 OPERATION 1). Advanced: In PC Mode is available. MENU Press button to select Advanced item , Press The fifth item of the MENU is MENU. button, the screen will display as follow: You can setup Parental Control here. Press to select, press to adjust, press MENU to exit.
- Page 14 OPERATION 2).MPAA:switch the movie-rating control level: N/A, switch: G, PG, PG-13,R,NC-17,X. When the Parental Control switch is ON, the below options can be adjusted. Rating US: Press button, the screen will display as Description follow: General audiences, All Ages admitted Parental Guidance suggested.
- Page 15 OPERATION 1). Air/Cable: select air TV signal or cable TV signal. 2).Canada French: switch the French-rating control 2). Auto Scan: If it's the first time using the TV, it level: E, G,8ANS+,13 ANS+,16ANS+,18ANS+. should scan all the TV channels first, press the button to confirm, you will see below menu :...
-
Page 16: Caution And Dvd Side Panel
DVD OPERATION Features CLASS 1 LASER Disc formats supported by this player: PRODUCT Caution MPEG4 files on discs Dolby Digital The DVD video player is A class 1 laser product. Use of controls or adjustments or performance of procedures other than those specified herein. May result in hazardous radiation Exposure. -
Page 17: General Steps Of Setup Menu
DVD OPERATION 2. Setup Items Introduction 1. General Steps of setup menu A) Press the setup button, the main setup menu appears. 2.1 SYSTEM SETUP The system setup options are illustrated below: SYSTEM SETUP 2.1.1 TV SYSTEM TV SYSTEM According to the Color System of the TV, you VIDEO can choose the TV System. -
Page 18: Dvd Operation
DVD OPERATION 2.1.4 PASSWORD 2.2 LANGUAGE SETUP The language setup options are illustrated below: The password option is initially locked, and you can not set the ratings limit or change the 2.2.1 OSD LANGUAGE password. In order for the Ratings feature to Highlight the OSD LANGUAGE option, and work, the password mode must be turned on. - Page 19 DVD OPERATION 2.4 VIDEO SETUP 2.2.3 SUBTITLE LANG The video setup options are illustrated below: Highlight the SUBTITLE LANG option, and press the Arrow buttons to choose the subtitle language you prefer. Press Enter to confirm. If the disc you are playing has that language VIDEO SETUP available, it will display subtitles in that language.
- Page 20 DVD OPERATION 2.5 SPEAKER SETUP 2.4.3 HUE The speaker setup options are illustrated below: Use the Up and Down arrow buttons to move 2.5.1 DOWNMIX the scroll and adjust the hue. A)LT/RT Choose this setting when the DVD player is connected to a 2 Channel Analog Audio input.
- Page 21 DVD REMOTE CONTROL OPERATION 0-9 keys PLAY/PAUSE These keys are used to input the time, as well Press PLAY/PAUSE from stop mode to start play. as title, chapter and track numbers. Press PLAY/PAUSE during playback to pause When a numeric item is displayed on the screen, playback.
-
Page 22: Dvd Remote Control Operation
DVD REMOTE CONTROL OPERATION GOTO PREV Press PREV to skip to previous chapter or track. During playback, press GOTO show the current time counter position. DISPLAY During playback, press DISPLAY to show the current time counter position. Enter number Play time to choose of the the Play time. -
Page 23: Mp3 Playback
DVD OPERATION Mp3 PLAYBACK When a MPEG and a Mp3 disc is loaded, the screen will be displayed as follows: Current MP3/JPEG file Current name. If a JPEG file is being directory played, the name should name have a JPEG extension. File Switch Region: Displays the file type of the playing and the switching. -
Page 24: Dvd Trouble Shooting
DVD Trouble shooting If you have any questions, please consult the troubleshooting guide below: REMOTE NOT WORKING NO PICTURE OR SOUND Ensure the power button is on. Make sure the Main unit s POWER button is on Ensure the power outlet is operational. Ensure the remote batteries are working. -
Page 25: Trouble Shooting
Trouble shooting Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost or connection Normal audio electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute...
