Page 1: Operating Instructions

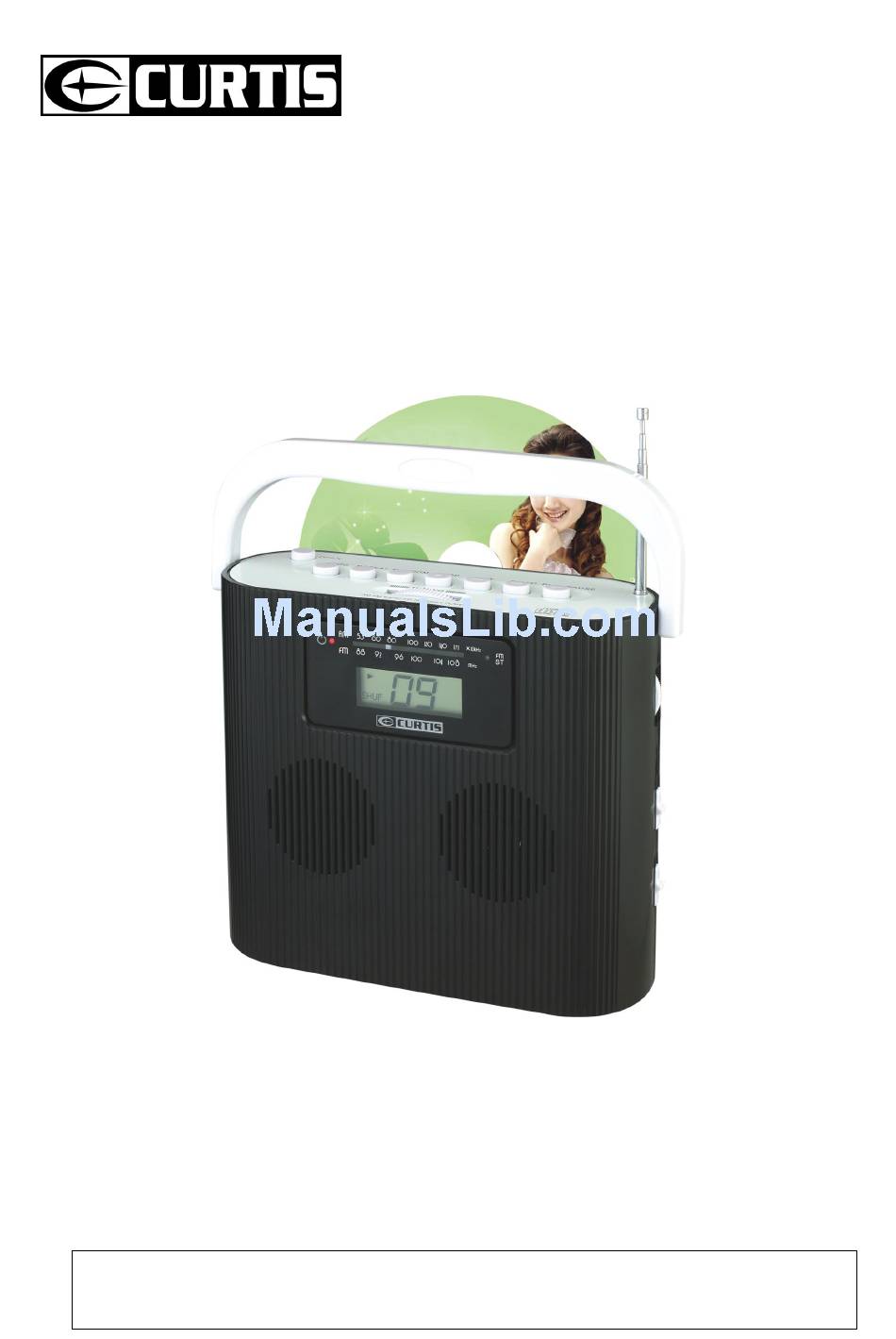

RCD224UK PORTABLE CD RADIO OPERATING INSTRUCTIONS Please read and follow this instruction manual carefully before using the unit and retain it for future reference... -
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS ............ 2 FUNCTIONS AND CONTROLS .......... 4 POWER SOURCE ............ 5 A. DC POWER OPERATION ............................5 B. AC OPERATION................................5 CD PLAYER OPERATION ............ 5 CD PROGRAMMED PLAY...............................6 ............ 6 RADIO RECEPTION TIPS FOR GOOD RADIO RECEPTION..........................6 USING HEADPHONES (NOT INCLUDED) .......... 6 READ THIS IMPORTANT INFORMATION BEFORE USING YOUR HEADPHONES ..........6 TROUBLESHOOTING GUIDE .......... 7 CARE AND MAINTENANCE .......... 7 Product Specification: + Sideloading CD/CDR player + AM/FM Radio (Analogue Tuning) AM Frequency : 530 1710 KHZ FM Frequency : 88108 MHZ + LCD display for CD function + 20track programmable memory + Stereo earphone jack ... -
Page 3: Safety Instructions
l SAFETY INSTRUCTIONS WARNING: IF CONNECTED TO AN AC OUTLET: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THE IMPORTANT SAFETY INSTRUCTIONS SHALL INCLUDE, IF AND AS APPLICABLE TO THE APPLIANCE, STATEMENTS THAT CONVEY TO THE USER THE INFORMATION ITEMIZED IN THIS PARAGRAPH: ... - Page 4 Follow the advice below for safe and appropriate operations. ON PROTECTION AGAINST LASER ENERGY EXPOSURE As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the · casing. Stop operation immediately if any liquid or solid object should fall into the cabinet. · Do not touch the lens or poke at it. If you do, you may damage the lens and the player may not operate · properly. · Do not put anything in the safety slot. If you do, the laser diode will be ON when the CD door is still open. If the unit is not to be used for a long period of time, make sure that all power sources are disconnected from · the unit. Remove all batteries from the battery compartment, and unplug the power cord or the ACDC adaptor if used, from the wall outlet. Make it a practice to remove the ACDC adaptor by grasping the main body and not by pulling the cord. This unit employs a laser. The use of controls or adjustment or performance of procedures other than those · specified here may result in exposure to hazardous radiation. ON PLACEMENT ·...
-
Page 5: Functions And Controls
FUNCTIONS AND CONTROLS 1. OPEN BUTTON 2. PROG BUTTOM 3. REPEAT BUTTON 4. RANDOM BUTTON 5. CD STOP BUTTON 6. REW BUTTON 7. F.FWD BUTTON 8. PLAY / PAUSE BUTTON 9. TELESCOPIC ANTENNA TUNING KNOB 10. 11. POWER ON/OFF BUTTON 12. AUX IN JACK 13. HEADPHONE JACK 14. DC 6V MAINS 15. POWER INDICATOR 16. CD TRACK DISPLAY 17. SPEAKER 18. HANDLE 19. FREQUENCY INDICATOR 20. ... -
Page 6: Power Source
POWER SUPPLY This unit operates with 4 X SIZE “C’ (UM2) batteries or from AC120V/60Hz line adaptor externally( not included) A. DC POWER OPERATION 1. Open the BATTERY CASE (#25) 2. Insert 4 pcs Size “C” (UM2) batteries (not included) according to the polarity diagram on the back cabinet. 3. Close theBATTERY CASE (#25). 4. Turn the POWER ON/OFF (11#) to ON position, the POWER INDICATOR(#15) will be turned red IMPORTANT : Be sure that the batteries are installed correctly. Wrong polarity may damage the unit. Note: For better performance and longer operating time, we recommend the use of alkalinetype batteries. (a) Do not mix old and new batteries. (b) Do not mix alkaline, standard (carbonzinc) or rechargeable (nickelcadmium) batteries. If the unit is not to be used for an extended period of time, remove the battery. Old or leaking battery can cause damage to the unit and may void the warranty. B. AC POWER OPERATION –Optional Function Remark:this unit doesn’t provide the AC/DC adaptor.we suggest you to buy the proper AC/DC adaptor with below character to connect the AC directly. Input: AC 230V /50HA / Output : 6V / 600MA Dia 3.5mm DC Jack 1. Connect the DC Jack into the DC 6V MAINS (#14) on the side of the unit. 2. Connect the other terminal of the AC/DC Adaptor to the wall outlet 3. Turn the POWER ON/OFF (11#) to o”ON” position, the POWER INDICATOR(#15) will be turned red CD PLAYER OPERATION 1. ... -
Page 7: Cd Programmed Play
CD PROGRAMMED PLAY This function allows the tracks to be played in a programmed sequence. 1. Under CD stop or playing condition, press the PROG. BUTTON (#2). The CD TRACK DISPLAY (#16) will display “01” and the PROG on the display will flash. 2. Press the CD F.FWD BUTTON (#7) or CD REW BUTTON (#6) to select the song to be programmed. 3. Press the PROG. BUTTON(#2) again to store selection. The CD TRACK DISPLAY (#16) will advance to “02”. 4. Press the CD F. FWD BUTTON(#7) or CD REW BUTTON(#6) to select the next song to be programmed and press the PROG. BUTTON(#2) to store selection. 5. The max. programmable tracks reaches as 20 tracks merely for memory save. 6. Press CD STOP BUTTON (#5) to end programming and return to normal play mode. 7. To check the programmed tracks, press PROG. BUTTON(#2) continuous to show all the programmed songs. The CD TRACK DISPLAY(#16) will display the program number first and then followed by the flashing track number. 8. Press CD PLAY/PAUSE BUTTON (#8) to begin programmed play. The first track in program will appear in the CD TRACK DISPLAY(#16) and the” PROG” will light steadily. ... -
Page 8: Troubleshooting Guide
TROUBLESHOOTING GUIDE Should you experience difficulties in the use of this player please refer to the following chart. PROBLEM POSSIBLE CAUSE REMEDY · The unit is disconnected from · Connect to an outlet. the AC outlet There is no display · The AC outlet has no power · Try the unit on another outlet and the unit will not · The AC outlet is controlled by a · Do not use an outlet that is play wall switch controlled by a wall switch · Weak batteries · Replace with fresh batteries · Rotate the cabinet for better Poor AM or FM AM: Weak on distant stations reception reception FM: Telescopic Antenna not · Extend Telescopic Antenna extended Unit ON but there · The volume Control has been ·...
