SkyLink TB-318 User Manual

Wall Mount Transmitter

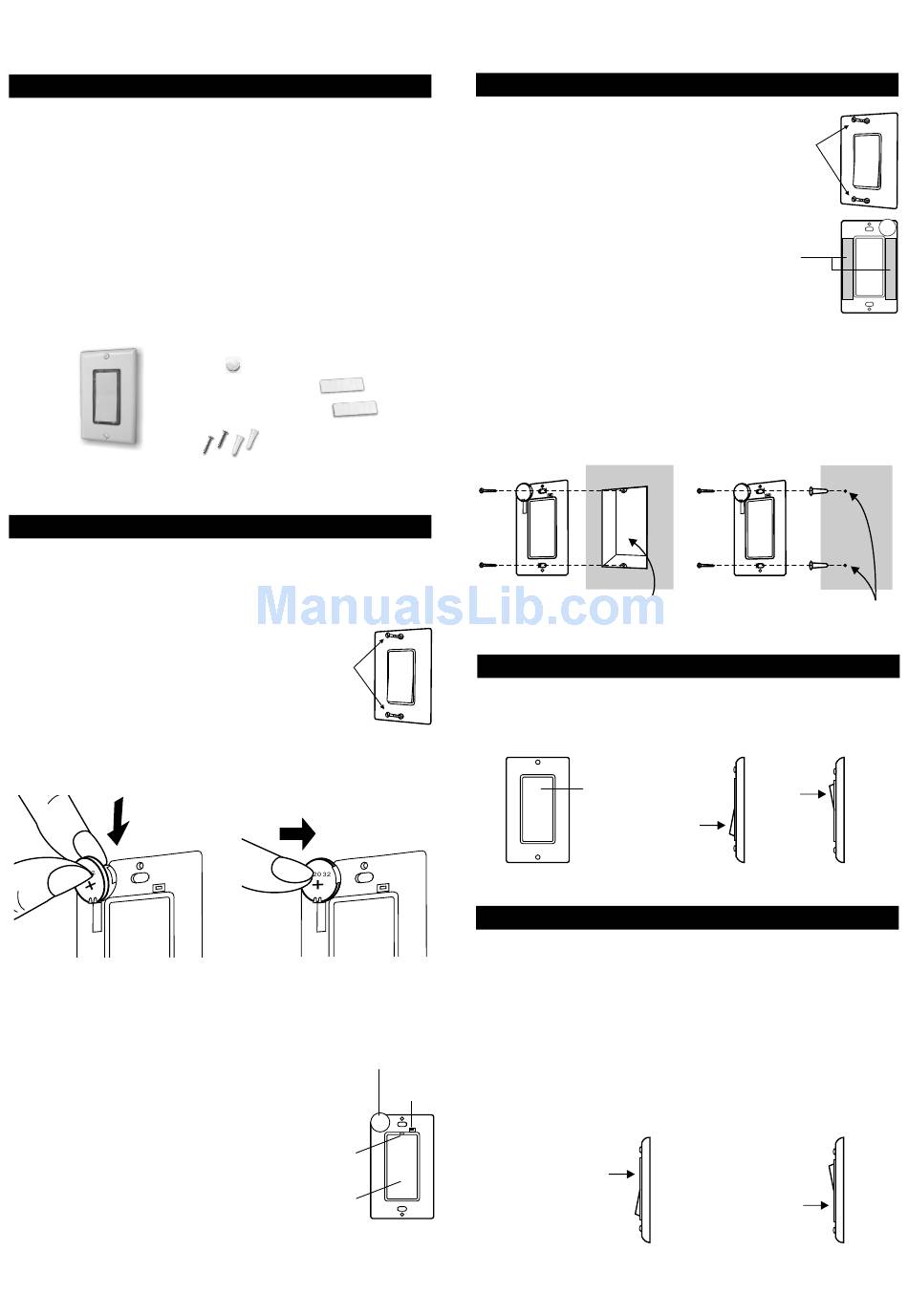

1. INTRODUCTION

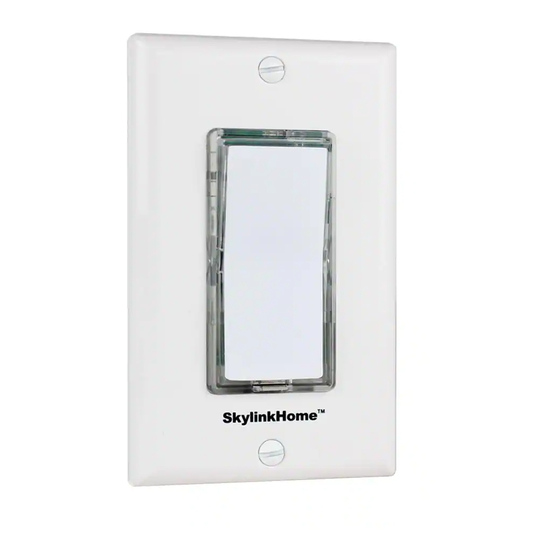

Thank you for your purchase of a SkylinkHome Wall Mount Transmitter,
Model TB-318. This transmitter allows you to wirelessly operate lighting /
home automation with the SkylinkHome receiver modules.
All wireless signal communications within the SkylinkHome System are
based on rolling code technology to ensure highest security is used.
You will find the following in this package:
- Wall Mount Transmitter
- Mounting Accessories & Double-sided Foam Tape
- Lithium Battery CR-2032
- User's Instructions
Wall Mount
Transmitter
2. PROGRAMMING TRANSMITTER TO RECEIVER MODULE
In order to operate a receiver module remotely, a transmitter must be
programmed to the receiver module.
To program a transmitter into the receiver module, follow the instructions
below.
1. Remove the front wall plate from the Wall Mount
Transmitter by loosening the 2 screws.
2. Insert the battery to the Wall Mount Transmitter
as shown. Positive side up. When the battery is
installed, the red LED on the transmitter will be
on for 1 second.
Slide in
3. You may transmit the programming signal from the
transmitter by pressing the "SET" button on the
transmitter. The red LED on the transmitter will be
on for 15 seconds.
4. Put the receiver module that you plan to program
into programming mode. Refer to the User's
Instructions of that receiver module.
5. Activate the Wall Mount Transmitter by pressing
the pad on the front. Its red LED will flash then off.
6. Once the transmitter is programmed, the receiver
module will quit from programming mode.
7. Now the programmed transmitter is ready to be
used.
Model TB-318
TM
TM
TM
Lithium
battery
Double-sided
Foam Tape
Screws and anchors
Loosen up
2 screws
Push
Down
Battery
(Positive side up)
Red
LED
Pad
After programming, you are now ready to install
the Wall Mount Transmitter .
You may use double sided foam tape to stick the
transmitter on the wall, or you may use screws
to mount the transmitter.
Using double sided foam tape:
Place the 2 double sided foam tapes on the back
of the back plate. Clean the surface of the wall
where you plan to install the back plate. Peel
off the foam tape cover and stick it to the wall
surface.
Using screws:
If you are using screws, tighten the back plate of the wall mount trans-
mitter by the 2 screws provided. If you are installing the back plate to an
existing wall switch with wall box, no need to use the anchors. Other-
wise, drill 2 small pilot holes based on the 2 mounting screw positions
and insert the anchors before tightening the back plate with screws.
After securing the back plate, either by double sided foam tape or screws,
tighten the 2 screws on the front to secure the front plate.
Pushing the pad from one position to the other will toggle the status of a
load, i.e. when the light is off, pushing the pad will turn on the light, and
vice versa.
Besides turning on and off a load, you may also control the brightness
of a light if the receiver module and the light bulb is dimmable, i.e. either
incandescent light or dimmable compact fluorescent light.
To change the brightness, first turn on the light by pushing the pad.
Then, press and hold the pad after the light is on will change the brightness
of the light. When the desired brightness is reached, release the pad.
Press and hold the pad again to change the brightness in the opposite way.
SET
Button
When the desired brightness is reached, release the pad.
CR 2032
+
Press and Hold
3. INSTALLATION
Existing Gang Box
(No Anchor)
4. ON / OFF OPERATION
Push pad to
toggle on / off
Push
5. BRIGHTNESS CONTROL OPERATION
OR
Press and Hold
Brightness Control
Tighten
2 screws
Place
double-sided
foam tape
Drill 2 pilot holes
& insert anchors
Push
Toggle on / off
