SkyLink R4G User Manual

Gate Receiver
The R4G receiver is an access control receiver capable of having up to 1000 remote controls. Each remote control can be individually added, deleted,
or temporary disabled. The following advanced features are also available:
·
NC / NO output selection
·
Relay latch / momentary contact selection
·
Latch duration
·
Momentary contact duration
Relay – Lights when the
relay is triggered
Program – Lights when the
receiver is in program mode, it
will not receive any incoming
signal during programming
ADV SET – Advanced
Features/Advanced
settings
1. Hang the receiver with 2 screws (Provided in the package).
2. Connect the push button or radio terminals to the 2 contacts labeled "Relay Com" and "NO Contact".
3. Connect the 12V – 24V AC/DC power supply to the 2 indicated terminals. You will hear 3 beeps after
plugging in the power supply.
Basic functions
Add Remote Controls to auto assigned location
Display
-> ->
ADD ADD
Press Press
Display will then show the next available memory location.
Press twice to exit or add another remote by pressing its button.
DISP

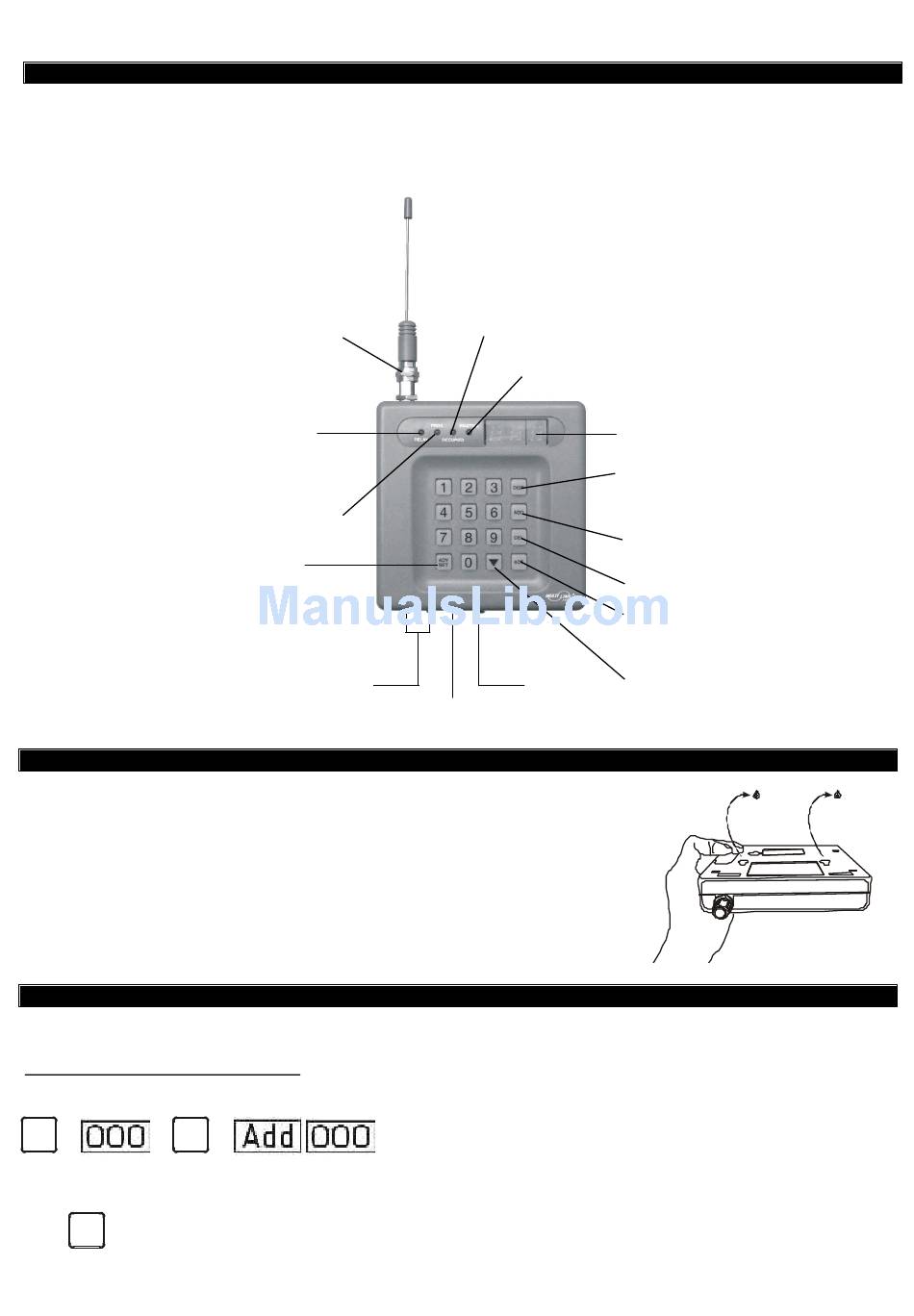

Antenna Connector –
For connection to
direct antenna or with
coax cable to a remote
antenna
12V-24V AC/DC
Display
-> -> Press the button on the Remote, if hear 3 beeps confirmed the
1. INTRODUCTION
Occupied – Lights when the
displayed memory location
(remote) is occupied
Blocked – Lights when the
displayed memory location
(remote) is blocked
Relay Com
NO Contact
2. INSTALLATION
3. OPERATION
remote is programmed to the memory location [0 0 0].
– –
1
LED display – Display
selected memory location
DISP – To display information for the
memory location such as occupied
remotes, blocked remotes, empty
memory locations etc
ADD – To add remote control to the
receiver
DEL – To delete a remote control
ACT – To activate or inactive a
remote control (This function may
be called Block and Unblock)
Scroll Down – Scroll all the memory
locations to check their status, such
as occupied, blocked, empty etc.
Model R4G
