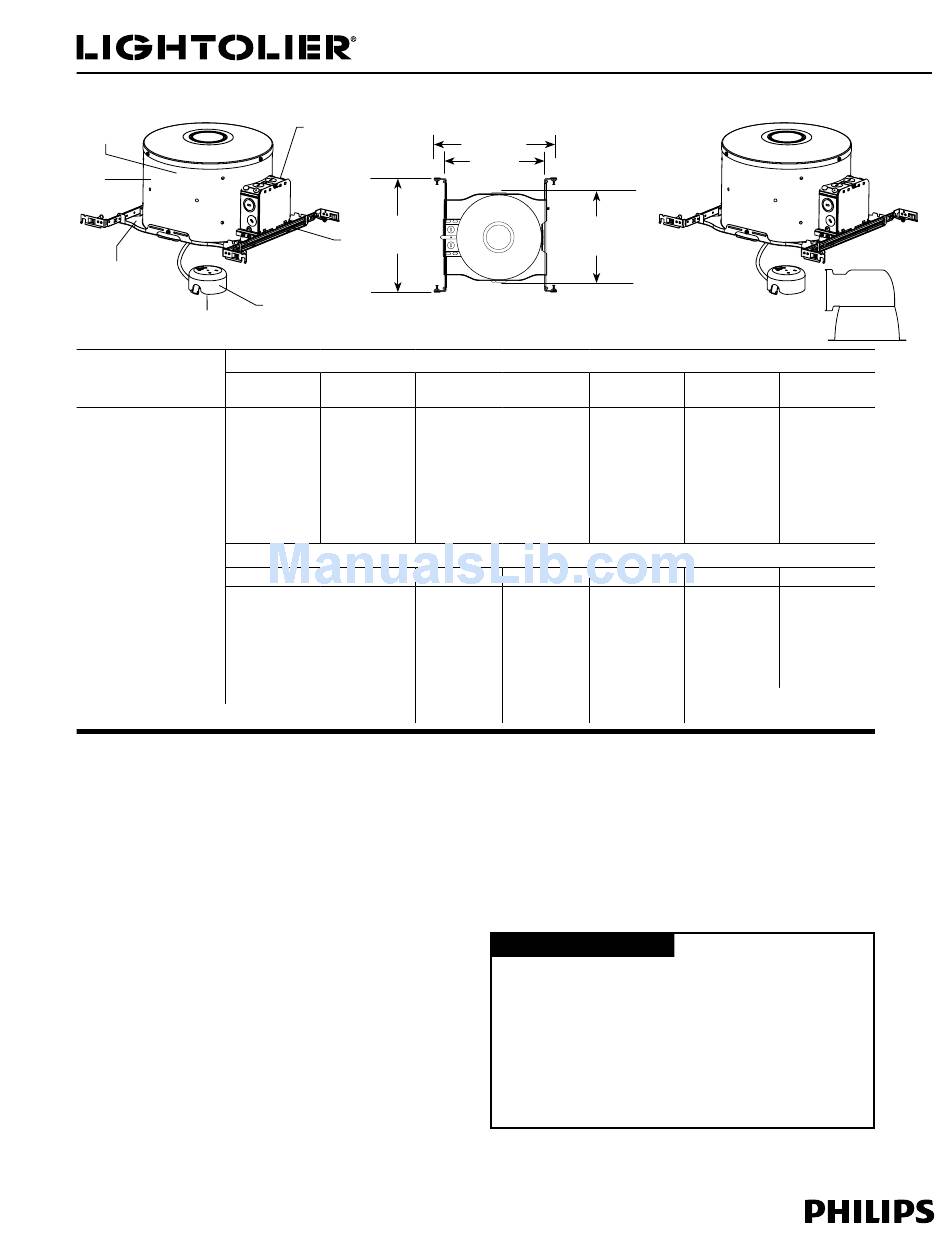

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe
™
Frame-In Kit
1101FDICMX1**
(Advance Mark 10- 120V)
1101FDICMX2**
(Advance Mark 10- 277V)
26w Quad/Triple
GX24q-3 Base
120v – 0.26amp max
277v – 0.11amp max
32w Triple
GX24q-3 Base
120v – 0.32amp max
277v – 0.14amp max
42w Triple
GX24q-4 Base
120v – 0.41amp max
277v – 0.18amp max
**Add N to catalog number for preset nails.
Features
1. Housing: .028" (#21ga.) aluminum. UL listed for direct contact with thermal
insulation. AirSeal
®
housing minimizes air leakage to less than 2 CFM at 1.57
PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3) and
Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation in ceiling. Access door for inspection of junction box.
2. Mounting Frame: .032 (#22 ga.) galvanized steel. Accommodates ceilings
up to 1 1/2" thick. 3/8" deep integral lip. Locks into position along length
of mounting bars with locking screw and bendable slot. Four slots are
positioned 90° apart to simplify alignment. Push-in/twist-out roto-clips hold
reflector flush to ceiling.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in) .032" (#22 ga.) galvanized steel. UL
listed for maximum of 8 (#12 ga.) 90°C through branch circuit conductors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O.C. joist spacing. Bars can accommodate 12" O.C joist spacing after
a slight field modification (see Instruction Sheet). Features integral self
tapping phillips screws for secure attachment to wood or metal construction.
Attaches to T-bar ceilings without the need of accessories.
5. Ballast: Mounted inside housing. 120V or 277V UL Listed Electronic Dimming
Ballast, end of lamp life protection, class "P" thermally protected, class "A"
sound rating.
6. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18
AWM leads to ballast.
7. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to
reflector trim by spring clip for precise optic alignment.
Lightolier is a Philips group brand
Performance Recessed CFL Downlighting
6 ¾" Aperture, 1 Light, Compact Fluorescent, IC AirSeal
3
13 Min.
4
24" Max.
7
6
Uniframe
Compact Fluorescent Performance Series Reflector Trims
™
Horizontal
Horizontal Wall
Open
Wash - Single
1101HCL
1101HCLSW
1101HCD
1101HCDSW
1101HWH
1101HWHSW
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)
Cone
1112*
1145
1113*
1146 / 1146CD
1113BK*
1143
1113WH
1144 / 1144CD
1113CD*
Overall Length
16 3/8"
12 1/4"
Overall Width
10 3/8"
Top View
Height: 7 1/4"
Ceiling Opening: 6 15/16"
Horizontal Wet Location
Horizontal
Lensed / Diffused
Cross Blade
1101HACB
Clear Lens
Fresnel
1101HCLC
1101HCLF
1101HWHCB
1101HCDC
1101HCDF
1101HWHC
1101HWHF
Opal Lens
1101HCLO
1101HCDO
1101HWHO
Satin Cone
Baffle
Wall Wash
1108*
1105*
1195
1110*
1105BNM
1196
1105WH
1196CD
1176
1176WH
Options & Accessories
Extra-Thick Ceiling
Mounting Ring: 1967B - 1 1/4" to 2" thick ceilings
Labels
cULus Listed (Type I.C., Suitable for Damp Location), I.B.E.W.
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
AirSeal
is a registered trademark of Lightolier
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C0608
