Lightolier Soli 48024ALU Specification

Page 1 of 2

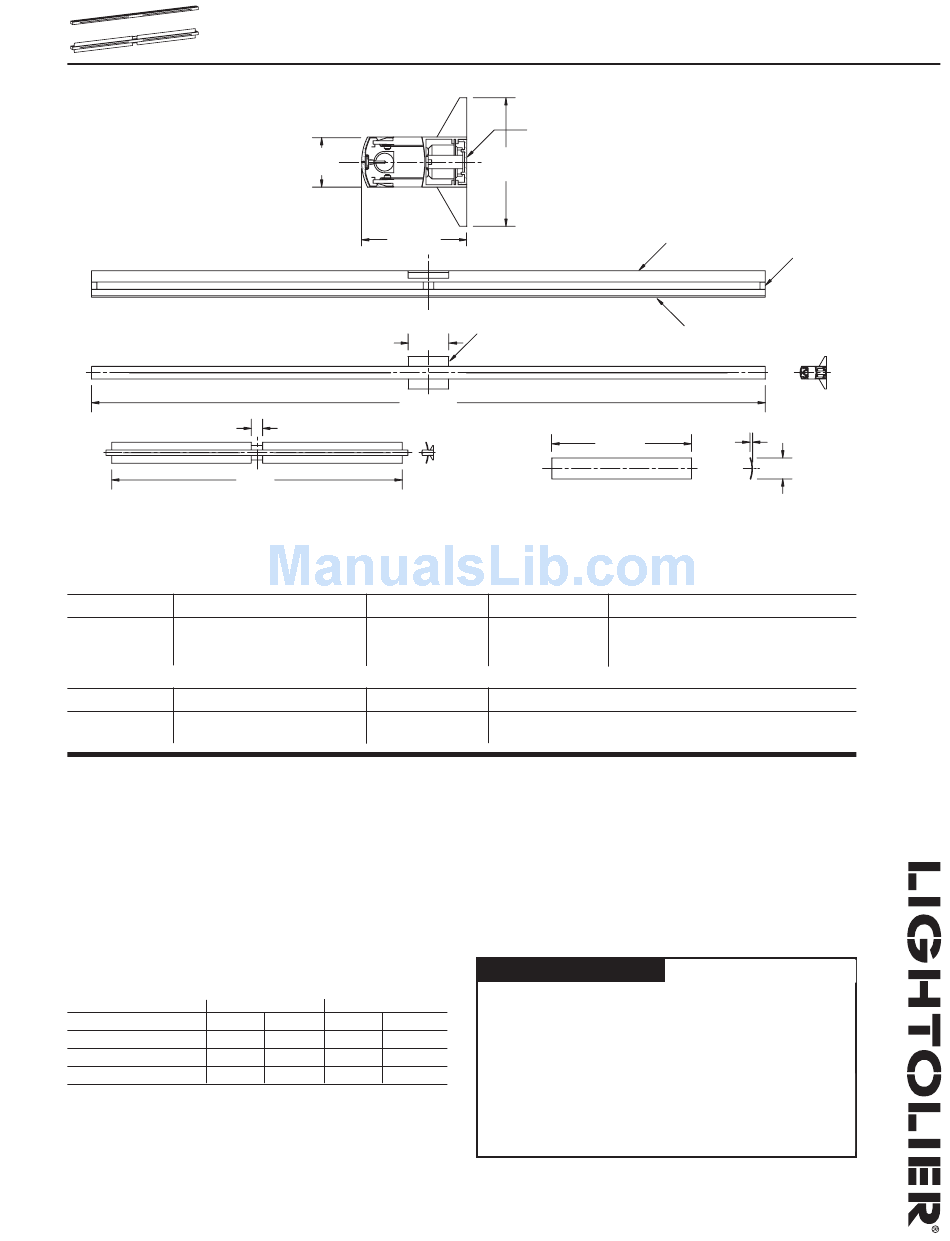

89 3/8"
(2270mm)
Luminaire Shown With
40876 or 40916 Diffusers
Note: Luminaire can be ordered with or without diffuser shield. Order each separately.
Fixture Ordering Information
Catalog No. Finish
48024ALU Metallic Aluminum Powder Coated
48024AL54U Metallic Aluminum Powder Coated
Diffuser Ordering Information (Order diffuser separately)
Catalog No. Description
40876
Curved Glass Diffuser (3/16" Thick)
40916
Curved Acrylic Diffuser (3/16" Thick)
Features
1. Lamp Enclosure: (2) Extruded aluminum. See above for finish.
2. End Cap: (2) Die cast aluminum. See above for finish.
3. Housing: Extruded aluminum. See above for finish.
4. Cover: (2) Die cast aluminum. Used to enclose 4" octagonal junction box.
5. Mounting Plate: Extruded aluminum provided with (6) 7/8" diameter knock-
outs along it's length for direct conduit connections.
Lamping (by others)
Linear Fluorescent: 28W T5 or 54W T5 HO, Mini Bipin
Electrical
Lampholders: G5 (Mini-Bipin) base with rotor for securing lamp. cULus Listed.
Ballast: Electronic, HPF, Universal voltage 120V-277V.
28 Watt
Voltage 120
Total Input Watts 64
Max. Line Current (Amps) 0.55
Ballast Factor 1.03
Min. Starting Temp: 0°F/-18°C
THD<10%
Architectural Decorative Soli
1 3/4"
(44.5mm)
3 11/16"
(94mm)
5 5/8"
(143mm)
92 7/8"
(2359mm)
3 1/2"
(89mm)
Wattage
2 x 28W
2 x 54W
Dimensions
6.5" W x 42 15/16" L
6.5" W x 42 15/16" L
54 Watt
277 120 277
63 120 117
0.23 1.0 0.43
1.03 1.0 1.0
5
4 1/2"
(114mm)
4
42 15/16"
(1091mm)
(2x) 40876 Glass Diffuser
(2x) 40916 Acrylic Diffuser
Voltage Lamping
120/277V T-5, Mini-Bipin
120/277V T-5 HO, Mini-Bipin
HO denotes High Output
Finish
Etched Outside/ White Ceramic coated inside. Polished edges.
Translucent white Acrylic. Textured both sides.
Options
Dimming: (Voltage Specific/54W HO lamps)
Add MX1 suffix code (for 120V) to Cat. No.
Add MX2 suffix code (for 277V) to Cat. No.
example: 48024AL54MX1
Emergency: Integral Bodine LP550 emergency battery pack, test switch and
light, add E suffix code to Cat. No.
DALI: Digital Dimming System ballast 120/277V. Add DA suffix code to Cat. No.
Labels
cULus Listed. Suitable for Damp Locations
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
