Curtis LCD1105A Operation Instruction Manual

Lcd color digital tv receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

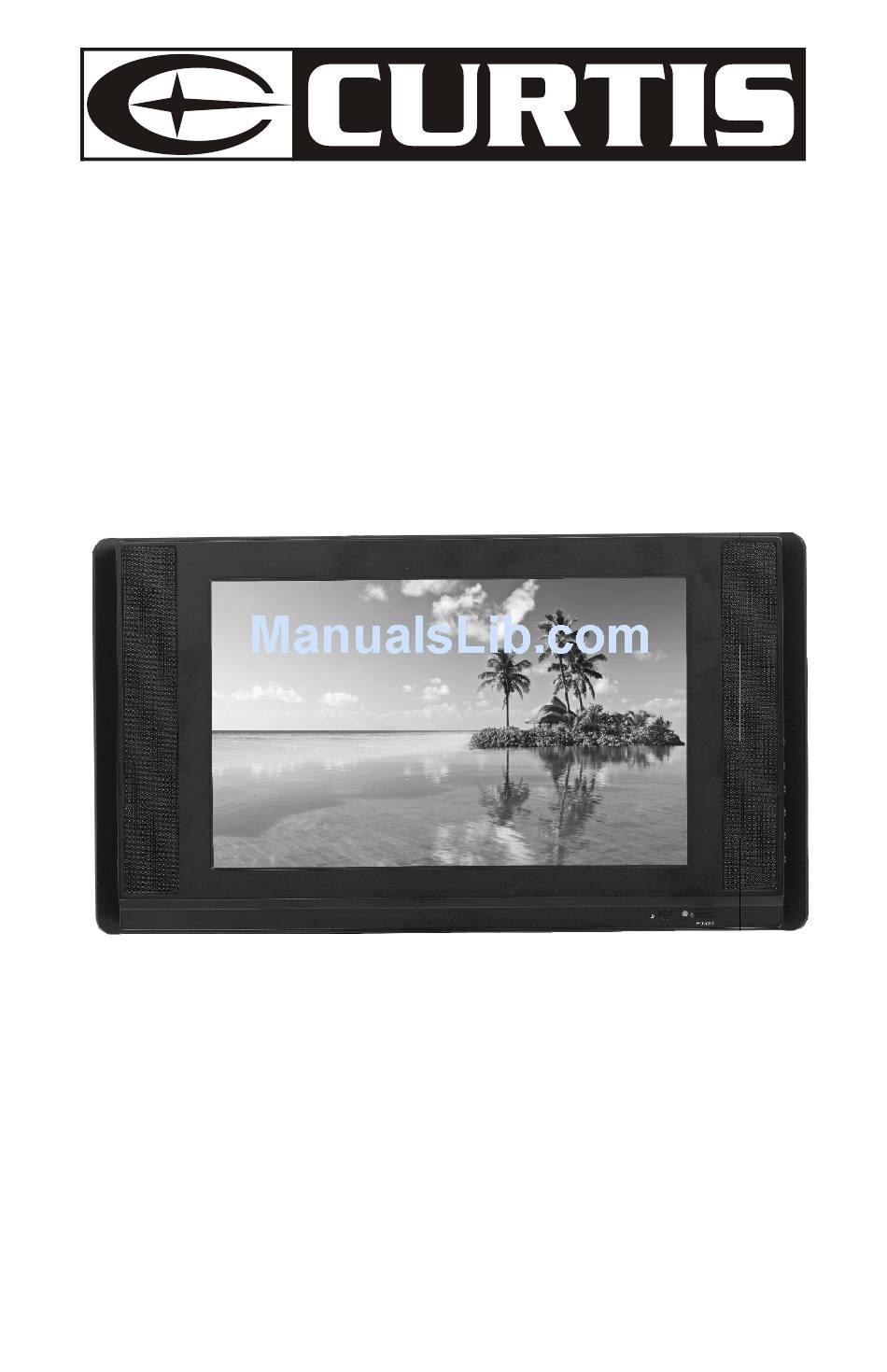

LCD1105A
Operation
Instruction
LCD Color digital TV receiver
NOTE: THIS UNIT IS NOT MEANT TO BE USED IN A MOVING VEHICLE.
ATSC DIGITAL TUNERS DOES NOT RECEIVE SIGNAL WHEN IN MOTION.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.

Advertisement

Table of Contents
loading

Related Manuals for Curtis LCD1105A

Summary of Contents for Curtis LCD1105A

  • Page 1: Operation Instruction

    LCD1105A Operation Instruction LCD Color digital TV receiver NOTE: THIS UNIT IS NOT MEANT TO BE USED IN A MOVING VEHICLE. ATSC DIGITAL TUNERS DOES NOT RECEIVE SIGNAL WHEN IN MOTION. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 2: Table Of Contents

    Contents Precautions Accessories Appearance Description of Panel Buttons Remote Controller Directions Basic Operation VII TV Menu Operation 6.1. TV/AV Image Quality Adjustment 6.2. Sound Adjustment 6.3. Time Adjustment 6.4. Settings 6.5. Program Searching VIII To Receive Clear Images Before Repair Technical Parameter Stand Assemble Instruction Manual...

  • Page 3: I Precautions

    I Precautions Storage 1. Keep this product away from extremely hot or cold places. The storage temperature ranges from -40 to 60 and the working temperature from -5 to 40 . 2. Do not use this product at damp environment like bathtubs, wash basins, kitchens, washtubs, as well as basements, swimming pools or similar places.

  • Page 4: Accessories

    II Accessories 1. Car adapter 2. AC adapter 3. AV conversion cable 4. Remote control 5. AAA type batteries 6. Telescopic antenna 7. 75 ohm antenna conversion cable(screw connector) 8. User manual * Open the package and make sure all the items are included.

  • Page 5: Appearance

    III Appearance 1. Loudspeaker 6. Power: power on/off 2. TFT-LCD Screen 7. Antenna Input Jack 3. Control Panel 8. AV2 IN Input 4. Remote-control receive 9. AV1 IN Input window 10. Earphone Jack 5. Power indicator 11. 12V DC Power Jack Red: Standby Green: Power-on...

  • Page 6: Description Of Panel Buttons

    IV Description of Panel Buttons 1. MENU: Menu button, press to show the main menu. When system enters a multilevel submenu, press to return the previous menu step by step. 2. CH+ : Upward selection/Channel increasing. 3. CH- : Downward selection/Channel decreasing.

  • Page 7: Remote Controller Directions

    V Remote Controller Operation Instruction 1. CH+/CH- (Program choosing key, up and down direction key): Press CH+ key to increase the channel by degree. Press this key and choose menu upward if it is in the system menu. Press CH- key to decrease the channel by degree. Press this key and choose menu downward if it is in the system menu.
  • Page 8 9. MENU: Menu key. When you press this key, the main menu will display. When the system enters a multilevel submenu, press this key and return to previous menu step by step. 10. PRLIST: TV program menu key. When pressing this key, you will see the entire program list in a program list box.

  • Page 9: Basic Operation

    VI Basic Operation 1. Connection of Power Supply: Align the power supply plug on AC adapter with the jack on the machine rear cover marked with 2. Connection Of External Antenna: external antenna cord Align one end of the attached external antenna cord plug with the external antenna jack, and the other end to connect the...

  • Page 10: Tv Menu Operation

    VII TV Menu Operation 7.1. TV/AV Image Quality Adjustment Personal Picture Mode Contrast Brightness Color Sharpness Tint UP/DOWN ADJUST "MENU": EXIT Press MENU key to enter the menu list and then press left or right key to enter the above list. Press up and down key to choose to enter the sub-list, press left and right key to adjust the numerical value or setup the contents, then press Menu to confirm and return to previous list.

  • Page 11: Sound Adjustment

    7.2. Sound Adjustment Standard Sound Mode Bass Treble Balance English Audio Language UP/DOWN ADJUST "MENU": EXIT Press MENU key to enter the menu list and then press left or right key to enter the above list. Press up and down key to choose to enter the sub-list, press left and right key to adjust the numerical value or setup the contents, then press Menu to confirm and return to previous list.

  • Page 12: Settings

    Press MENU key to enter the menu list and then press left or right key to enter the above list. Press up and down key to choose to enter the sub-list, press left and right key to adjust the numerical value or setup the contents, then press Menu to confirm and return to previous list.
  • Page 13 7.4.5. Closed Caption Settings Many TV programs contain closed caption information, and the audience can see the caption in words on the screen. Not all the channels at any time have closed caption code information. Press Up and Down Key to choose Closed Caption and press Left and Right Key to enter the following picture.

  • Page 14: Program Searching

    7.5. Program Searching Press MENU Key to enter the menu list, press Left and Right Key to enter the following list, press Up and Down Key to enter the sub-list and then press Left and Right Key to setup the contents. 7.5.1.1.
  • Page 15 7.5.2. In the Start to scan item, press VOL+ to start searching. Auto searching will clear the primary program. AUTO Cable System Start to Scan DTV Signal UP/DOWN ADJUST "MENU": EXIT After received the programs,the DTV Signal item will show the DTV signal strength.
  • Page 16 Program Name Show FD 3803 KQED-SD SELECT "MENU": EXIT 7.5.5. Change Channel Number Choose Channel No. as in the following picture: Antenna Auto Scan Favorite Show/Hide Channel No. Channel Lable FD 3803 DTV Signal "MENU": EXIT UP/DOWN ADJUST Press VOL+ or VOL- to change current channel number. 7.5.6.

  • Page 17: To Receive Clear Images

    VIII To Receive Clear Image Adjust the length, angle and direction of the telescopic antenna to receive the optimal image. Draw back the antenna beginning from the wide part after using. Warning If the signals are too weak, no matter how to adjust the antenna, the image will not be clear and there are phenomenons like high noise, shaking, and sound not well and so on.

  • Page 18: Before Repair

    IX Before Repair The following phenomenons do not mean that the TV set has fault. Please check it according to the following methods before repair. Phenomenon Reason AC adapter or automobile adapter connecting improperly; using No image and sound unauthorized power; the power switch is on the state of off.

  • Page 19: Technical Parameter

    X Technical Parameter Input ATSC frequency: 54MHz 803MHz NTSC receiving frequency: 55.25MHz 801.25MHz LCD Screen Technical Parameter LCD screen: 11 inch LCD screen scale: 16:9 Resolution: 800(H) 480(V) Response Rate: R: 30/F: 50 Visible Angle: U: 55/D: 65 L/R: 65 Illuminant: CCFL Lamp Life: >10,000 Hours Capability Parameter...

  • Page 20: Stand Assemble Instruction Manual

    Stand Assemble Instruction Manual Pict.-1 Pict.-2 Pict.-3 Pict.-4 Pict.-8 Pict.-5 Pict.-6 Pict.-7 Pict.-11 Pict.-12 Pict.-9 Pict.-10 Pict.-13 Pict.-14 Pict.-15 Step one: Pick up the stand accessory from the package as Pict.-1. Step two: Take out the rectangle patch from the stand haead as Pict.-2, Pict.-3 &...
  • Page 21 Warning This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Due to continuing improvements, the features and design are subject to change without notice. Warning There is no component that can be repaired in the TV set. Do not try to disassemble and improve the TV set.
