SkyLink HA-318T Guide Manual

Indoor/Outdoor
Motion Sensor

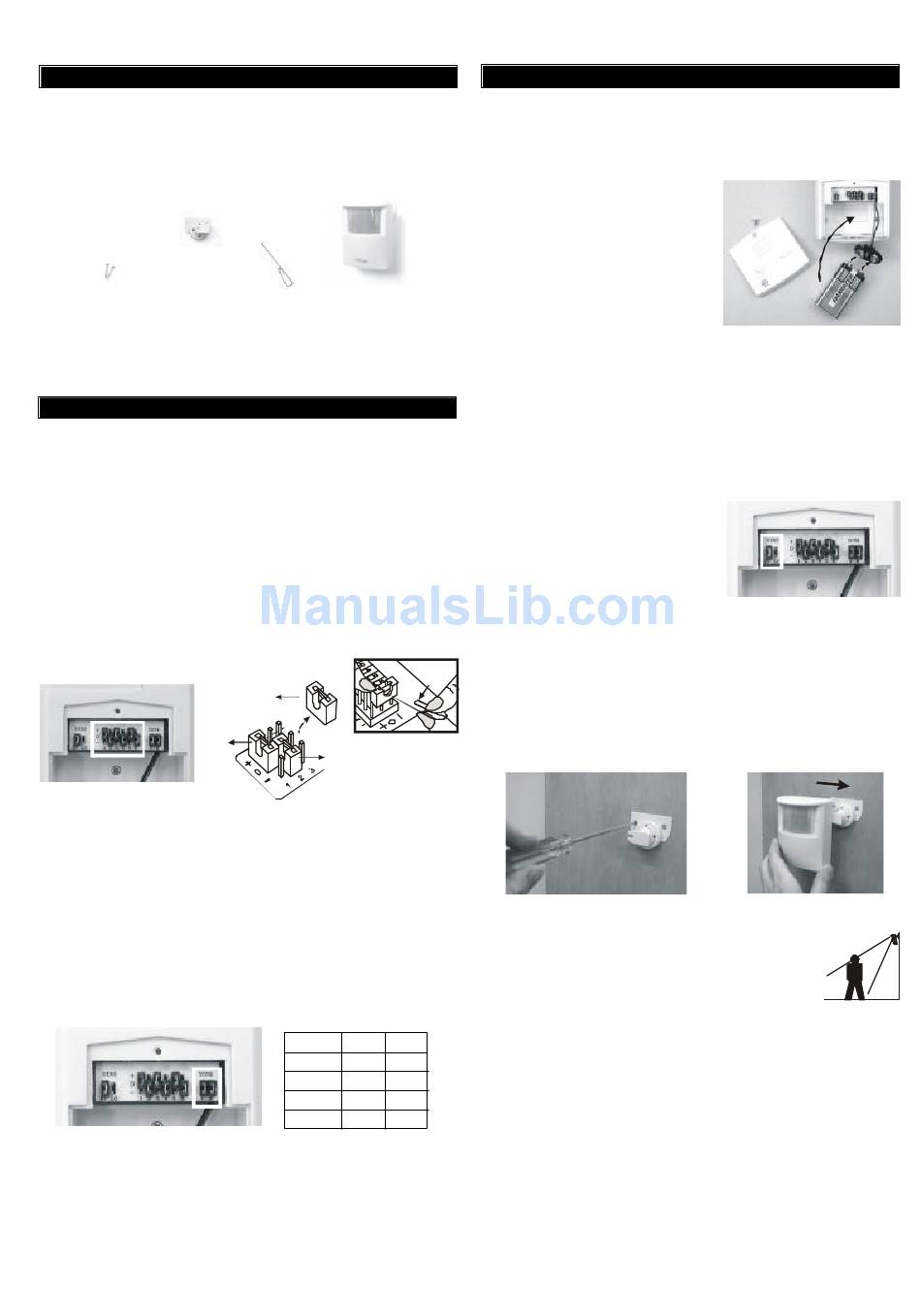

1. INTRODUCTION
The Indoor/Outdoor Motion Sensor is designed to monitor movement
around your house. The motion sensor can be placed either indoor or
outdoor. Once motion is detected, the receiver will beep & flash.
In this package, you should find an Indoor/Outdoor Motion Sensor, ball-
head joint, screws and a clip.
Ball-head joint
2 pcs 3 x 18 screws
(Included)
Please follow the instructions below to setup your Indoor/Outdoor
Motion Sensor.
2. SET UP CODE CONNECTORS AND ZONE CONNECTORS
1. CODE CONNECTORS
In order for the sensor to communicate with the receiver properly, the
sensor's code must match with the receiver's code. Code connectors 1
to 6 can be found by opening the battery cover and the back cover of
the receiver. User is required to set these code connectors randomly
and the code settings on the sensor and receiver must be the same.
Each position of the code connector can be set to "+", "-" or "0" position.
Refer to the diagram below to set the code connectors properly. If the
connector is placed on the top and middle posts, that column is set on
" + ". If the connector is placed on the middle and bottom posts, that
column is set on " - ". If the connector is removed completely, (not placed
on any posts), it is set to " 0 ". (see diagram for examples of how to set a
column to the three different positions).
'+'
Code Connectors on Motion Sensor
Note: If you experience interference from a nearby system, which could
accidentally trigger your system, please change the code settings on the
sensor and receiver. The code setting on the sensor and receiver should
still match after changing the code setting.
2. ZONE CONNECTORS
2. SET UP CODE CONNECTORS AND ZONE CONNECTORS (CONT)
Each receiver can work with up to 4 different sensors (to represent 4
different zones on the receiver). There are 2 connectors that determine
the zone number 1, 2, 3 and 4. These 2 connectors can be found by
opening the battery cover. Please follow table 1 to set the zone.
Zone connectors
"+" in the table means the connec tor for that position should be placed on
the posts.
"-" in the table means the connector for that position should be removed.
Model HA-318T
Indoor/Outdoor
Clip
Motion Sensor
Clip
' '
0
Note: A connector
'-'
can be removed
with the clip, as
shown.
A B
Zone 1 + +
Zone 2 + -
Zone 3 - +
Zone 4 - -
Table 1
3. POWER UP THE INDOOR/OUTDOOR MOTION SENSOR
1. POWER UP
After setting up all the connectors properly, the sensor is now ready to be
powered up.
Insert a 9V alkaline battery (not
included) to the motion sensor and its
LED will be on for 2 seconds. The
receiver will beep and red LED flash.
The sensor requires a warm up time
of approx. 45 seconds before it can
function properly. After powering up
the sensor, face it to the wall where
no motion will be detected. After 45
seconds, the sensor is ready. Wave
your hand in front of the sensor, the
receiver will beep and red LED will
flash for approx. 15 seconds.
2. SENSOR SENSITIVITY
The sensitivity of the motion sensor is adjustable. Change the setting by
placing the connector on either the "High" or "Low" position. When the
sensitivity is set to "Low", more movement is required to trigger the
sensor. It is recommended to set the sensitivity to "Low" and perform a
"Walk Test" (Described in Section 4 - "Walk Test"). If the walk test result
is satisfied, the sensitivity does not
require to be adjusted further. If the
walk test result shows the sensitivity
is too low, then you can change the
sensitivity setting to "High". Please
perform the walk test after changing
the sensitivity setting.
3. MOUNTING
A ball-head joint is necessary to mount the sensor at a desire location.
A height of 5-6 ft is recommended, depending on your application. Once
a location is selected, mount the ball-head joint to this location by screws
provided, (see diagram 1). Once the ball-head joint is mounted to the
wall, slide the back of the sensor into the ball-head joint (see diagram 2).
The mounting angle can be adjusted. Please refer to Section 4 "Walk
Test" to determine the best mounting angle.
Diagram 1
4. WALK TEST
After mounting the sensor at the desired location, it is
important to perform a walk test in order to determine
if the sensor is detecting the things you want to detect.
In order to control how far the sensor can "see", this can be done by
adjusting the angle of the sensor. To reduce the detection range, simply
move the sensor downward. To increase the range, move the sensor
up to around 12 degrees. This will give the maximum range. However,
this may not be desired if the sensor is placed outdoors, since a false
trigger may occur if the sensor is set to detect motion in a distance.
You should walk in the area that you would like the sensor to monitor. The
receiver will beep if the sensor detects your movement. If the receiver
does not respond, adjust the mounting angle accordingly. Perform the
walk test again after 30 seconds. Repeat this procedure until your motion
is detected. There should be no movement in the detected area during the
30 seconds.
Insert 9V alkaline battery to the sensor
Sensitivity Connectors on Motion Sensor
Diagram 2
