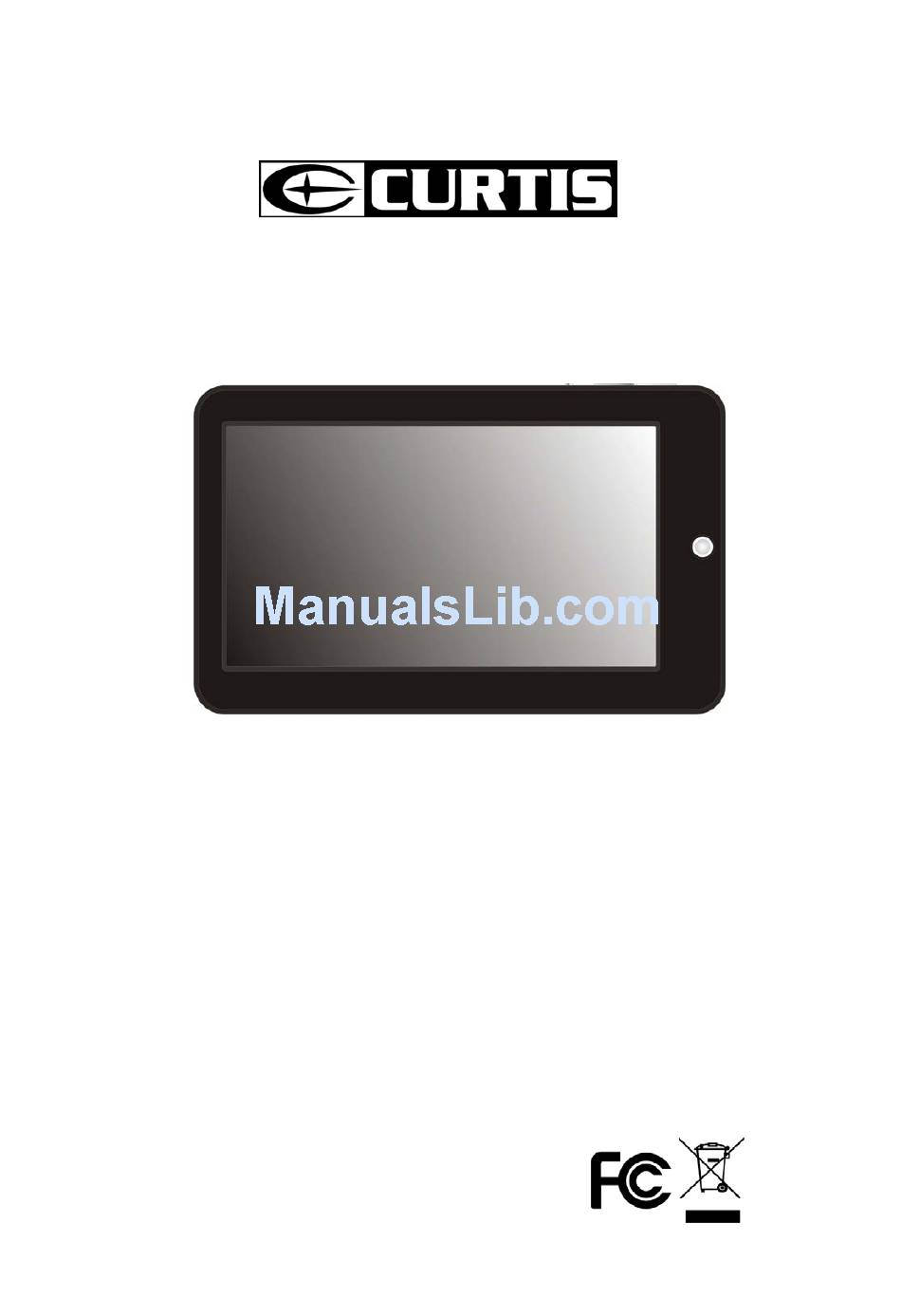

  • Page 1 LT7028 USER’S MANUAL...

  • Page 2: Table Of Contents

    Contents 1. Safety Notices…………………………………………………………4 2. Ready to use…………………………………………………………..5 2.1 Packing List………………………………………………………5 2.2 Appearance………………………………………………………6 2.3 Instructions on Keys…………………………………………….6 2.4 Features Overview…………………………...…….……………7 2.5 Technical Specifications………………………………………...7 3 Quick Guides……………………………………………………..……9 3.1 Touch Panel Calibration…………………………………….…..9 3.2 Switch On/Off………………………………………………….…9 3.3 Orientation Sensor Setting…………………………………….10 3.4 Battery management and charging………………………..…11 3.5 Operation of the function Icon ……………………………….11 3.6 WIFI Setting ……………………………………………………12 3.7 USB-HOST Function ………………………………………….16...
  • Page 3 4.4.4.4 Application Program Settings ………………………35 4.4.4.5 TF Card and Device Storage Settings …………….36 4.4.4.6 Language Keyboard Settings ………………………37 4.4.4.7 Date and Time Settings ……………………………..38 4.4.4.8 Touch Screen Calibration ………………………...…39 4.4.4.9 About the Device …………………………………..39 4.5 Desktop Function Icon Settings ……………………………..40 4.5.1 Add &...

  • Page 4: Safety Notices

    Safety notices 1 ) Please keep the device away from strong magnetic field in order to avoid the damage to the product 2 ) Please do not let the player fall or rub or compact with hard objects during using, or it may cause surface scratch of the player, battery loose, data lose or damages of other hardware.

  • Page 5: Ready To Use

    15 ) Only qualified maintenance personnel can install or repair the device 16 ) Please use the original accessories and battery, don’t use the incompatible products 17 ) The device is not waterproof, please keep it dry 18 ) For the sake of data safety, please back up the important information of the MID or keep a handwritten record.

  • Page 6: Appearance

    2.2 Product Appearance 2.3 Instructions on Keys Symbol Name Description MIC/RESET Press this button shortly to reset the system when the device is halted. POWER Press this button shortly to enter sleeping/wake up mode, press long to switch ON/OFF MENU Press this button shortly to enter the submenu Press shortly to return, press long to...

  • Page 7: Features Overview

    Host Port for external USB Driver,3G Port Dongle, Mouse, etc Display HD Display area 2.4 Features Overview Adopt the RK2818B as the main chip, ARM embedded Dual CPU Structure（ARM600MHZ+DSP550MHZ）,ANDROIED2.1 smart operation system 7” high resolution TFT touch panel LCD display, 800 x 480 pixel resolution Support 2GB-8GB...
  • Page 8 LCD Display Size 7.0” TFT touch panel LCD display,160k color Resolution 800*480 PC interface High speed USB2.0(FS) Built-in Flash Flash Memory ：2GB~8GB Built-in RAM RAM：DDRII 128MB(256MB option) Capacity Expansion Support TF Card，capacity 128MB~32GB Built-in 3.7V@3500mAH Lithium rechargeable Power Supply battery AC charger:Input:AC110V~240V, Output:DC 5V@2A MP3 、WMA、OGG、...

  • Page 9: Quick Guides

    3 Quick Guide 3.1 Touch Panel Calibration When there are offset and invalid tap on the touch panel, please press and hold the “ESC” key for 3 seconds to log into the interface of the Touch Panel Calibration, tap the center of the “Cross” indicated by the red circle one time, the screen will display “Calibration Successful”...

  • Page 10: Orientation Sensor Setting

    the “POWER” key for 3 seconds, the screen will display the power off interface, choose the power off item to confirm, the system will shut automatically 【Note】When the device with low battery it will alarm continuous and shut automatically without charging. If the device can not start up please check if the battery is low, and try it again after the battery is charged 3.3 Orientation Sensor Setting...

  • Page 11: Battery Management And Charging

    3.4 Battery management and charging a. Charge the battery at about 8-12 hours to make sure the battery is fully charged at the first time. b. Insert the micro port of the battery adaptor into DC slot on the device, and connect the other side with the power socket. Then the Power indicating lamp of the device is in high light blue color, the desktop icon of the battery keep rolling which shows it is...

  • Page 12: Wifi Setting

    Note when Back to main the system menu finds new devices. Show Set the alert current time power status The current Reduce the system time volume Louder the back volume Menu for menu Function Block. Google Switch the search interface System WIFI on/off clock...
  • Page 13 b. Set the WIFI and connect to the network: Press “Wifi setting” to enter into the wifi, the system will find the WIFI name automatically. Please refer to the picture as below, it has found two WIFI network name: c. IP address setting and connection: There are two setting methods to set the IP address.
  • Page 14 Press the right top menu “ ” on the screen and press “save” when complete this setting, see the figure as below: Press back when complete saving, press the WIDI network name, For example, double press “KW”, then it will to enter into a interface to ask you input the code.
  • Page 15 Press the in the right top of the screen to press “save”, see the figure as below: Back to press the WIFI network name when complete saving. For example: press “KW” Then it will have an interface, asking for input the code, input the right code, and then press the “finish”.

  • Page 16: Usb-Host Function

    Connection information 3.7 USB HOST Function: a. Turn on The USB- HOST: Press menu icon , enter into the function list, press “setting” to enter into setting interface, press “USB Mode select” to select the “HOST MODE” ad it shows in the red circle as below: b.

  • Page 17: Hdmi Function

    c. External 3G USB Dongle： Insert the 3G USB- Dongle in to the Host port, connect with the internet directly. 3.8 HDMI Function: Enjoy the high definition video in the Video player function. Connect the TV with the device by the high definition cable, that is, connect the HDMI output Port with the TV input port.

  • Page 18: Tf Card Storage

    3.9 TF Card Storage There is a TF card slot in this device, it support reading the files in TF card. Insert the TF card into the card slot in right way, when take it out, just push the TF toward to the inside, then the slot will release the TF card, the TF card will pop out automatically, take it then.
  • Page 19 After entering, select the APK format setting program in the right side, tap to install, back to the main interface when complete this operation, then it finished the installing, and there is a relevant software menu accordingly. • Manage ：Tap manage and enter into the third part software interface.

  • Page 20: Operation Details

    4 Operation details: 4.1 Desktop System 1(Multimedia Music / Video / Picture / Recording) 4.1.1 Music Enter the music player：In the programs interface, tap the icon into the main interface of Music Player, Double-click the favorite in the list to play music as shown in the following picture： Drag the playing progress bar ，...
  • Page 21 Button Instruction button Instruction Artist Album song Playing Music list Random Play Loop playback Play last Play next song song Pause play Audio player In the main menu or desktop, click the icon to play the audio When no music files in the audio player playlist, the system will automatically load the music files from the card to the audio player playlist after turning on the audio player (the device supported audio file format: mp3, wav, midi, wma).
  • Page 22 In the music playing interface, tap enter the audio playing list Drag the playback progress bar to adjust audio playback progress Audio player buttons description button description button description Browse online music searching the playlist artist album other to view the music files of disc audio Playlist switch to audio playing...

  • Page 23: Video

    4.1.2 Video In the main menu or desktop, tap the icon to enter the video player interface, open the video files, Double-click the favorite in the list to play as shown in the following pictures the device supported audio file format: MKV、AVI、RM、RMVB、 MP4、MOV、VOB、DAT、FLV、3GP When no video files in the video player playlist, the system will automatically load the video files from the card to the video player...

  • Page 24: Picture

    Play and pause a video Video format 16： 9 /4： quit menu lower the volume raise the volume Click this button to set up delete bookmark, play mode, TV-Out, HDMI etc. See the figure as below Tap play mode to select one of play modes: single, repeat one, repeat all, or tap back to A menu.
  • Page 25 Picture Browser button description: description description button button Previous image Zoom in Zoom out Next image Enter the Image Slide Brightness Setup mode Rotate the Rotate image image 900 degree clockwise counterclockwise Quit the interface of Image settings Image Browser Adding image（supports the format of picture：BMP、JPG、...

  • Page 26: Recording

    4.1.4 Recording function In the main menu or desktop, tap the record icon to enter the record interface, tap record button to start recording, tap this button to stop recording, the system will remind you to use this recording or give up, please select manually. Recording playing: please select audio player to play the recording, firstly select the record files from the explorer, then click it and playing, further details please refer to 4.1.1(audio player).

  • Page 27: Desktop System 2 (Shelves)(E-Book Function)

    4.2 System desktop 2(Shelves)(E-Book Function) Support formats of E-Book: TXT、 LRC、 PDF、 Html、 Htm、 EPUB etc., Support automatic browsing, zooming, bookmarks, page etc. 4.2.1 Shelves (E-Book Function) In the main menu or desktop, tap Shelves application icon to read the e-book. Open the folder and select the text file；...

  • Page 28: Desktop System 3(Web Applications)

    automatically jump to the specified page. Bookmark setting: tap bookmark icon to add, delete display the Bookmarks. Outline: tap the outline icon to view the outline of book Book info: tap book info icon to view the book name and information of the author.

  • Page 29: Email

    to operate. 4.3.2 Email Inbox Auto enter inbox interface when succeed in landing: This interface shows received E-mails, double click each E-mail, to check, reply to sender, reply to all, etc. Button Description Button Description New Email Refresh Account Check label Search Setting Edit E-mail...

  • Page 30: You Tube Online Video

    on the contrary, tap it again to delete. Tap Attach icon to add E-mail attachment. Tap Edit Subject icon to enter subject line and edit directly; Tap Discard icon to give up writing E-mail; Input receiver address & relevant information, Tap Send icon send E-mail;...

  • Page 31: Desktop System 4(Other Functions)

    4.4 Desktop System 4 (other functions) 4.4.1 Calculator Click Calculator icon on the desktop to open calculator: 4.4.2 Alarm Clock Tap Alarm Clock icon enter setting interface, you can select the√ behind the clock time to set three clocks simultaneously, details as below: tap any of above clock time to set up: time, bell, vibration, repeating and label.

  • Page 32: Apk Installer

    4.4.3 APK Installer Tap APK installer icon on main menu or desktop enter installing interface, to get details from 3.10 APK chapter. 4.4.4 Device Setting of main menu or desktop to set wireless and network, sound and backlight, location and safety, application and so on, slide on screen to page up/down 4.4.4.1 Wireless And Network Settings Details please refer to WIFI setting in Chapter3.6...
  • Page 33 c. Set operating sound (screen choosing) and TF card notifications as optional, tap and tick till highlight displaying. Display settings： a 【Orientation】 The display screen will change the direction automatically when it rotating b 【Animation】 Display all animation in all windows to adjust brightness，tap “OK”...

  • Page 34: Location And Security Settings

    d 【Screen timeout】 4.4.4.3 Location and Security settings Tap ‘Location and Security” to enter the setting interface: Set unlock pattern Tap “set unlock pattern”, then tap...

  • Page 35: Application Program Settings

    Draw the unlock pattern, at least to connect 4 points, tap “next” ,then finish. 4.4.4.4 Application Program settings Tap Application to enter setting interface: Manage applications settings： Tap 【 Manage applications 】 to manage or delete installed applications...

  • Page 36: Tf Card And Device Storage Settings

    Running service settings: Tap【Running service】to see and control the running service Development setting：advised to use factory defaults, or any change will make some function not available 4.4.4.5 TF card & device storage settings Tap TF card & device storage to enter following to check total space, available space, format TF card, etc...

  • Page 37: Language Keyboard Settings

    4.4.4.6 Language Keyboard Settings Tap【Language Keyboard】to enter setting interface Language Setting： The device support multi-languages, you can select operation interface of different languages according to your needs. Select matching language option, tap to confirm and back...

  • Page 38: Date And Time Settings

    Android Keyboard setting： 4.4.4.7 Date & Time Setting: Select Setting Menu > Date and Time into setting interface, select the √ behind the Automatic option , to modify the Date, Time Zone & Time. Date Setting: ： to select Day, Month & Year, and tap icon confirm OK Time Zone Setting：...

  • Page 39: Touch Screen Calibration

    Time Setting： to select hours & minutes, e.g.: 10:50, and tap icon to confirm OK。 Date Format Setting： 4.4.4.8 Touch Panel Calibration Details refer to3.1 Touch Panel Calibration Section Chapters 4.4.4.9 About the Device • Check power consumption, legal information, device state & software version, etc.

  • Page 40: Desktop Function Icon Settings

    4.5 Desktop Function Icon Setting 4.5.1 Add & Remove Desktop Function Icon: Tap icon at top-left corner of main interface, into desktop setting interface, you can select wallpaper and add widget, etc. Shortcut Icon: Tap icon into desktop widget interface as follow: Select shortcut icon to add to main interface, tap the matching option to add.

  • Page 41: Wallpaper Setting

    etc to add： 4.5.2 Wallpaper Setting: Tap icon , to change the wallpaper and select the picture you want, , wallpaper setting successed. 4.5.3 Tap icon shortcut to search engine:...

  • Page 42: Shortcut Notification

    4.5.4 Shortcut Notification Tap icon to check the current notification status: 4.5.5 Add, Move or Delete Desktop Icon Tap icon at the main interface, into function menu list, display all the application icons by pages. Press and drag the application icon to copy to current desktop i.e.

  • Page 43: Troubleshooting

    5. Troubleshooting Can not turn on the device. You can not turn on the device when the is below the critical level, please charge the battery connect to the computer via USB cable or charge via AC charger, try to turn on again while ensuring quantity of electricity.
  • Page 44 Please check if the memory space is full. Please check if the USB cable is broken Specifications are subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any mean, electronics or mechanical including photocopying and recording or translated to another language for any purpose...
