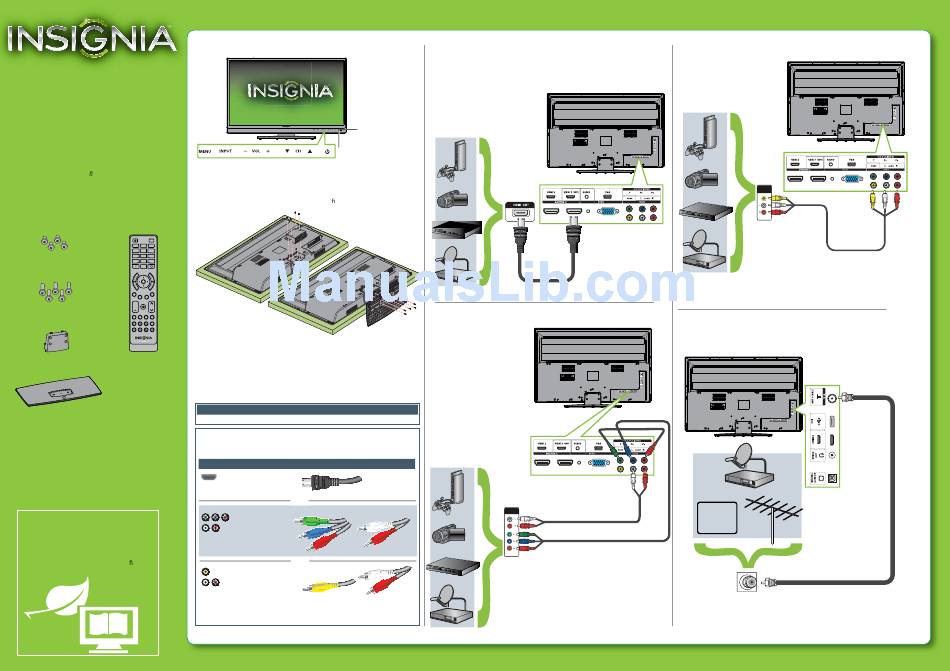

Insignia NS-42D240A13 Quick Setup Manual

42" 1080p LED TV
QUICK SETUP GUIDE
NS-42D240A13
Thank You
for purchasing this ne Insignia television.
We hope you enjoy the quality and reliability
of this product for years to come.
_______________________________
TV
VIDEO HDMI ACC
1 2 3
4 5 6
M4 screws (10 mm length) (4)
7 8 9
0
ENTER
N I P U T C C D
CH-LIST FAVORITE
+
MUTE
VOL CH
M4 screws (16 mm length) (5)
SLEEP ZOOM MTS/SAP PICTURE
AUDIO
Stand column Remote control and
2 AAA batteries
TV base
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
Front features
Power
indicator
Remote
control sensor
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the stand column to the screen using the four short screws (provided).
3 Secure the base to the stand column using the ve long screws (provided).
M4 x 10mm
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type
Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI 1/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Note: Cable is not provided.
Using component cables (better)
M4 x 16mm
AUDIO/VIDEO
OUT
Note: Cables are not provided.
Using an AV cable (good)
Note: Connect your Yellow
video cable to the Green Y/Video jack.
AUDIO/VIDEO
OUT
Note: Cable is not provided.
Connecting an antenna/cable wall jack
Connect a coaxial cable to the TV IN ANT/CABLE jack of your TV and to the
antenna/cable wall jack.
CABLE
Note: Cable is not provided.
