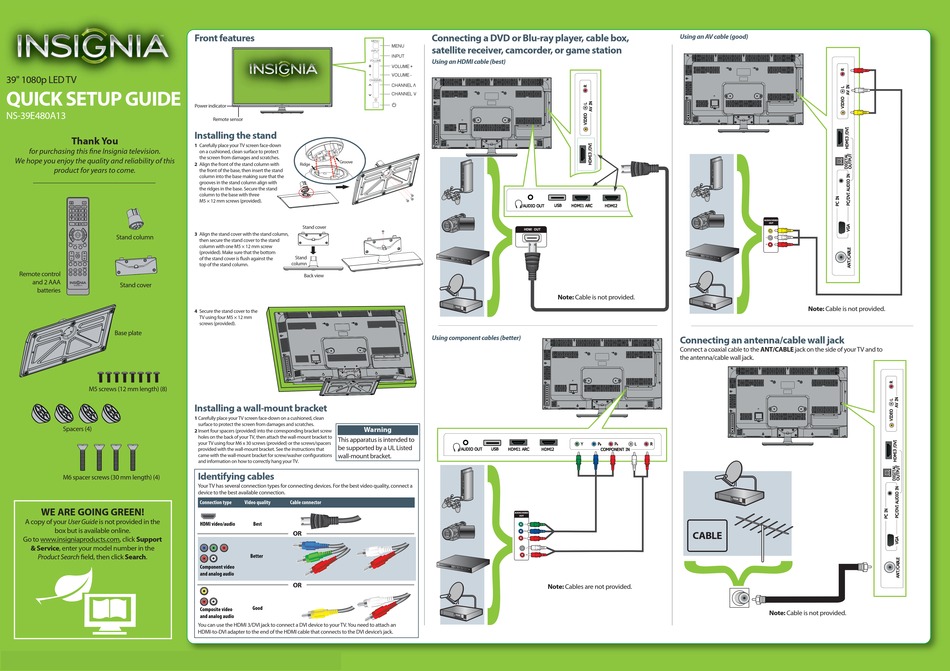

QUICK SETUP GUIDE

NS-39E480A13
Thank You
for purchasing this fine Insignia television.
We hope you enjoy the quality and reliability of this
product for years to come.
_______________________________
Stand column
+
Remote control
and 2 AAA
Stand cover
batteries
Base plate
M5 screws (12 mm length) (8)
Spacers (4)
M6 spacer screws (30 mm length) (4)
WE ARE GOING GREEN!
A copy of your User Guide is not provided in the
box but is available online.
Go to www.insigniaproducts.com, click Support
& Service, enter your model number in the
Product Search field, then click Search.
Front features atures atu es atures
MENU
INPUT
VOLUME
CHANNEL
Power indicator
Remote sensor
Installing the stand
1 Carefully place your TV screen face-down
on a cushioned, clean surface to protect
the screen from damages and scratches.
Groove
2 Align the front of the stand column with Ridge
the front of the base, then insert the stand
column into the base making sure that the
grooves in the stand column align with
the ridges in the base. Secure the stand
column to the base with three
M5 × 12 mm screws (provided).
Stand cover
3 Align the stand cover with the stand column,
then secure the stand cover to the stand
column with one M5 × 12 mm screw
(provided). Make sure that the bottom
Stand
of the stand cover is flush against the
column
top of the stand column.
Back view
4 Secure the stand cover to the
TV using four M5 × 12 mm
screws (provided).
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean
surface to protect the screen from damages and scratches.
Warning
2 Insert four spacers (provided) into the corresponding bracket screw
holes on the back of your TV, then attach the wall-mount bracket to
This apparatus is intended to
your TV using four M6 x 30 screws (provided) or the screws/spacers
be supported by a UL Listed
provided with the wall-mount bracket. See the instructions that
came with the wall-mount bracket for screw/washer configurations wall-mount bracket.
and information on how to correctly hang your TV.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality, connect a
device to the best available connection.
Connection type Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI 3/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
MENU
satellite receiver, camcorder, or game station
INPUT
Using an HDMI cable (best)
VOLUME +
VOLUME -
CHANNEL V
CHANNEL V
Note: Cable is not provided.
Using component cables (better)
AUDIO/VIDEO
OUT
Note: Cables are not provided.
Using an AV cable (good)
AUDIO/VIDEO
OUT
Note: Cable is not provided.
Connecting an antenna/cable wall jack
Connect a coaxial cable to the ANT/CABLE jack on the side of your TV and to
the antenna/cable wall jack.
CABLE
Note: Cable is not provided.
