Lightolier Lytespan 8120 Specification

Page 1 of 2

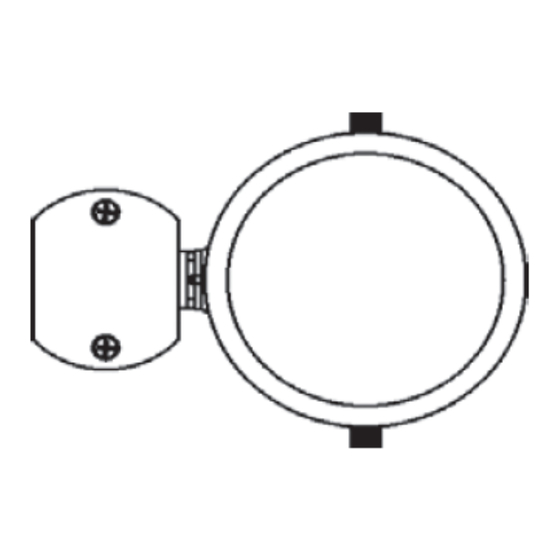

6 3/4"
(172mm)
8"
(203mm)
Catalog No.
8120WH
8120bk
8120AL
Features
1. Track Attachment Fitting: Molded polycarbonate, rotates into track and
locks into place with integral color.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum.
4. Movable Contact: Solid Brass. Extends for connection to 2nd Spot circuit in
Advent track.
5. ballast Housing: Extruded aluminum housing with die-cast
aluminum covers.
6. ballast: High Power Factor metal halide electronic ballast. Mounting
Thermally protected, 0.40A maximum input current, maximum 45W
input power.
7. Pivot Mounts: Allows for 350° horizontal and 180° vertical rotation aim.
Ceiling and horizontal or vertical wall mounted.
8. Lamp Housing: 0.04" (1.02mm) aluminum.
9. Lampholder: Lock G8.5 base bi-pin, self centering lamp design. 5kV (750V)
pulse rated porcelain body socket with nickel-plated contacts. 18 AWG
silicone leads with fiberglass outer sleeve inside of the lamp housing.
10. Reflector: 0.02" (0.51mm) embossed anodized blasted specular aluminum.
11. Protective Glass: 0.13" (3.18mm) tempered glass.
12. Housing Cover: 0.04" (1.02mm) aluminum.
13. knobs: Color steel knurled knob.
Lightolier is a Philips group brand
5.25"
(133mm)
Finish
White
Black
Aluminum
Lytespan Track Lighting System
®
Cylinder Flood 34° Mini HID 39W T4.5 CMH Lamp
3 7/16"
(87mm)
(119mm)
11/16" 4
Lamp
G8.5 Bi-PIN
39W T4.5 CMH (M130)
Not Included
Accessories (Holds one accessory only)
Holder: 8195
Diffusion/Special Filters: AF25 series
Color Filters: ADF25 series
Louver (Hex Cell): AL25HC series
Mounting
All Monopoint, Multipoint, recessed track, suspension track, suspension stems,
sloped ceiling adapter, Basic Radius and Advent track systems only. Ceiling and
horizontal or vertical wall mounted. Not compatible with ProSpec track system.
Finish
All painted finishes are baked powder or enamel.
Markings cCSAus Certified for dry locations only
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • F0109
4 11/16"
(119mm)
(87mm)
7/16" 3
Type:
8120
