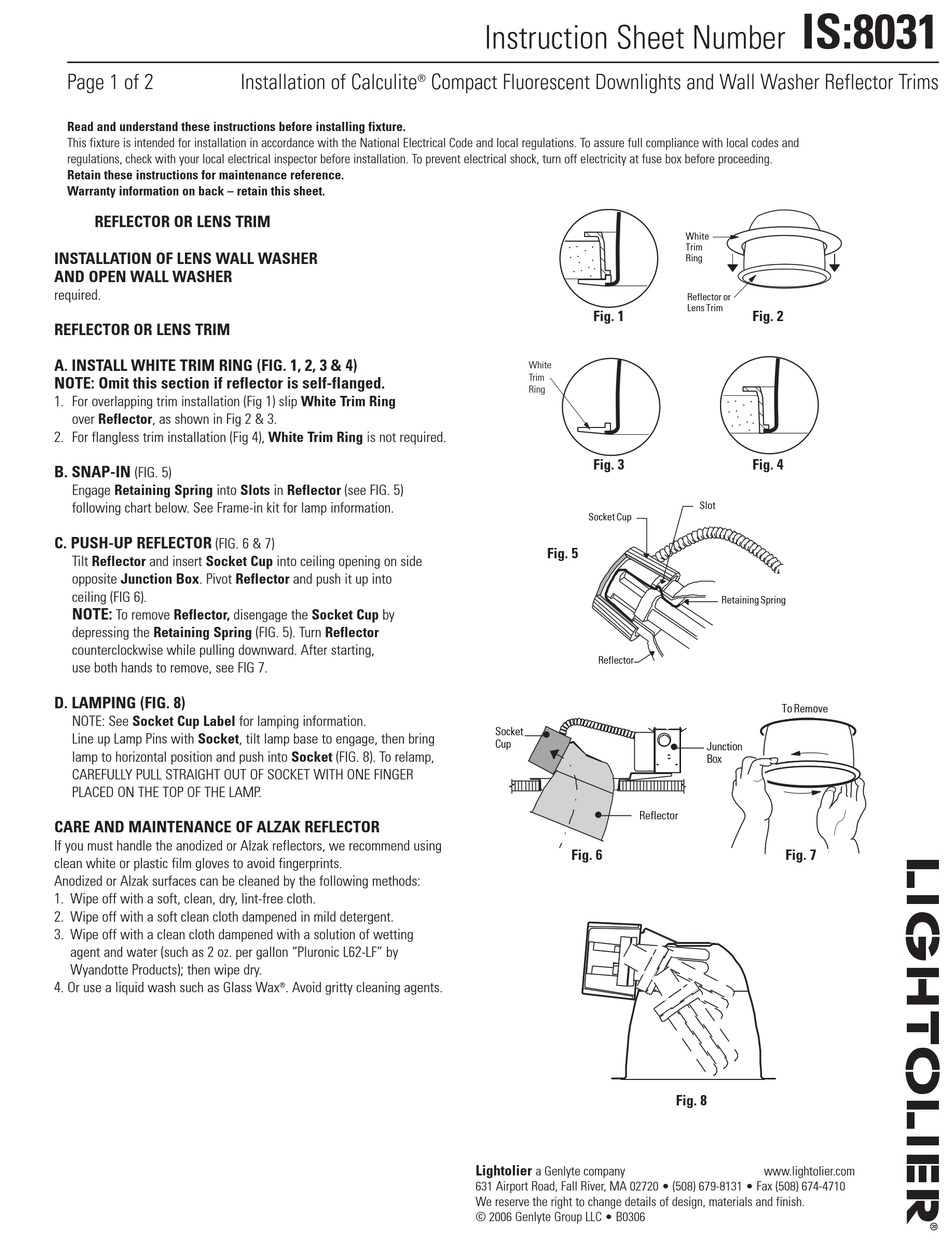

Lightolier Calculite Compact Fluorescent Downlights Installation Instructions

Page 1 of 2
Read and understand these instructions before installing fixture.
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To assure full compliance with local codes and
regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
Warranty information on back – retain this sheet.
REFLECTOR OR LENS TRIM
INSTALLATION OF LENS WALL WASHER
AND OPEN WALL WASHER
required.
REFLECTOR OR LENS TRIM
A. INSTALL WHITE TRIM RING (FIG. 1, 2, 3 & 4)
NOTE: Omit this section if reflector is self-flanged.
1. For overlapping trim installation (Fig 1) slip White Trim Ring
over Reflector, as shown in Fig 2 & 3.
2. For flangless trim installation (Fig 4), White Trim Ring is not required.
B. SNAP-IN
(FIG. 5)
Engage Retaining Spring into Slots in Reflector (see FIG. 5)
following chart below. See Frame-in kit for lamp information.
C. PUSH-UP REFLECTOR
(FIG. 6 & 7)
Tilt Reflector and insert Socket Cup into ceiling opening on side
opposite Junction Box. Pivot Reflector and push it up into
ceiling (FIG 6).
NOTE:
To remove Reflector, disengage the Socket Cup by
depressing the Retaining Spring (FIG. 5). Turn Reflector
counterclockwise while pulling downward. After starting,
use both hands to remove, see FIG 7.
D. LAMPING (FIG. 8)
NOTE: See Socket Cup Label for lamping information.
Line up Lamp Pins with Socket, tilt lamp base to engage, then bring
lamp to horizontal position and push into Socket (FIG. 8). To relamp,
CAREFULLY PULL STRAIGHT OUT OF SOCKET WITH ONE FINGER
PLACED ON THE TOP OF THE LAMP.
CARE AND MAINTENANCE OF ALZAK REFLECTOR
If you must handle the anodized or Alzak reflectors, we recommend using
clean white or plastic film gloves to avoid fingerprints.
Anodized or Alzak surfaces can be cleaned by the following methods:
1. Wipe off with a soft, clean, dry, lint-free cloth.
2. Wipe off with a soft clean cloth dampened in mild detergent.
3. Wipe off with a clean cloth dampened with a solution of wetting
agent and water (such as 2 oz. per gallon "Pluronic L62-LF" by
Wyandotte Products); then wipe dry.
4. Or use a liquid wash such as Glass Wax
Installation of Calculite
®
. Avoid gritty cleaning agents.
®
Instruction Sheet Number
Compact Fluorescent Downlights and Wall Washer Reflector Trims
Fig. 1
F G I
White
Trim
Ring
Fig. 3
FIG. 3
Socket Cup
Fig. 5
Reflector
Socket
Cup
Fig. 6
F G I 6 .
