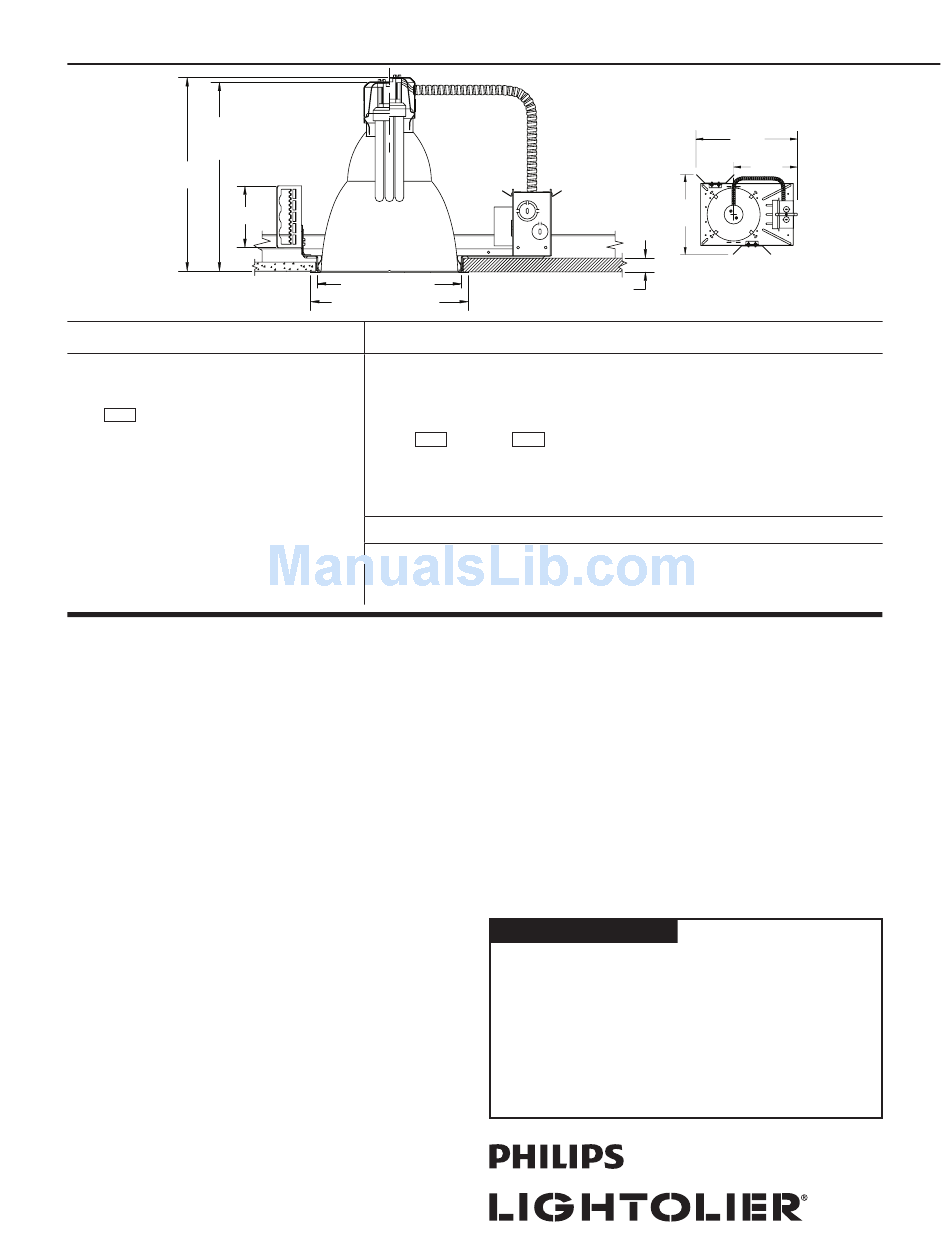

Lightolier Calculite 8022 Specification

Page 1 of 2
26/32W=10 3/8"
(264mm)
42W=11 1/8"
(283mm)
3" (264mm)
Reflector Trim
8022 CCLW Comfort Clear
™ , White Flange
8022 CCLP Comfort Clear , Polished Flange
™
8022 CCL Comfort Clear , Molded Trim Ring
™
8022 Add suffix. See options for other finishes.
Features
1. Reflector: 16 ga. Alzak
® aluminum, 50° visual cutoff to lamp and lamp
image, medium distribution. Comfort Clear™ low iridescence finish.
Self-flanged or flangeless with molded white trim ring (field paintable).
2. Socket Cup: Effectively dissipates heat and positions lamp holder.
Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other
6" Triple Tube reflectors (see S6132BU Spec Sheet).
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4"
or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit
wiring with max of (8) No. 12 AWG, 90°c supply conductors. Outboard
mounted to reduce heat transfer and maintain lamp efficacy and life. Service
from below without tools.
Electrical
Note: Note: For ballast electrical data and latest lamp/ballast compatibility refer
to "Ballast" specification sheet for complete electrical data.
UL Listed for through branch circuit wiring with max of (8) No 12 AWG, 90
degree C supply conductors.

Options and Accessories

Comfort Clear Finishes
™ 1
Diffuse CCD
CCZ
Champagne Bronze
Pewter CPW
Specify desired flange. W White, P Polished, Blank - Molded Ring
1
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0409
Calculite
7 3/8" Frame Dia. (181mm)
8 5/8" Frame Dia. (209mm)
OVERLAP
Frame-In Kit
S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7132BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S7132B or S7142B
CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
J2LD3
Lutron 5% Dimming (277V)
J1MX Mark 10 Dimming (120V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
7126BURM
7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))
7132BURM 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
7142BURM 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Other Finishes
White WH
Specular Clear CL
CFL Open Downlight
®
7 3/8" Aperture Triple Tube Vertical Lamp
(298mm)
1 1/8" (29mm) MAX
CEILING THICKNESS
JUM7 Mark 7 Dimming (120/277V)
J2MX Mark 10 Dimming (277V)
Options and Accessories (continued)
FA EM3E*
Emergency Ltg. Kit
FA EM4*
Fuse (Slow Blow) Add suffix F
Existing/Thk. Ceiling Plaster Trim Ring CA7FL
Emergency Add suffix EM*
Chicago Plenum Use 7142, BULC
*See Spec. Sheets: FAEM, FAEC
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
UL, CUL, I.B.E.W
Alzak is a registered trademark of ALCOA
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
8022
14 7/8"
(378mm)
9 3/8"
(238mm)
11 3/4"
Top View
Type:
