QuickSpecs
Compaq Deskpro Workstation AP230

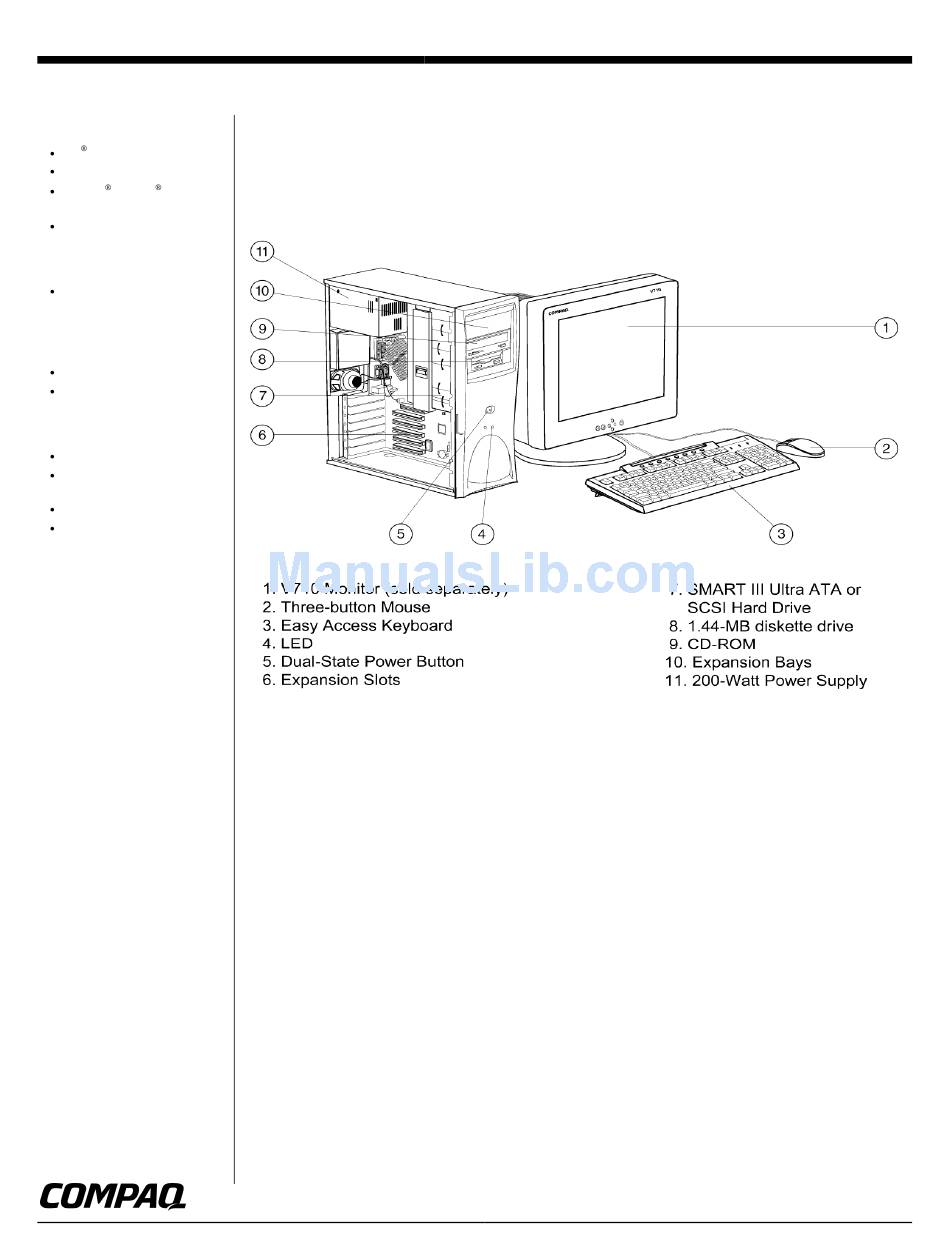

Overview
A t A G l a n c e
Intel 815E chipset
133 MHz Front Side Bus
One Intel Pentium III
processor up to 1.2 GHz
High-performance 10,000 rpm
and optional 15,000 rpm Ultra160
SCSI and Quiet Seek 7200 rpm
Ultra ATA hard drives
Choice of graphics controllers:
Matrox Millennium G450 dual,
NVIDIA Quadro2 EX, , ELSA
Synergy II, or NVIDIA Quadro2
MXR
Multi-display support
Convertible minitower form factor
with external drives that rotate
90°, easily converting from
minitower to desktop
Compaq Intelligent Manageability
Windows 2000 or Windows NT
4.0 pre-installed
Easy Access Keyboard
Protected by Compaq Services,
including a three-year, limited
warranty – Terms and conditions
vary by country. Certain
restrictions and exclusions apply.
DA-10843
North America — Version 6 — October 1, 2001
1
