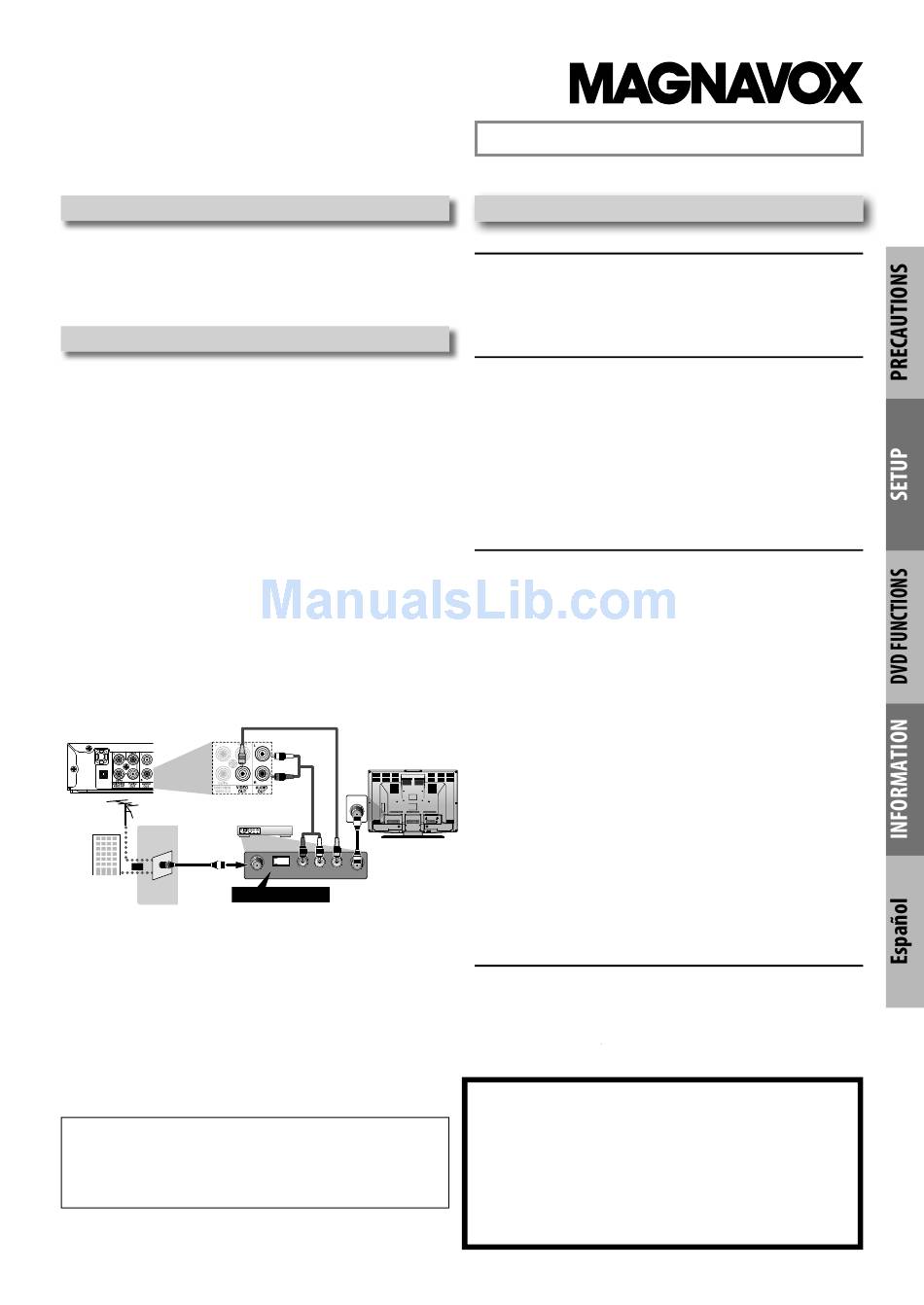

Owner's Manual
Please read before using this unit.
DVD Player
MDV3400
Supplied Accessories
• Remote Control (NB691UD)
• Audio / video cables
• SETUP MANUAL
Connecting to RF Modulator (Not Supplied)
If your TV has "Antenna In (RF in)" jack only, it is still
possible to connect this unit to your TV by using an RF
modulator.
In this case, follow the instructions below.
1) Disconnect the power cords of the devices from the
AC outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator's channel 3/4 switch to
either 3 or 4, whichever the TV channel is least
used in your area. If your RF modulator has a
modulator / antenna switch, set it according to the
manual supplied with the RF modulator.
4) Plug in the power cords of the devices to the AC
outlet.
5) Turn on your TV and choose the same channel as
you set the RF modulator's channel 3/4 switch to.
For more details, follow the manual supplied with the
RF modulator.
rear of this unit
rear of your RF
VHF / UHF
antenna
or
RF coaxial
cable TV
cable
company
Note:
• RF modulator is not supplied with this unit. You need to
purchase it at your local store.
• The quality of picture may become poor if this unit is
connected to an RF modulator.
© 2013 Funai Electric Co., Ltd.
Video cable
Audio
cable
rear of TV
ANT. IN
modulator
RF coaxial cable
3
4
R
L
ANT. IN
CHANNEL
AUDIO IN
VIDEO IN
TO TV
Set channel 3 or 4
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
Contents
PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS ..........................................2
About the Discs ............................................................................5
Playable Discs. .............................................................................................5
Unplayable Discs. .......................................................................................5
Connections .................................................................................6
Rear Terminals.............................................................................................6
Connection to a TV. ...................................................................................7
HDMI Audio..................................................................................................8
HDMI Mode and Actual Output Signals. ...........................................8
Connection to an Audio System. .........................................................8
About the Remote Control .........................................................
Remote Control. .........................................................................................9
Installing the Batteries for the Remote Control..............................9
Playback ...................................................................................
JPEG Playback ..........................................................................
Search Functions .......................................................................11
Using Track / File Search. ......................................................................11
Using Title / Chapter Search. ...............................................................11
Using Time Search. ..................................................................................11
On-Screen Display ....................................................................
Repeat / Random Playback ......................................................
Repeat Playback. ......................................................................................13
Repeat A-B Playback. ..............................................................................13
Random Playback. ...................................................................................13
Special Settings .........................................................................14
Subtitle Language....................................................................................14
Audio Language. ......................................................................................14
Camera Angles. .........................................................................................14
DVD Setting ...............................................................................15
System Setting. .........................................................................................16
Language Setting. ....................................................................................17
Audio Setting.............................................................................................18
Video Setting. ............................................................................................19
Other Setting. ............................................................................................20
Troubleshooting Guide .............................................................21
Specifications ............................................................................21
Español .....................................................................................
LIMITED WARRANTY .................................................................
Y Y
If you need additional operating assistance after reading
this owner's manual, please visit support website;
www.magnavox.com/support
or please call support center;
TOLL FREE : 1-800-605-8610
Before call, please check model name and serial number
pasted on the unit.
.9
.10
.11
.12
.13
.22
.23
