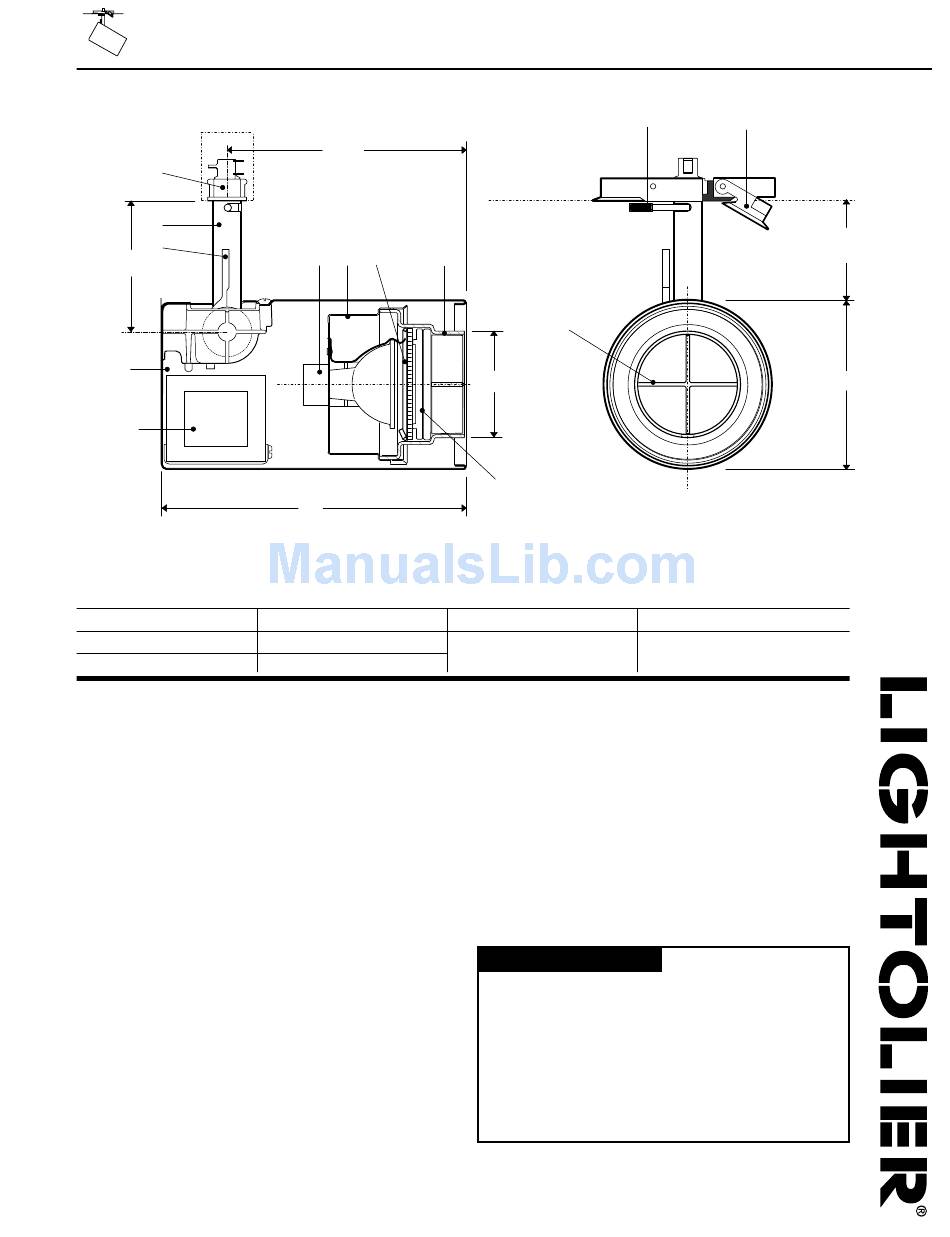

Lightolier ProSpec 26016 Specification

Page 1 of 2
1
2
3
3 1/4"
4
12
Fixture MOL = 9 1/2"
Ordering Information
Catalog No.
26016MBWH
26016MBBK
Features
1. Track attachment fitting: die-cast aluminum with separate mechanical and
electrical functions. Fitting cannot be engaged or disengaged while fixture is
powered. Polarity is not a concern with ProSpec track because of its sym-
metrical positioning of circuits within the track, adapters are reversed to
access one or the other circuits.
2. Stem: 5/8" O.D. .048" wall, stainless steel.
3. Locking feature: die-cast aluminum mechanism permits the locking of the
horizontal and vertical positions simultaneously by clamping jaws. When the
stainless steel braking lever is released, the horizontal and vertical functions
remain fully tensioned to hold aiming positions. Adjustment range is: hori-
zontal 0-340°; vertical 0° (NADIR) -90°.
4. Housing: 20ga. (.036") steel, hemmed front edge for stiffness, prevents chip-
ping and enhances appearance.
5. Lampholder: Steatite for GX/GY 5.3 Bi-Pin lamps. 250° C Teflon
6. Lamp and accessory support: .032 steel, flared for easy entry of cartridge;
matte black finish.
7. Lens retaining ring: .093" spring steel rod.
8. Accessory cartridge: Formed aluminum, installs and removes with a twist
and lock action. Holds three accessories max. and cross blade baffle.
9. Cross blade baffle: .070" extruded aluminum.
10. Lever: energizes fixture electrically by 90° rotation.
11. Clamping tabs: expands or releases gripper springs from track ledge; grip-
per springs hold attachment fitting securely within track.
12. Transformer: 50W magnetic transformer, 120V Primary, 11.5V Secondary.
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 2 / " dia. series. Filters, lenses, screens and louvers.
1
2
5 1/2"
5 6 7
8
7"
Finishes
Matte White
Matte Black
® leads.
ProSpec ™
ProSpec Track System
9
2 1/4"
Accessories
Ordered
Separately
Mountings
™
ProSpec Track System
Electrical
Electrical components: Polycarbonate moldings.
Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"
shaped track conductors.
Dimming
Dimming controls: use only dimmers specifically designed for use with
magnetic transformers, like Lightolier Onset
VA dimmers, or any Lightolier Controls dimming system. Low voltage
fixtures may produce audible sound when used with dimmers, which
may be objectionable in acoustically critical areas.
Labels
UL; I.B.E.W.
Teflon ® is a registered trademark of E.I. DuPont.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Track Lighting
Low Voltage Cylinder MR16
10 11
Lamps
MR16 50W Max.
® , Sunrise ® series LV or
Type:
www.lightolier.com
26016
1196
2 1/4"
Stem
3 3/4" Dia.
.
