Coleman Ridgeview 9271L133 Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard or
sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
position the end of tent into the wind.

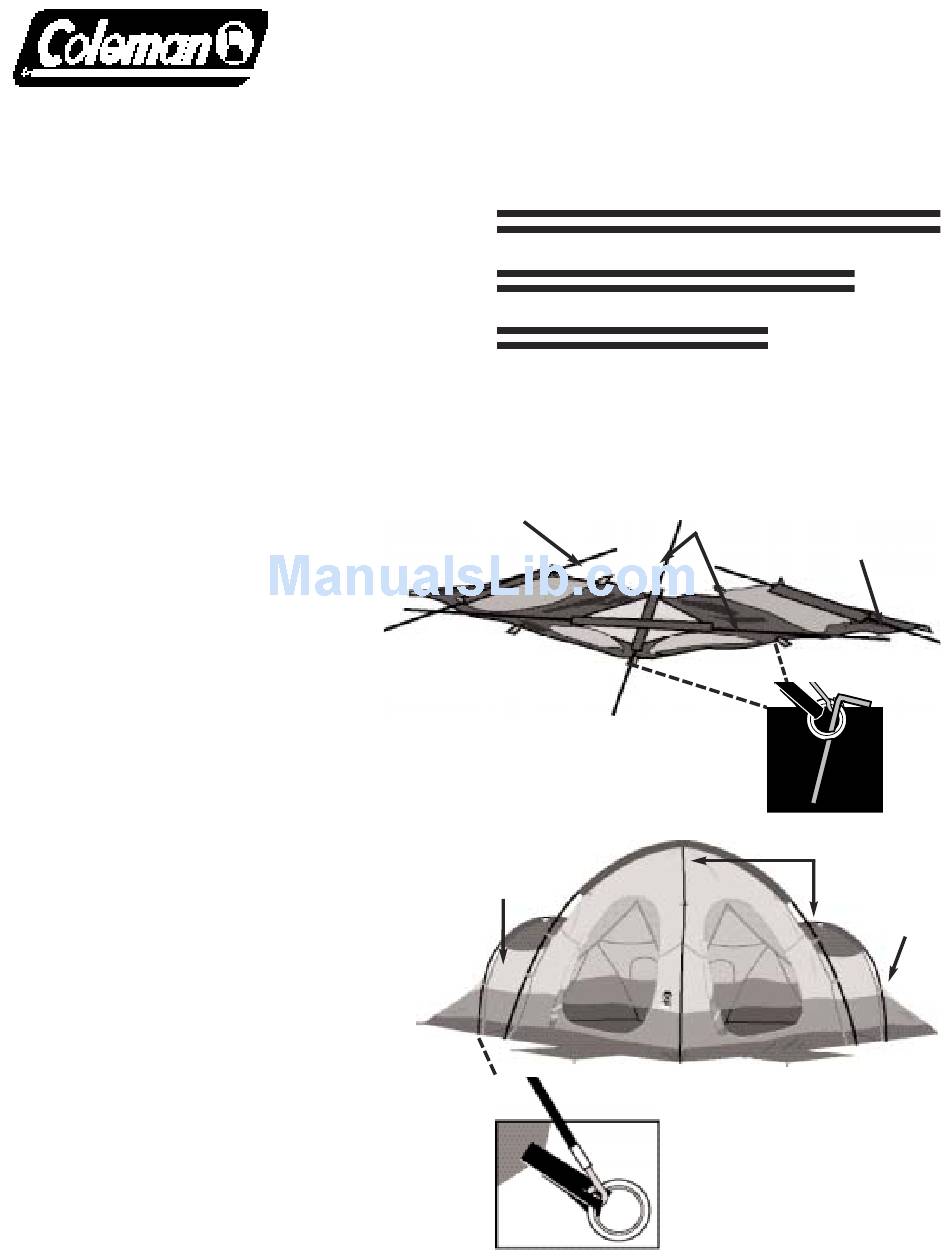

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with doors
facing desired direction. (illus. 1)
– Stake down tent corners,
using the tent stake loops.
Keep the floor taut. (illus. 2)
– Assemble all poles by interlocking
shock-corded poles.
– Insert the longer Center Frame Poles into
Center Pole Sleeves. The poles should cross
forming an "X" in the middle of tent. (illus. 1)
– Insert the shorter Side Frame Poles through the pole
sleeves located at the sides of tent. (illus. 1)
Connect Frame to Tent
2
– Unzip doors.
– Locate the Pin & Ring Systems on
either side of the front doors and the
corresponding Pin & Ring on the
back side of tent.
– Insert one end of Frame Pole onto
Pin & Ring System on tent stake loop
on either side of the doors. (illus. 3)
– Go to opposite end of pole diagonally
from starting point and gradually
apply pressure to the pole forming
an arch until you are able to insert
the Pin into pole end.
– Repeat for second pole.
– Attach tent frame clips to poles.
13'x13' Ridgeview
Instructions apply to Part Number 9271L133
POLE ASSEMBLY PARTS
Part No. 9270L102
(2) Center Tent
Poles
Part No. 9271L105
(2) Side Tent
Poles
Part No. 9270L103
(2) Rainfly Poles
Rainfly Part No. 9271L104
Side pole
Sidepole
illus. 1
Center poles
Door
illus. 2
stake through
stake loop
illus. 3
Ring & Pin System
Side pole
Door
Tent
Center poles
Sidepole
illus. 4
Center section upright
