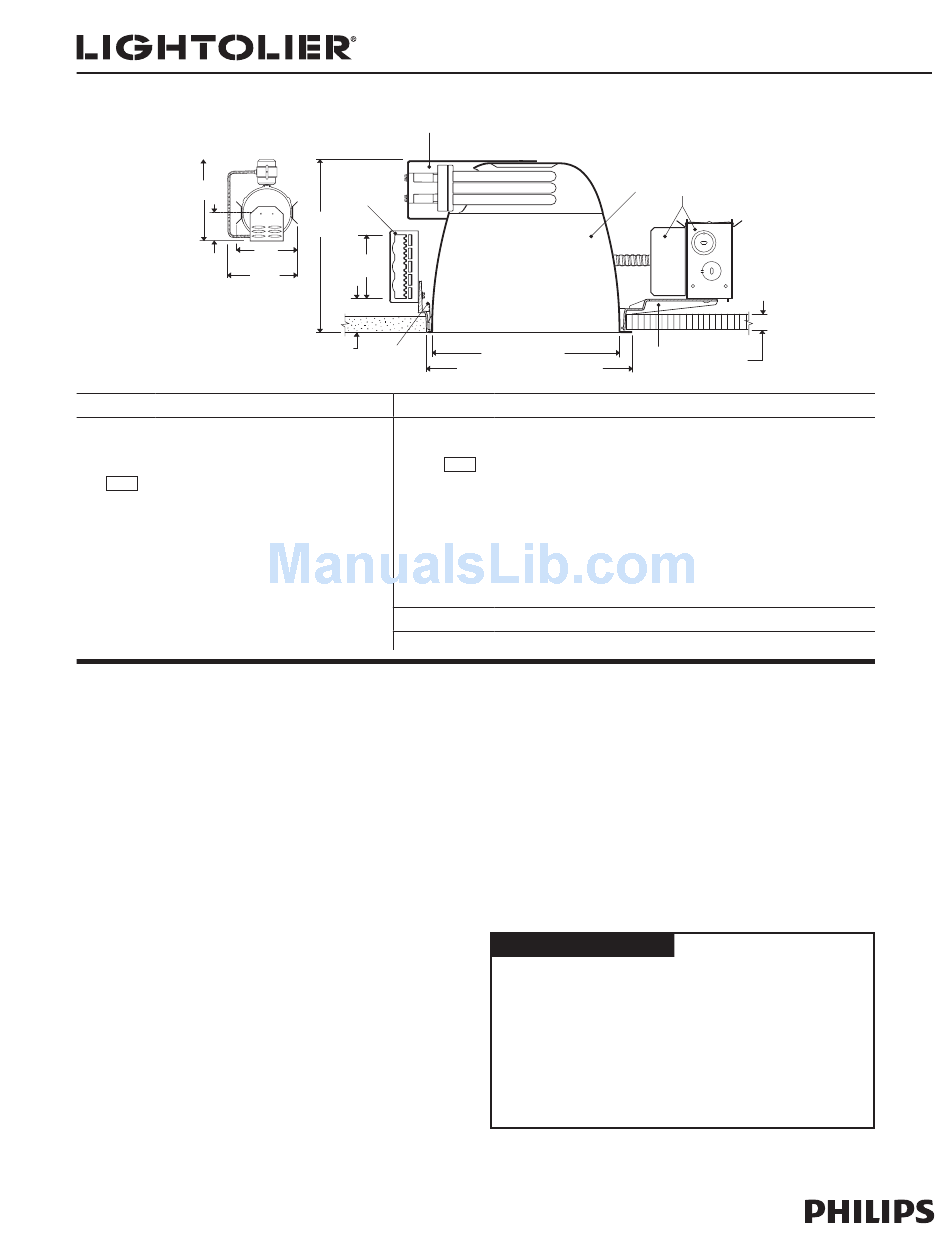

Lightolier Calculite 8038 Specification

Page 1 of 2
15-5/8" max.
(397 mm)
(146 mm)
Ceiling Cutout: 9 1/4" (235 mm) Dia.
Reflector Trim
8038 CLW Clear Iridescence Free, White Flange
8038 CLP Clear Iridescence Free, Polished Flange
8038 CL Clear Iridescence Free, Molded Trim Ring
8038 Add suffix. See options for other finishes.
Features
1. Reflector: 16 ga. Specular Alzak
lamp image, medium distribution. Iridescence Free finish. Self-flanged or
flangeless with molded white trim ring (field paintable).
2. Socket Bracket: Die-formed steel, vented. Attaches to reflector for correct
optical alignment.
3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL Listed for through branch circuit wiring with max of (8) No 12 AWG, 90
degree C supply conductors.

Options and Accessories

Comfort Clear Finishes
™
Clear CCL
Diffuse CCD
Champagne Bronze CCZ
Pewter CPW
1 Specify desired flange
W White, P Polished
Blank - Molded Ring
Lightolier is a Philips group brand
5
8"
(203 mm)
12-3/4"
(324 mm)
5-3/4"
3"
(76 mm)
14"
(356 mm)
Top View
1" (25 mm) min.-
2-1/8" (54 mm) max.
aluminum, 55° visual cutoff to lamp and
®
Other Finishes
1
White WH
Calculite
®
2
8-11/16" (226 mm) Dia.
4
9-3/16" Trimless 9-7/8" (251 mm)
(233 mm) Self-flange Trim
Frame-In Kits
S8242HU 8" aperture, 2 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Standard Dimming Options:
S8242H
CU3 Lightolier PowerSpec 3% Dimming (120/277V)
J1LD3 Lutron 5% Dimming (120V)
J2LD3 Lutron 5% Dimming (277V)
JUM7 Mark 7 Dimming (120/277V)
J1MX Mark 10 Dimming (120V)
J2MX Mark 10 Dimming (277V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
8242HURM 8" aperture, 2 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
Emergency
Chicago Plenum
Emergency Ltg. Kit
Fuse (Slow Blow)
*See Spec. Sheets: FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA
Labels
UL listed for damp locations, I.B.E.W.
Alzak is a registered trademark of ALCOA.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • F0711
CFL Open Downlight
8" Aperture (2) Triple Tube Horizontal Lamp
1 6
1-1/8" (29 mm) max.
3
Ceiling Thickness
Add suffix EM*
Add suffix LC
FA EM3E*
FA EM4E*
Add suffix F
Type:
8038
