Lightolier Tangent FX Specification

Page 1 of 3
3/16 in
[4.8 mm]
5
Ordering Information
Catalog No. Finish
FX04 Clear Anodized
FX08 Clear Anodized
FX12 Clear Anodized
FX25 Clear Anodized
FX48 Silver
FX61, FX61WH
Silver, White
FX52 Silver
FX53 Silver
FX54 Silver
FX55 Silver
FX87 Silver
FX89
Silver
FX96, FX96WH Silver, White
FX100 N/A
Features
Tangent Surface Track is a one-circuit electrical distribution system designed
to support and supply all Tangent lighting units in a flexible manner. The track
can be installed individually in straight runs or in a variety of patterns using
the appropriate connectors. The track can also be bent by hand in the field
or with an FX100 bending tool into curves with a minimum radius of 3'. All
track lengths can be field cut.
1. Tangent ™ Track: Anodized aluminum with a clear protective coating
2. Insulating Liner: Clear polycarbonate; houses conductors
3. Conductor (2): Tin plated copper
4. Polarity Dimple: Identifies the 120V line conductor
5. End Cap: Silver painted polycarbonate
Finish
Tangent track and mounting anchors are anodized aluminum with a clear
protective coating. Connectors and end caps are painted in a coordinating
silver finish. All painted finishes are baked enamel.
Electrical
Capacity is 20 amps at 120 volts 60Hz per branch circuit. The track units are
polarized and continuously grounded throughout. Electrical conductors are
contained in the polycarbonate extrusion. Track is intended for wiring to
branch circuit building wire with ground. All wiring must be in accordance
with National and Local Codes.

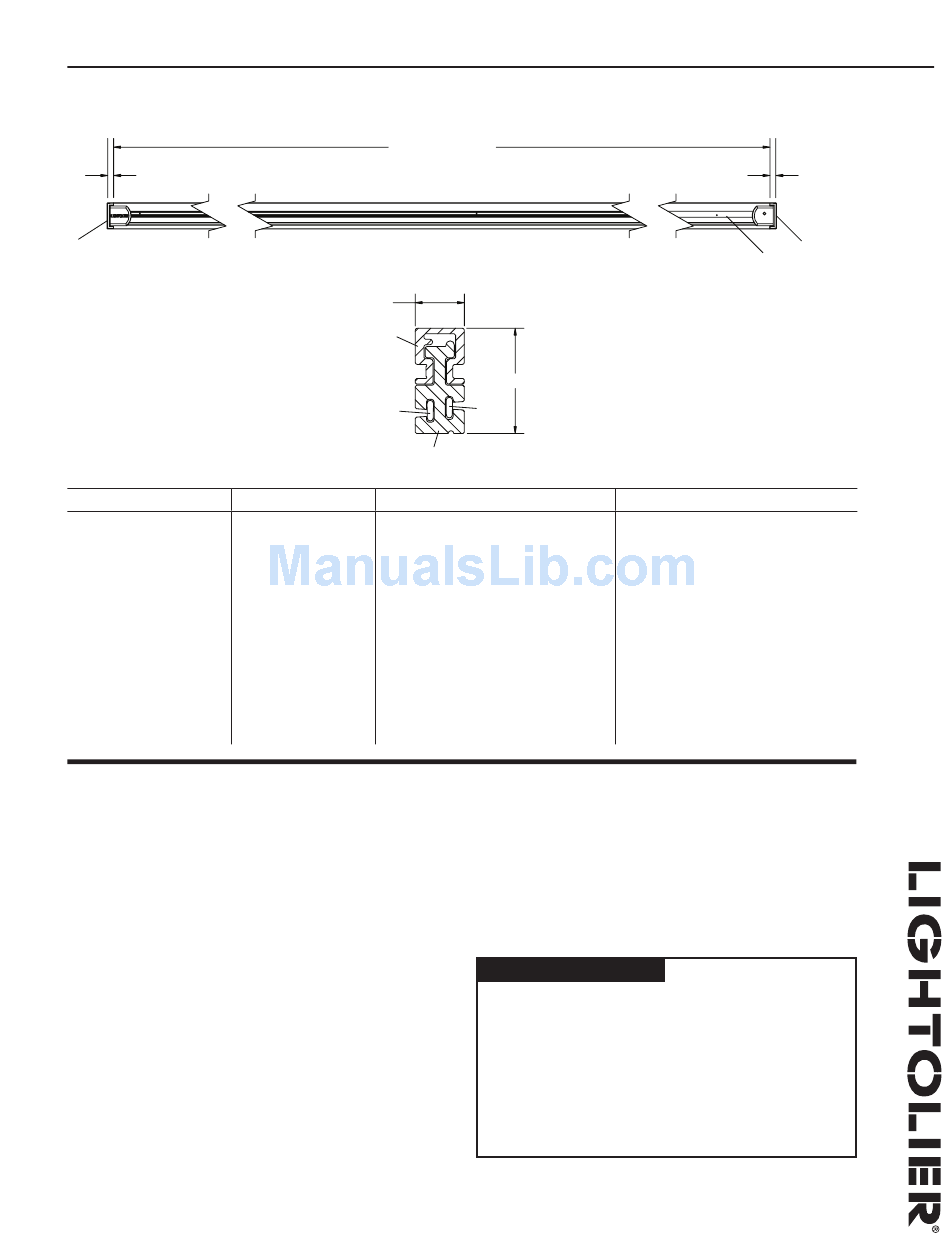

Tangent
47 5/8 in [1210 mm]
95 5/8 in [2489 mm]
143 5/8 in [3648 mm]
3/8 in [9 mm]
1
3/4 in [19 mm]
3
3
2
Description
4' Track
8' Track
12' Track
Mounting Anchors (5pk)

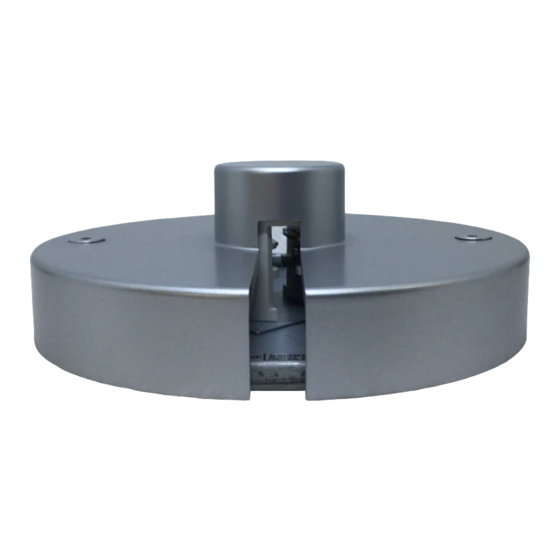

Surface Power Feed
J-Box Feed Canopy
Variable Angle Connector, Mechanical only
Variable Angle Connector, Electro/Mechanical
Mini-Coupler, Electro/Mechanical
Mini-Coupler, Mechanical Only
Grid Ceiling Mount Clips, Regressed-Edge (5pk)
Grid Ceiling mount Clips, Square- Edge (5pk)
Grid Ceiling Feed Canopy
Bending Tool
Mechanical
Track units plug together using tangent connectors and lock securely to
prevent accidental separation. Tangent
point along the track, up to 3" from end of Track.
Labels
cULus
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • D0907
Track Lighting System
™
Track Mountings
Tangent Surface Track may be ceiling,
vertical-wall or horizontal-wall mounted.
Mounting anchors or clips must be placed
no more than 3' apart for continuous
ceiling-mounted runs, and no more than
2' apart for wall-mounted runs. A mounting
anchor or clip should also be placed 6" from
each end of the track run. Surface mount
anchors and grid clips are sold separately.
™ lighting units can be attached at any
