Page 1 of 1
5-3/4"
146mm
Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately
Power Pack
302MRX (120V)
Features
1. Mounting Frame: 20ga. galvanized steel. Four slots are positioned 90º
apart to simplify alignment.
2. Mounting Bars: (4) 18 ga. galvanized steel. 13" (330mm) long bars extend
to 27" (686mm), rotatable and lockable, integral T-bar tabs. Spike detail
eliminates the need of additional nailing.
3. Mounting Bars Locking Clip: (1) locks mounting bars in place.
4. Snap-on Socket Cup: 22ga. galvanized steel. Easy snap-on to housing.
5. Socket: Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga. Teflon
250º leads to junction box.
6. Transformer: 50VA Magnetic, 120 volt primary, nominal 12 volt secondary,
class "H".
7. Thermal Protector: Meets CSA/UL requirements. Insulation, if used,
must be kept 3" (76mm) away from luminaire sides and junction box.
8. Junction Box: 4" (102mm) x 3" (76mm) x 2" (51mm) 18 ga. galvanized steel .
CSA/UL certified for maximum of 8 No. 12 ga. 90º C through branch circuit
conductors. Integral cable clamp permit attachment of non metallic Loomex
without need of additional connectors. Pry-out knock-outs accept BX cable.
Easy access from both sides with snap-on covers.
Lightolier is a Philips group brand

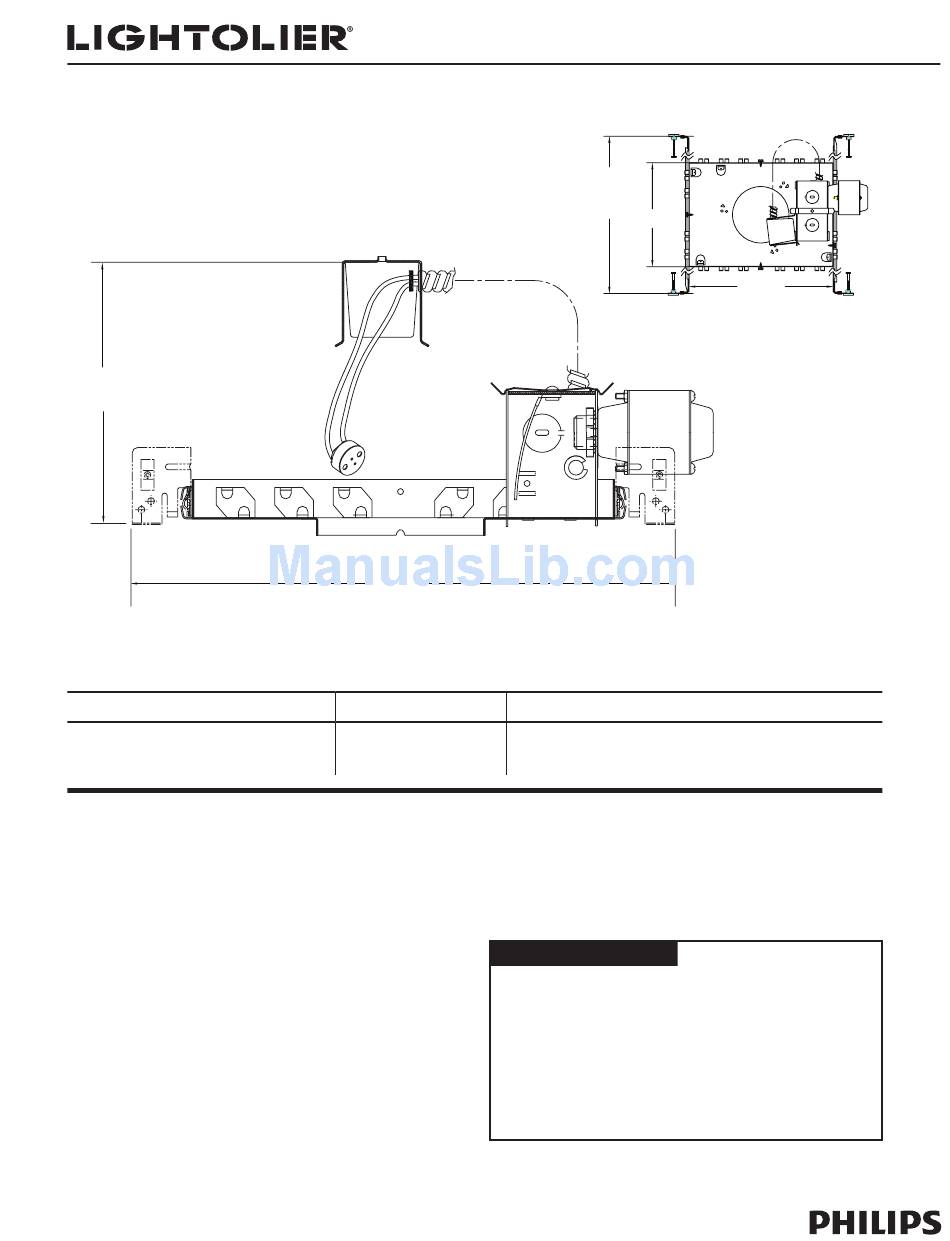

Lytecaster Recessed Downlighting
3 3/4" (95mm) Aperture Low Voltage MR16 12V Standard Frame-In-Kit (Non-IC)
12-1/4"
311mm
Cut Out
3-3/4" (95mm)
14"(356mm) MIN.
25"(635mm) MAX.
7"(175mm)
Reflector Trim
Accepts most 3-3/4" (95mm) 300 serie trims; see Reflector
Trim specification sheets.
Accessories
Mounting Bars Extenders: 1964
20" (508mm) long. Set of 2
Mounting Bar Locking Clips: 0098
To lock mounting bars in place after installation. Set of 12.
Labels
Damp or Wet location rated depending on trim used.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0608
302MRX
9-1/2"
(244mm)
Type:
