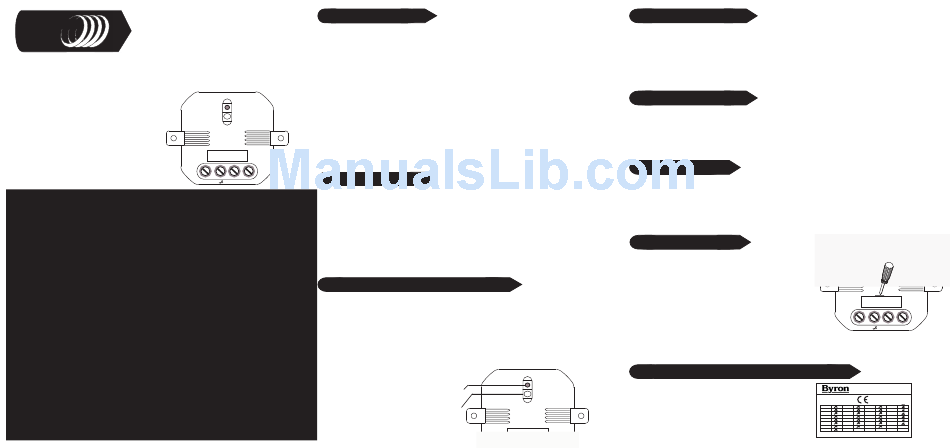

Byron Home Easy HE-204 Installation Instructions

HE-204 300W
HOME
easy
Dimmer Ceiling Module
The Byron HomeEasy range allows you to individually tailor your lighting
ambience and mood scenes in your home or business at the touch of a button.
The system operates by sending wire free
signals from the remote control to the
receiver units.
Read the instructions care fully before starting the installation process and keep
them for future reference. If you are in any doubt on the installation process,
30 Metre Range
consult a qualified electrician.
Remote On/Off setting
Max Load: 300W Incandescent
Lighting Only
INSTALLATION WARNINGS:
BEFORE COMMENCING INSTALLATION
ISOLATE YOUR MAINS ELECTRIC SUPPLY
Read the instructions care fully before starting the installation process and keep
them for future reference. If you are in any doubt on the installation process,
consult a qualified electrician.
This product should be installed in accordance with the relevant sections of
the building
regulations code, and the current edition of the IEE Wiring Regulations
(BS 7671:Requirements for electrical installations) and appropriate statutory
regulations.
Do not install ceiling receivers on lighting circuits used to supply other
products such as extractor fans and shaver socket outlets.
Do not exceed the Maximum Power Rating of 300W, Incandescent lighting
only
As of1 April 2004, new installations in the UK should be wired using the EU
harmonised colours for the supply conductors:
New colours:
BROWN = Live BLUE = Neutral Earth = Yellow/Green
Old colours:
RED = Live BLACK = Neutral
Electrical installations in bathrooms, kitchens, gardens, floor and heating systems,
swimming
pools, saunas and extra-low voltage lighting are classed as special installations and
must
V1.0
Product Compatability:
The following lighting types will NOT work with the HE-204 Ceiling Modules:
G23,
CLF,
SLE-PRO,
Single Ended High Pressure Lamps
The HE-204 Ceiling Modules are compatible with the following lighting types:
G9,
PAR36,
PAR20,
GU10,
G4,
MR11
Product Specification:
L N N
Ceiling Receiver Module:
Warning: Never Exceed the Product Specification
Pairing/Deleting the Remote Control Socket:
Up to Six remote control units can be paired with each receiver module.
To program a receiver module, press "Learn" button. The LED will start to
flash, now press the selected "ON" button on the remote control, the LED
will stop flashing.
The units are now paired together, you can test this by pressing the
selected "ON/OFF" button.
Metal Halide High Pressure sodium,
Linear/Compact Fluorescents,
PLE-C Pro,
Strip & Architectural, PAR30,
SES (Candle/Round, PAR38,
GLS BC, GLS ES,
SBC (Candle/Round), K1/9/11/12,
G6.35, MR16,
Input: 230V ~ 50Hz Fused: 1.6A
Max Load: 300W Indoor Use Only
(Incandescent Load)
Frequency: 433.92MHz
Learn LED:
Learn Button:
Deleting Remote Control:
To delete a remote control that has been paired with a HE-204 receiver
module, simply press "Learn" button. The LED will start to blink; press the "Off"
button on the remote control, the LED will blink twice to confirm that the
remote control has been removed from the receivers memory.
Ceiling Module Reset:
To delete all the remote control units from the memory of the receiver
module, hold the "Learn" button for more than 6 seconds, the LED will start to
blink continuously. Press the learn button again, the LED will blink twice to
confirm the deletion of all remote controls from the receiver memory.
Dimming Module:
To dim the ceiling module, switch the unit on by pressing the "On" button
and the press "On" again. This will start the dimming cycle to select the
required level press "On".
Changing Fuse:
The HE-204 is fuse protected, to change the fuse:
1. Isolate the mains power supply from the ceiling module
2. Using a small screw driver, remove the fuse
holder and replce the fuse with a new 1.6A fuse.
3. Replace the fuse holder and reconnect the
mains supply
HelpLine - 0845 2301231
Contact Details:
C H Byron Tel: 0845 2301231
34, Sherwood Rd Fax: 01527 557701
Aston Fields Web: www.chbyron.com
Bromsgrove E-mail:
B60 3DR support@chbyron.com
L N N
433MHz
0560
R&TTE
APPROVED
A IRL UK M
B I BG N
DK L CZ SK
FIN NL EST SLO
F P H CH
D E IS PL
GR S LV RO
LT
CH Byron Electrical United Kingdom. www.chbyron.com
