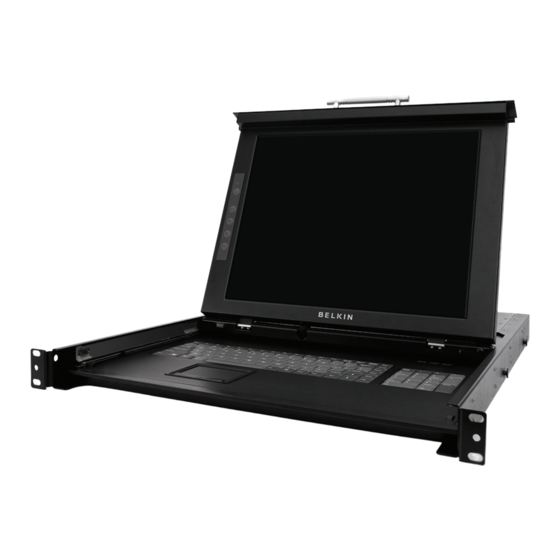

Belkin F1DC101P-DR - 17'' LCD Rack Console Specifications

Dual-Rail LCD Console
Access your servers with a compact 1U LCD Console with
Designed for easy access and server monitoring, the OmniView LCD Rack Console is the perfect solution for
saving space in the server room. The Console features Dual-Rail Technology and integrated 8- and 16-port KVM
switches*. With independently sliding rails, it allows the high-grade LCD monitor to remain displayed, even with
the laptop-style keyboard/mouse tray stored. With its slim 1U design, the OmniView LCD Rack Console fits any
standard 19-inch, 4-post rack. The LCD Rack Console offers an affordable solution with Belkin reliability, quality,
and support.
LCD monitor Stored
in use keyboard/
mouse tray
OmniView
Dual-Rail Technology
Key-locking
mechanism
Dedicated Console Ports for
daisy-chain Port server
port connection
Dual-Rail LCD Rack Console
®
Dual-Rail LCD Rack Console
features:
• Constant monitoring while saving space with dual
glide rails for independent console and keyboard-
drawer storage
• Integrated 8- and 16-port KVM switches stay con-
sistent with 1U design*
• Includes a key-locking mechanism to prevent
unauthorized access to console or servers
• Provides up to 115-degree monitor rotation for
greater viewing flexibility
• Features grade-A, 17" LCD TFT, active-matrix
Model shown is
color panel for high-quality images, especially for
F1DC116B-DR
viewing multiple applications
• Built-in adjustable brackets for broadest rack
compatibility and ease of installation
• Comes with a Belkin 2-Year Warranty
*Integrated KVM switch on models F1DC108B-DR and F1DC116B-DR
