- Page 1 AV 30 User Guide...

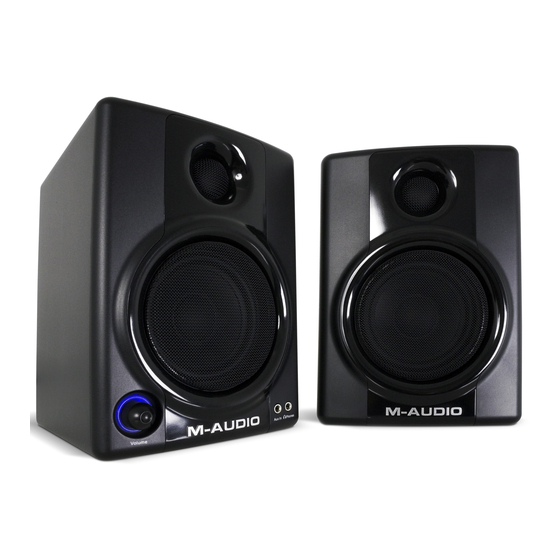

- Page 2 Thank you for choosing the AV 30 professional desktop multimedia audio monitors. Top recording engineers and producers in studios around the world use M-Audio monitors. Now, with the AV 30 monitors, you can enjoy the same professional standard of audio quality right on your desktop.
-
Page 3: Bass Reflex Port
AV 30 User Guide 3. Bass Reflex Port The hole in the rear panel is a bass reflex port. It is designed to discharge very low frequency signals and enhance the overall bass response. 4. Enclosure Along with the other components, the AV 30's enclosure plays an important role. In order to provide more stable performance, we used a special medium-density fiberboard (MDF) and unique interior reinforcement designed to absorb vibration and minimize distortion. -
Page 4: Installation
Connections: Your AV 30 monitors have a variety of inputs for use with a multitude of devices. Soundcards or other devices with RCA line outputs (e.g., M-Audio Delta Audiophile 24/96) can be connected to the RCA inputs on your left speaker’s back panel. If your soundcard or portable music player has an 1/8”... - Page 5 AV 30 User Guide Connecting to a Computer Sound Card or Other Audio Output Device Before connecting the AV 30 monitors, make sure the power from the computer or other output device has been turned off and the AV 30 system is also turned off.
-
Page 6: Appendix A - Technical Specifications
AV 30 User Guide Appendices Appendix A - Technical Specifications Type: Two-way desktop reference speaker Low-frequency driver: 3" Diameter, polypropylene-coated, magnetically shielded with high-temperature voice coil High-frequency driver: 1" Diameter, magnetically shielded silk cone tweeter Frequency response: 90 Hz – 20 kHz Crossover frequency: 3.3 kHz... -
Page 7: Appendix B - Block Diagram
AV 30 User Guide Appendix B - Block Diagram Appendix C - Frequency Response Curve... -
Page 8: Compliance Information
AV 30 User Guide Compliance Information Environmental Compliance Disposal of Waste Equipment by Users in the European Union This symbol on the product or its packaging indicates that this product must not be disposed of with other waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 9: Legal Notices
Avid Technology, Inc. Avid, M-Audio, AV 30 and Studiophile are either trademarks or registered trademarks of Avid Technology, Inc. All other trademarks contained herein are the property of their respective owners. - Page 10 Avid Technical Support (USA) Product Information Visit the Online Support For company and product 5795 Martin Road Irwindale, CA Center at information, visit us on the 91706-6211 USA www.m-audio.com/support web at www.avid.com 9320-65019-00 REV A...
