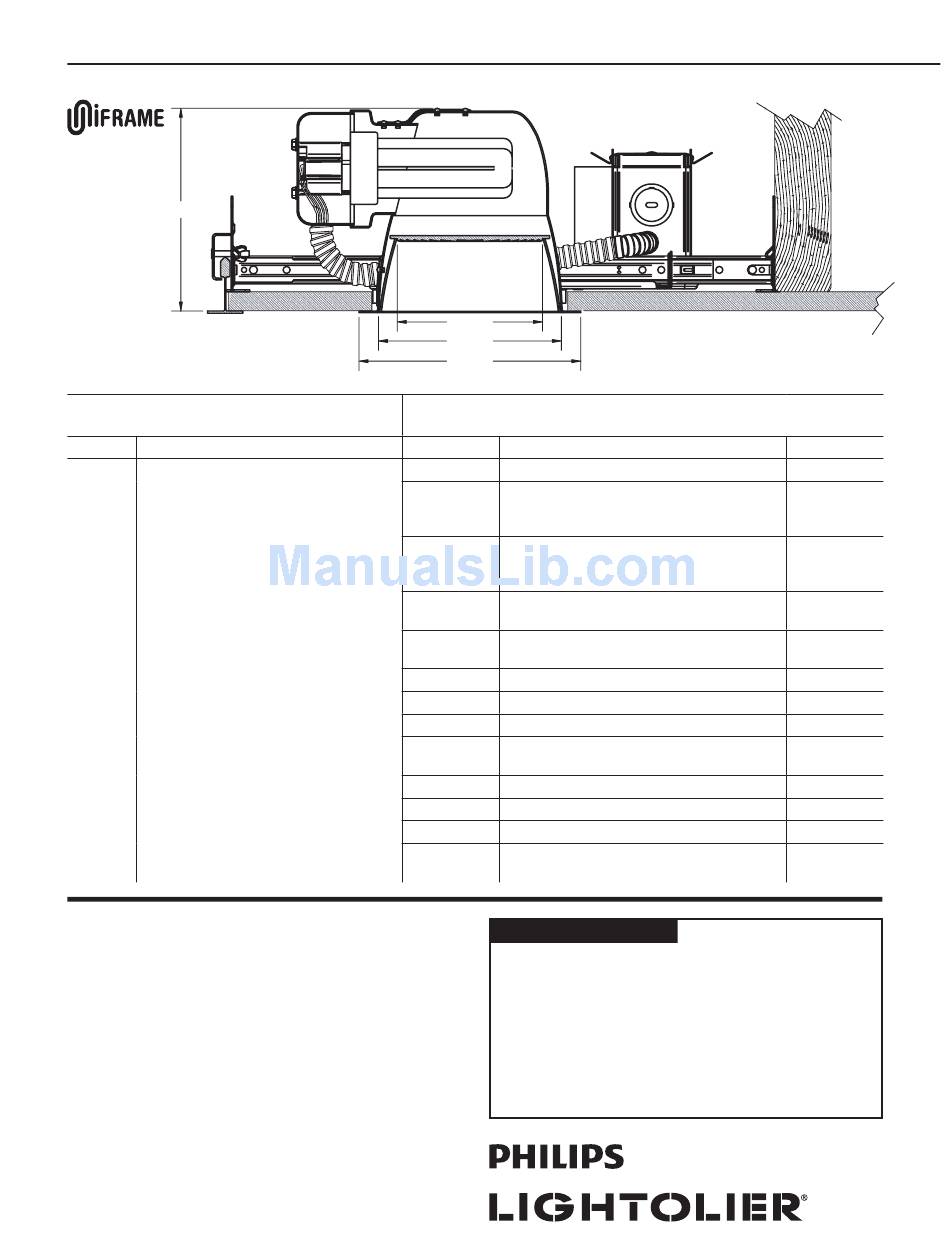

Lightolier 1001HL Specification

Page 1 of 2
5 3/8"
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe Compact Fluorescent
™
Performance Series Reflector Trims
Catalog No. Description
1001HCLF 5" Horizontal Wet Location Fresnel – Specular Clear
1001HCDF 5" Horizontal Wet Location Fresnel – Clear Diffuse
1001HWHF 5" Horizontal Wet Location Fresnel – Matte White
1001HCLC
5" Horizontal Wet Location Clear – Specular Clear
1001HCDC 5" Horizontal Wet Location Clear – Clear Diffuse
1001HWHC 5" Horizontal Wet Location Clear – Matte White
1001HCLO 5" Horizontal Wet Location Opal – Specular Clear
1001HCDO
5" Horizontal Wet Location Opal – Clear Diffuse
1001HWHO
5" Horizontal Wet Location Opal – Matte White
Features
1. Reflector: Formed aluminum. Matte White flange.
2. Finishes: CL = Specular Clear (Iridescent Free coating)
CD = Clear Diffuse
WH = Matte White Paint
3. Lenses: Clear Acrylic, Textured Acrylic Fresnel, Opal Acrylic.
4. Performance Data: 60° Cutoff angle.
See attached photometric reports for distribution and efficiency data.
Go to www.lightolier.com for .IES files.
Labels
cULus Listed. Suitable for Wet Locations. I.B.E.W.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • A0910
Performance Recessed CFL Downlighting
5" Aperture Horizontal Wet Location, CFL, Performance Series, Reflector Trim
3 7/8"
4 7/8"
5 7/8"
Compatible Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
Catalog No.
1001F13U
1001F18U
1001FR18U
1001F18UEM
1001F26U
1001FR26U
1001F26UEM
1001FD26L1
1001FD26L2
1001FD26MX1
1001FD26MX2
1001FD13M7U
1001FD18M7U
1001FD26M7U
1001FRD26MX1
1001FRD26MX2 Uniframe
1001F13ICU/N
1001F18ICU/N
1001F26ICU/N
1001FDICMX1/N
1001FDICMX2/N
Installation Type
Uniframe Non-IC 120/277v
™
Uniframe Non-IC 120/277v
™
Uniframe Non-IC Remodeler 120/277v
™
Uniframe Non-IC Emergency 120/277v
™
Uniframe Non-IC 120/277v
™
Uniframe Non-IC Remodeler 120/277v
™
Uniframe Non-IC Emergency 120/277v
™
Uniframe Non-IC Lutron Dimming 120v
™
Uniframe Non-IC Lutron Dimming 277v
™
Uniframe ™ Non-IC Advance Mark10 Dimming 120v
Uniframe Non-IC Advance Mark10 Dimming 277v
™
Uniframe Non-IC Advance Mark7 Dimming 120/277v
™
Uniframe Non-IC Advance Mark7 Dimming 120/277v
™
Uniframe Non-IC Advance Mark7 Dimming 120/277v
™
Uniframe Non-IC Advance Mark10 Dimming 120v Rem.
™
Non-IC Advance Mark10 Dimming 277v Rem.
™
Performance IC 120/277v
Performance IC 120/277v
Performance IC 120/277v
Performance IC Advance Mark10 Dimming 120v
Performance IC Advance Mark10 Dimming 277v
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
1 001HL
Lamping
13w Quad/Triple
18w Triple
26w Triple
26w Triple
26w Triple
13w Triple
18w Triple
26w Triple
26w Triple
13w Quad/Triple
18w Triple
26w Triple
26w Triple
Type:
