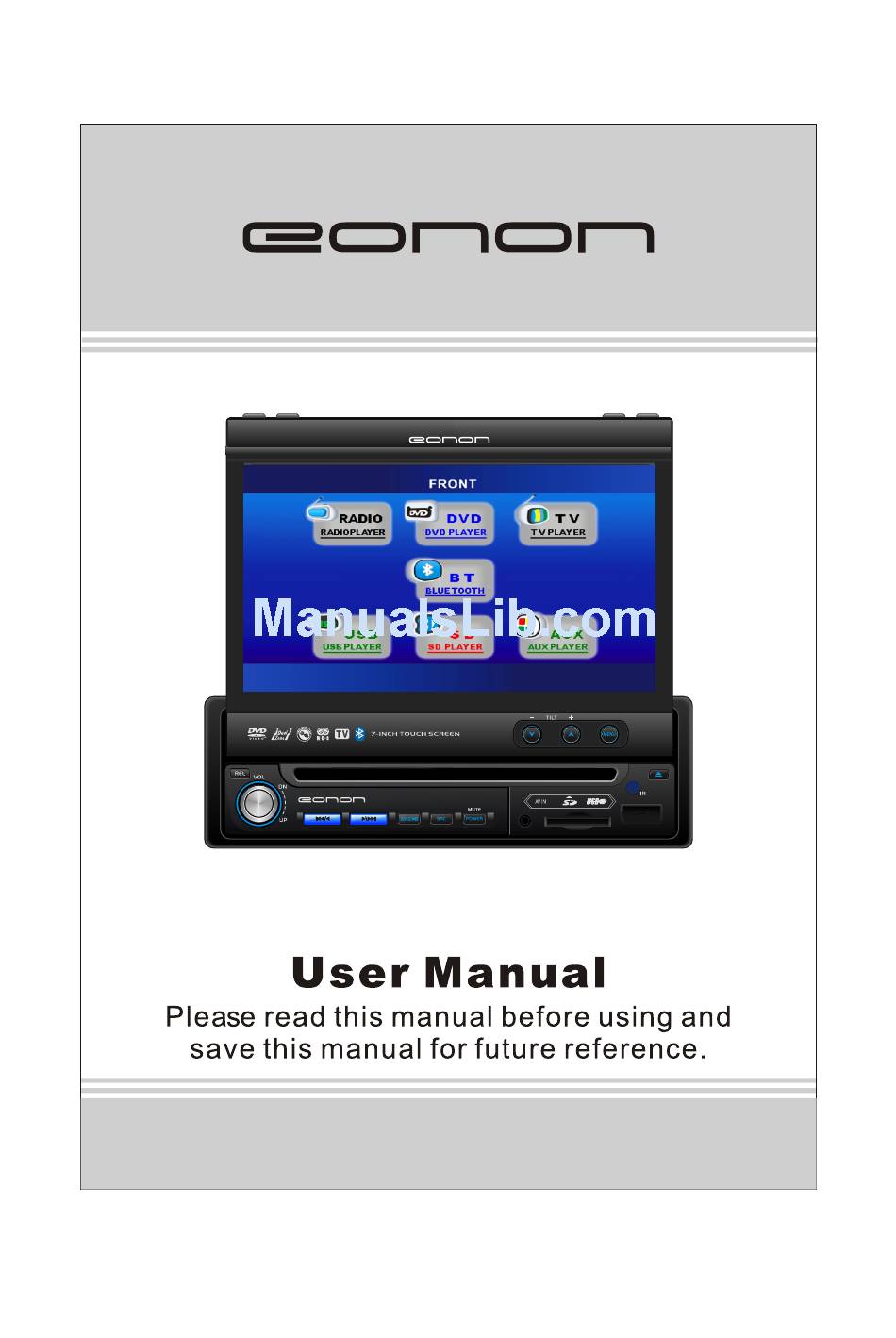

  • Page 1 D1301 Front Rear Audio Video Exit Model:D1301...

  • Page 3: Table Of Contents

    Thank you for buying this product, please read through these operating instructions, so you will know how to operate your model properly. after you have finished reading the instructions, put them away in a safe place for future reference . CONTENTS PRECAUTIONS FRONT PANEL...

  • Page 4: Precautions

    PRECAUTIONS Notes on Installation The unit is designed for 12VDC,negative ground operation system only. Before installing the unit, make sure your vehicle is connected to DC12V negative ground system. Be sure to connect the color coded leads according to the diagram.Incorrect connections may cause the unit to malfunction or damage the vehicle s electrical system.
  • Page 5 PRECAUTIONS This unit can play the following discs only: Recorded material Size of disc Type of disc Label on the disc Sound and moving 12cm pictures V I D E O Sound and moving 12cm pictures Sound only 12cm 12cm Sound only NOTE: The unit is compatible with VCD1.0/2.0/3.0 version and DVCD disc.

  • Page 6: Front Panel

    FRONT PANEL DISP OPEN MUTE A/V IN BAND/ POWER A/V IN TILT MENU...

  • Page 7: Front Panel

    FRONT PANEL 1.REL:Press to open the guardagainst theft front-panel. 2.VOL:Rotate VOL button clock wiseto increase the volume level; and rotate VOL button anticlockwise to decreasethe volume level. Press the button to select one of the audio control:L-front/R-front/L-rear/R-rear/Subwoof /Bass/Middle/Treble/TILT/Volume. Rotate the button to adjust the selecteditem / / / :In radio mode, long press switches to manual seek station .

  • Page 8: System Menu

    SYSTEM MENU The users can perform operationby touching screen directly. Radio Operation 1: 65.00M 2: 67.10M 65.00MHz 3: 70.40M 4: 72.50M 5: 74.00M 6: 65.00M Page1 1. BACKLIGHT Turn on /off the backlight. (The function can be used to change the screen brightness while travelling at night) 2.
  • Page 9 RDS Operation EON:OFF REG:OFF 65.00MHz PTY:NONE PTY: Seek- Seek+ Page2 1.TA To turn on /off TA function 2.AF To turn on /off AF function 3.PTY To switch RDS program type 4.Page2 To switch to radio operation page. 5.SEEK-/SEEK+ To seek a station automatically. To seek a station manually(long touch).

  • Page 10: Bluetooth Operation

    1.PLAY To start the playback. 2.PAUSE To pause the playback. 3.STOP To stop playing, touch twice to stop completely. 4.MENU To display the DVD SETUP screen. 5.PREV/NEXT To select previous/next chapter or tracks. NOTE:T ouching the left middle position twice to display the TITLE MENU selection screen, touching the right middle position twice to display the ROOT MENU selection screen, ouching the right top position to display the number keyboard.
  • Page 11 The phone book screen To display a telephone number list of the received calls To display a telephone number list of the dialed calls To display a telephone number list of the received but you missed To change the list page The Bluetooth Setup screen To connect the Bluetooth deviece to pair up the Bluetooth device.

  • Page 12: Tv Operation

    TV Operation PAL-I 0: 44.25 1: 55.75 Ant-1 CH:0 2: 63.75 3: 77.25 44.25Mz 5: 115.25 4: 44.25 Seek- Seek+ 1.channel preset button To display the preset channel list Touch any one of the list to watch the TV which stored on the position Touch and hold any one of the list to stored the current channel frequency on the position 2.CH-/CH+ To switch the preset channel list downward or upward.
  • Page 13 1.Front To display the source selection screen. Front Rear Audio Video Exit Touch the item to select source displayed on the unit screen. 2.Rear To select a source which display on the rear monitor Front Rear Audio Video Exit It is unavailable in AUX or TV mode. * If another monitor(rear)is connected to the unit,image/audio of the rear monitor can be changed from the unit,so you can enjoy separate image/audio in the rear seats.

  • Page 14: System Setup Operation

    4.Video Press on the VIDEO button and the screen will display as following: Bright Contrast Sharp Front Rear Audio Video Exit In this menu, there are items of Bright, Hue, Contrast, Sharp can be adjusted. Touch on the item that need adjusted then touch on the button to adjust.
  • Page 15 Subwoof freq BassQ factor MidQ factor Front Rear Audio Video Exit Touch the provided option to change the subwoof ,the bass and middle quality factor. Clock Adjust Night Lum Touch Adjust Exit Front Rear Audio Video Clock Adjust Adjust the time by touch To select item your want to set(hour minute second) To change the display number Night Lum (dimmer)--in half-night mode...
  • Page 16 REMOTE CONTROL 1.PWR/ 2. EQ/ 3. ANGLE/AMS 4. SUB-T/LOC 5. PROG/A-B 6. OSD/ 7. GOTO/ 8. MENU ][ / / / ]/ENTER 10. RPT /PTY 12. ZOOM/AF SRC/IR-SW 14. VOL-/SEL/VOL+ 16. LOUD/ 17. 0-9 Number button 18. CLEAR 20. TITLE 22.

  • Page 17: Installing The Battery

    REMOTE CONTROL Installing the battery Slide the tray out on the back of the remote control and insert the battery with the plus (+)and minus(-)poles pointing in the proper direction. Use and care of the remote control oint the remote control in the direction of the front panel to operate to use it. Notes: Using batteries improperly can cause them to explode.
  • Page 18 REMOTE CONTROL 1 POWER/ Press the button to turn on the unit;Press and hold for 1second or longer to turn off the unit. In power on,p ress to mute the device. Press it again to resume previous sound level. 2 EQ/ Press to select the corresponding preset modes to adjust the sound quality.
  • Page 19 /PTY In radio mode, press this button to switch to RDS program type. In DVD/VCD mode, press to play slowly 12 ZOOM/AF In radio mode, press this button to function AF on/off. In DVD/VCD mode, press to increase or decrease the picture in size. 13 SRC/IR-SW ress the button repeatedly to switch sources.
  • Page 20 BASIC OPERATION ¼ ò µ ¥ ¹ Ê Õ Ï Å Å ³ ý Ö ¸ Ä Ï 1.Reset the Unit Operating the unit for the first time or after replacing the car battery, you must reset the u nit. Press RESET button on the head unit with a pointed object, (such as a ballpoint pen) to set the unit to initial status.
  • Page 21 RADIO OPERATION Selecting the radio mode,the TFT display as the follow: 1: 65.00M 2: 67.10M 65.00MHz 3: 70.40M 4: 72.50M 5: 74.00M 6: 65.00M Page1 1.Band Selector In radio mode, repeatedly press BAND button on the remote control to select a band in the following order: *Pressing BAND on the touchable screen or on the panel also performs the same operation.
  • Page 22 (2).It is switched to DX mode when Loc: OFF is pressed again. Both strong and weak stations can be received. Note: The initial mode is DX mode. .MO/ST Selector In FM of radio mode, you can press ST button on the remote control to select Mono mode or Stereo mode.
  • Page 23 PTY(Programme Type)Tuning The PTY function allows you to search for stations with a particular Program Type. Touching Page1 button on the radio display screen to switch to the RDS screen EON:OFF REG:OFF 65.00MHz PTY:NONE PTY: Seek- Seek+ Page2 1.Press PTY button on touchable screen or on the remote control to select a programme type.
  • Page 24 *Due to some special mobile phone,you may not be able to use a hands-free phone. CONNECTING selecting B Tmode Press PAIR button on touchable screen to turn on the par function Searching for device(EONON) by using mobile phone Selectting bluetooth device (EONON) by using mobile phone Input a pass code:1234...
  • Page 25 Dialling a call Input the number required by pressing number button on the remote control or on the screen then press button on the screen to dial up. The telephone number you dialed is appeared on the screen 2.Placing a call by history: Press button to switch to PHONE BOOK screen.
  • Page 26 BLUETOOTH AUDIO FUNCTION Audio information of a bluetooth compatible mobile phone,portable player,etc., Is by wireless controllable/playable from the unit. Refer to CONNECT to connect bluetooth audio devices. Refer to bluetooth setup(PAGE6) for operation *video playback is not supported. *using remote control also perform same operation The key of the remote control assigned in Bluetooth audio function Play/pause Previous/next track...
  • Page 27 TV OPERATIONS Selecting mode Press SRC button on the remote control, on the panel or source selection touch- able screen to select TV mode. 5: 115.25 4: 44.25 PAL-I 0: 44.25 1: 55.75 Ant-1 CH:0 2: 63.75 3: 77.25 44.25Mz 5: 115.25 4: 44.25 Seek-...

  • Page 28: Dvd/Vcd/Cd Operation

    /VCD/CD OPERATIONS Loading a disc 1.Press button to open the front panel 2. Insert a disc into the Disc slot the unit switch to the DVD mode automatically * You can eject a disc by pressing button on the unit Quick track selection fast forward/fast reward playback During playback mode, press button to select next/previous chapter or track.
  • Page 29 Normal Play 1 16 This function is operated by using the remote control. Increase or decrease the size of the picture During DVD/VCD playback, press ZOOM button to increase or decrease the picture size. There are 6 sizes, and press the button repeatedly to change the size in following order *This function is operated by using the remote control.
  • Page 30 Selecting different title (DVD mode) For DVD disc, you can press TITLE on the remote control to return the top menu of the disc, and you can select different chapter or title upward or downward by using *Touching the screen also perform the same function(refer to page 7 Multi-player operation for detail).

  • Page 31: System Setup

    SYSTEM SETUP When you press SETUP button on the remote control,or press SETUP button on the screen, the setup menu will be displayed. It include General Setting,Audio Setup,Preference ,Password Setup and Exit Setup menu. 1.Within the setup menu, you can use buttons on the remote control to move the cursor, and then press the ENTER button to make your selection.Press can return to the previous menu.
  • Page 32 2. AUDIO SETUP PAGE User can select digital audio setup or dolby digital setup. AUDIO SETUP PAGE DIGITAL AUDIO DOLBY DIGITAL SETUP GO TO AUDIO SETUP PAGE 2.1 DIGITAL OUTPUT SETUP DIGITAL AUDIO PAGE SPDIF OFF DIGITAL OUTPUT 48KHz SPDIF RAW LPCM OUTPUT SPDIF PCM SETUP SPDIF...
  • Page 33 PREFERENCE PAGE AUDIO ENGLISH FRENCH SUBTITLE SPANISH DISC MENU PORTUGUES PARENTAL JAPANESE DEFAULT KOREAN RUSSIAN THAI PREFERRED AUDIO LANGUAGE 3.2 SUBTITLE SUBTITLE: Sets the preferred subtitle language as the default when playing DVD.(if DVD support these languages) PREFERENCE PAGE AUDIO ENGLISH FRENCH SUBTITLE...
  • Page 34 PREFERENCE PAGE AUDIO SUBTITLE DISC MENU PARENTAL DEFAULT RESET LOAD FACTORY SETTING 4. PASSWORD SETUP PAGE 4.1 PASSWORD MODE PASSWORD MODE: Sets the function operation to locking the parental function ON:Using the parental control must input the password OFF:You can not input the password to change the parental control. * The initial password is 136900 PASSWORD SETUP PAGE PASSWORD MODE...
  • Page 35 SETTING THE TV SCREEN SIZE Multi-aspect ratio suit to different TV screen size. TV Screen Size Picture format 16:9 on Disc Pan Scan Letter-box Wide Screen 16:9 Function supported by DVD discs There are many functions available on DVD discs and the functions vary per player and per manufacturer.

  • Page 36: Mp3 Operation

    MP3 OPERATION Playing a disc, an SD/MMC card or a USB device containing files Connect a USB device or insert a disc into the disc slot or SD/MMC card into the card slot. The unit will automatically switch on when a disc, card or USB device is inserted. The screen will display as follow: Touch this area to display numeric keypad.
  • Page 37 Stop playing When playing MP3 files, press button on the remote control to stop playback. Pause playback Press the button on the remote control or press PAUSE button on the touchable screen while playing,press it again or press PLAY button on the touchable screen to return to normal playback.

  • Page 38: Ipod Operation

    IPOD OPERATION 1.Playing an IPOD device containing audio and vedio files Connect an IPOD device to the USB slot and t he unit will automatically switch on to the USB interface. The screen will display as follow: Touch this area to display numeric keypad. 02:47 03:40 001/099 01 LA LUNE...

  • Page 39: Installation

    INSTALLATION Notes Before finally installing the unit, connect the wiring temporarily, making sure it is all connected up properly, and the unit and the system work properly. Use only the parts included with unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 40: Detach The Unit

    INSTALLATION Installation Method: DIN Front-Mount Bend these claws outward for a tight fit, if necessary. Front Wall of the Cab To support the unit Detach the Unit 2. Insert the keys supplied to the unit at both sides of the unit (shown as 1.

  • Page 41: Trouble Shooting

    TROUBLE SHOOTING Common problems Symptom Remedy Cause Power doesn't switch ON . Leads and connectors are Confirm once more that all connections The unit doesn't operate. incorrectly connected are correct A fuse has blown Fix the problem causing the blown fuse and replace the old fuse with a new one of the same capacity Noise and other factors are...
  • Page 42 Problem during DVD playback Symptom Remedy Cause Playback is not possible The loaded disc has a different Replace the disc with one featuring the region number from this unit same region number as this unit Dialog language (and The DVD playing does not You cannot switch among multiple subtitle language) can not feature multiple language...

  • Page 43: Cable Connection

    CABLE CONNECTION Black/black Plug Deep gray/red Plug RADIO SIGNAL INPUT AUDIO OUT F.R Brown/yellow Plug REVERSE VIDEO IN Deep gray/white Plug AUDIO OUT F.L Black/yellow Plug EXOTERIC VIDEO INPUT Black/red Plug AUX IN-R Gray/yellow Plug Black/white Plug REAR VIDEO OUT AUX IN-L Gray/yellow Plug REAR VIDEO OUT...

  • Page 44: Specification

    SPECIFICATION GENERAL power requirement ---------------------------------------------- 12VDC(10.8~16V) grounding system ------------ -------------------------------- ----------- negative type max: current consumption ------- -------------------------------------------- ---- 15 A max: power output -------- ----------------------------------------------- ------- 65Wx4 load impedance --------------- ------------------------------------ ------- dimensions-------------------------------------------- 180(L) 160(W) 100(H) weight--------------------------------------------------------------------------------3.3KG DVD PLAYER S/N ratio ------ -------------------------------------------------- more than 62dB(1kHz)
