Fusion POWERPLANT PP-SW120 Instruction Manual

Installation Warning
1. Ensure the vehicle 12 volt lead is removed before any equipment is connected.
2. Investigate the vehicle's gas tanks, brake lines and electrical wiring locations before you begin installation.
3. Attach the product securely to the vehicle to prevent damage in the event of an accident.
4. Ensure all wiring is protected to avoid damage or pinching of the cables.
RECORD YOUR PURCHASE DETAILS HERE:
MODEL NUMBER __________________________ DATE OF PURCHASE__________________________
AFFIX RECEIPT HERE
WARNING! Audio Systems can produce sound levels over 135dB. Continuous exposure to sound pressure levels over 100dB may
cause permanent hearing loss! Please watch for emergency vehicles as warning signals may not be heard. USE COMMON SENSE!
YOU CAN HELP PROTECT THE ENVIRONMENT!
Please remember to respect the local regulations:
Hand in the non-working electrical equipment
to an appropriate waste disposal center.
V 1.0
PUBLISHED BY FUSION ELECTRONICS LIMITED:
© Copyright 2006 by FUSION Electronics Limited.
All rights reserved. Specifications and design are
subject to change without notice.

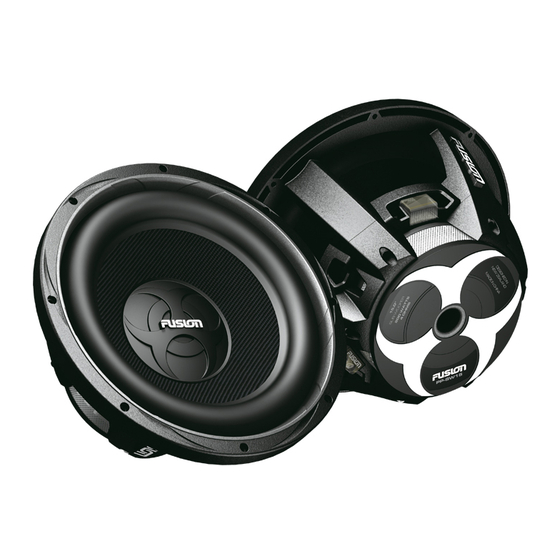

POWERPLANT
SUBWOOFERS
PP-SW120, PP-SW150
Subwoofer Parameters
PP-SW120
Max Power Rating 1200 Watts
RMS Power Rating 500 Watts
Frequency Response 25Hz - 2.5kHz
Impedance 2 x 2 Ohms
Sensitivity 90 dB
Compliance (Cms) 207.925
Cone Area (Sd) 490.87
D.C. Coil Resistance (Re) 3.6 (1.8 x 2)
Electrical Q (Qes) 0.475
Force Factor (Bl) 12.471
Free Air Resonance (Fs) 37
Linear Excurson (Xmax) 30
Mechanical Excursion (mm) 9
Mechanical Q (Qms) 3.345
Total Loudspeaker Q (Qts) 0.416
VAS (L) 71.142
VAS (CuFt) 2.5
Optimum Enclosures
Ported PP-SW120
Volume (litres) 41
Volume (cu.ft.) 1.48
Port diameter 101mm/4"
Port length 348mm / 13.73"
Tuned frequency (Hz) 40
Sealed
Volume (litres) 27
Volume (cu.ft.) 1.0
Tuned frequency (Hz) 75
PP-SW150
1500 Watts
625 Watts
20Hz - 1.5kHz
2 x 2 Ohms
91 dB
91.005
754.77
3.6 (1.8 x 2)
0.397
21.715
33.620
30
9
2.643
0.345
73.618
2.6
PP-SW150
60
2.2
101mm/4"
350mm / 13.75"
38.5
45.5
1.6
80
