Chapter
11

Data Communication

Data communications capabilities let you transfer data between two CASIO PV
Units, between a PV Unit and a BN-10/BN-20 Unit, or between a PV Unit and a
BN-10A/BN-20A/BN-40A Unit. You can also receive data from a CASIO SF,
CSF, or NX Series Unit, and communicate with a personal computer using PC
sync for Windows.
•
See the manual that comes with PC sync for Windows for details on connecting
to a computer and setting up for communication.

Using the Cradle

The PV Unit comes with a cradle that helps to make data communications quicker
and easier. The following procedures describe how to attach the PV Unit to and
detach it from the cradle.

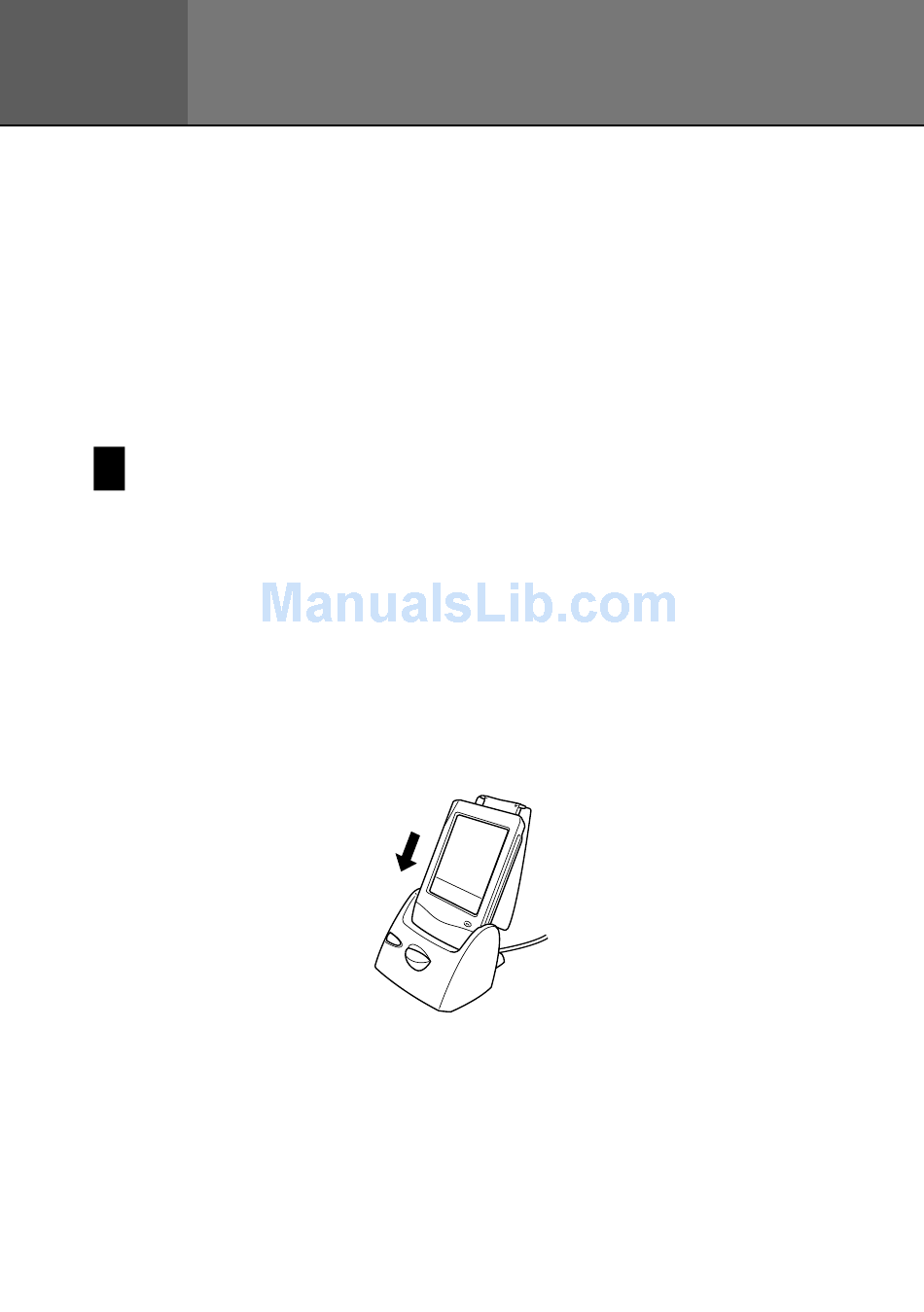

To connect the PV Unit to the cradle
1. Turn off PV Unit power.
2. Place the PV Unit onto the cradle.
•
Gently but firmly press down on the PV Unit to ensure that it is inserted
into the cradle as far as it will go.
134

Advertisement

Table of Contents
loading

Related Manuals for Casio PV-750 Plus

Summary of Contents for Casio PV-750 Plus

  • Page 1: Data Communication

    Chapter Data Communication Data communications capabilities let you transfer data between two CASIO PV Units, between a PV Unit and a BN-10/BN-20 Unit, or between a PV Unit and a BN-10A/BN-20A/BN-40A Unit. You can also receive data from a CASIO SF, CSF, or NX Series Unit, and communicate with a personal computer using PC sync for Windows.

  • Page 2: Data Communications Between Two Pv Units

    Chapter 11 Data Communication To detach the PV Unit from the cradle 1. Turn off PV Unit power. 2. Lift up on the PV Unit while holding down the cradle’s Release button. Release button Data Communications Between Two PV Units This section describes how to set up and communicate between two PV Units.
  • Page 3 3. Use an optional SB-90 9-9 pin connector to connect the two cradles to each other. Host unit Terminal unit Start button Cradles SB-90 9-9 pin connector • All data communication settings must be made on only one of the PV Units only.
  • Page 4 Chapter 11 Data Communication 3. Tap the Menu Bar icon to display the menu bar, and then tap System – Data communication. 4. Tap the button next to Pocket Viewer to specify the data communication configuration. 5. Tap the button next to Send. 6.

  • Page 5: To Receive Data From The Terminal Unit On The Host Unit

    To receive data from the terminal unit on the host unit 1. Perform steps 1 through 4 under “To send data from the host unit to the terminal unit”. 2. Tap the button next to Receive. 3. Tap Set. 4. Tap the check boxes to specify the data you want to receive (checked) and the data you do not want to receive (unchecked).
  • Page 6 Chapter 11 Data Communication Notes • The above procedures can be used to send or receive all data in specific modes only. You cannot send or receive individual data items. • Data communication can be interrupted at any time by pressing Esc. This causes the message Stopped! to appear on the displays of both units.

  • Page 7: Data Communications Between A Pv Unit And A Bn Unit

    Data Communications Between a PV Unit and a BN Unit This section describes how to set up and communicate between a PV Unit and a BN Unit (BN-10/BN-20 or BN-10A/BN-20A/BN-40A). To connect a PV Unit to a BN Unit 1. Make sure that the power of both units is turned off. 2.
  • Page 8 Chapter 11 Data Communication To send data from the PV Unit to the BN Unit 1. After connecting the two units, turn on the PV Unit. • BN Unit power should still be off at this time. 2. Display the list view in a mode whose data can be sent with this setup. •...
  • Page 9 9. Turn on the power of the BN Unit and then press the START button on its cradle to start the data transfer operation. • The following shows the relationship between data when sent from the PV Unit to a BN Unit. Mode PV Unit BN Unit...
  • Page 10 Chapter 11 Data Communication To receive data from the BN Unit on the PV Unit 1. Perform steps 1 through 4 under “To send data from the PV Unit to the BN Unit”. 2. Tap the button next to Receive. 3.

  • Page 11: Receiving Data From An Sf/Csf/Nx Series Unit

    • Transferring data from the PV-750Plus to the BN Unit causes all euro symbols to be replaced by spaces. • The following shows the relationship between data when received by the PV Unit from a BN Unit. BN Unit PV Unit Mode PERSONAL Personal...
  • Page 12 Chapter 11 Data Communication 4. Use an optional SB-90 9-9 pin connector to connect the PV Unit cradle to the other unit’s cable. PV Unit SF/CSF/NX Series Unit Cradle SB-90 3-9 pin cable SB-90 9-9 pin connector To make communication parameter settings 1.

  • Page 13: To Receive Data From An Sf/Csf/Nx Series Unit

    6. Tap the buttons under Parity, Bit length, and BPS to make the settings you want. • Note that the settings you make here must match those of the connected SF/CSF/NX Series Unit. Otherwise, proper data communication will be impossible. 7.
  • Page 14 • Data cannot be received from the following CASIO units: SF-A Series, SF-5580, 5780, 5980, 5580E, 5780E, 5980E, 5590SY, 5790SY, 5990SY, 5590SYE, 5790SYE, 5990SYE, 6500SY, 6700SY, 6900SY, 7100SY, 7200SY.
