Frigidaire FRS26ZTH Factory Parts Catalog

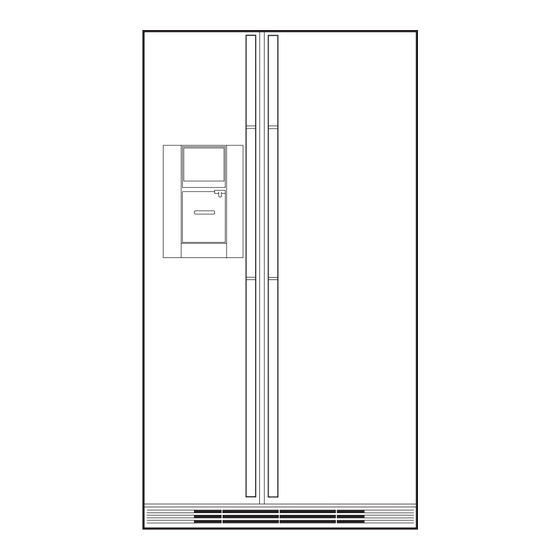

Side by side refrigerator
Hide thumbs Also See for FRS26ZTH:
Table of Contents

Advertisement

Quick Links

See also: Factory Parts Catalog
PRODUCT NO.
BASE MODEL NO.
FRS26ZTHB0
FRS26ZTH
FRS26ZTHD0
FRS26ZTH
FRS26ZTHW0
FRS26ZTH
MARKET
North America
WIRING DIAGRAM - # 218875901
OWNER'S GUIDE - # 218908400
SERVICE DATA SHEET - # 218909400
101 Masters Blvd.
Anderson, SC 29624
FACTORY PARTS CATALOG
SERIES
COLOR
R134a Gallery
black
R134a Gallery
almond
R134a Gallery
white
Publication No.
5995324604
990609
-EN/SERVICE/KB
357

SIDE BY SIDE

REFRIGERATOR
VOLTS
115
115
115
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26ZTH
©1999 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading

Related Manuals for Frigidaire FRS26ZTH

Summary of Contents for Frigidaire FRS26ZTH

  • Page 1: Side By Side

    FACTORY PARTS CATALOG SIDE BY SIDE REFRIGERATOR PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRS26ZTHB0 FRS26ZTH R134a Gallery black FRS26ZTHD0 FRS26ZTH R134a Gallery almond FRS26ZTHW0 FRS26ZTH R134a Gallery white MARKET North America WIRING DIAGRAM - # 218875901 OWNER’S GUIDE - # 218908400 SERVICE DATA SHEET - # 218909400 SIDE BY SIDE REFRIGERATOR...

  • Page 2: Freezer Door

    Publication No. FRS26ZTH 5995324604 FREEZER DOOR 06/99...
  • Page 3 FRS26ZTH Publication No. 5995324604 FREEZER DOOR A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 215734323 A - - Gasket-frzr door,black ,magnetic 215734303 - B - Gasket-frzr door,almond ,magnetic 215734313 - - C Gasket-frzr door,white ,magnetic 5303288950 A B C...

  • Page 4: Refrigerator Door

    Publication No. FRS26ZTH 5995324604 REFRIGERATOR DOOR 06/99...
  • Page 5 FRS26ZTH Publication No. 5995324604 REFRIGERATOR DOOR A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 215734324 A - - Gasket-refr door,black ,magnetic 215734304 - B - Gasket-refr door,almond ,magnetic 215734314 - - C Gasket-refr door,white ,magnetic 215403201 A B C...
  • Page 6 Publication No. FRS26ZTH 5995324604 CABINET 06/99...
  • Page 7 FRS26ZTH Publication No. 5995324604 CABINET A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 215637602 A B C Cover-air duct 215637401 A B C Cover-evap coil,lower 10A* 5308009617 A B C Washer,ext tooth lock ,#10 ,grounding 5303208309 A B C Plug-hole,factory test...
  • Page 8 Publication No. FRS26ZTH 5995324604 SHELVES 06/99...
  • Page 9 FRS26ZTH Publication No. 5995324604 SHELVES A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 5303298147 A B C Trim-basket 218298003 A B C Shelf-freezer,sliding ,wire 5304405879 A B C Shelf-freezer,fixed wire 218815501 A B C Shelf-pizza,24B 215029009...
  • Page 10 Publication No. FRS26ZTH 5995324604 CONTROLS 06/99...
  • Page 11 FRS26ZTH Publication No. 5995324604 CONTROLS A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 5303307883 A B C Knob-damper control,white/teal line 5308000010 A B C Fan Blade,red 5308000124 A B C Ring-fan orifice 5300157666 A B C Bushing-motor mtg,(2)
  • Page 12 Publication No. FRS26ZTH 5995324604 SYSTEM 06/99...
  • Page 13 FRS26ZTH Publication No. 5995324604 SYSTEM A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 218787900 A B C Condenser 5303208866 A B C Spacer-cond tube,black 5303289026 A B C Spacer-tube 5303289029 A B C Clip-cond mtg,(4) 218679603 A B C...
  • Page 14 Publication No. FRS26ZTH 5995324604 DISPENSER 06/99...
  • Page 15 FRS26ZTH Publication No. 5995324604 DISPENSER A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 5318582501 A B C Tube-water inlet,93" ,plastic, cut-to-size 215294101 A B C Tube-water inlet, formed, plastic, dispenser 218832301 A B C Tube-water inlet,inlet valve ,to filter 218859901...

  • Page 16: Ice Container

    Publication No. FRS26ZTH 5995324604 ICE CONTAINER 06/99...
  • Page 17 FRS26ZTH Publication No. 5995324604 ICE CONTAINER A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 5304404344 A B C Auger-ice 5304404343 A B C Cam-drive 218815300 A B C Container-ice 5304404346 A B C Drum-ice disp 218815400 A B C...

  • Page 18: Ice Maker

    Publication No. FRS26ZTH 5995324604 ICE MAKER 06/99...
  • Page 19 FRS26ZTH Publication No. 5995324604 ICE MAKER A = FRS26ZTH (FRS26ZTHB0) B = FRS26ZTH (FRS26ZTHD0) C = FRS26ZTH (FRS26ZTHW0) POS. NO PART NO DESCRIPTION 5318582501 A B C Tube-water inlet,93" ,plastic, cut-to-size 215294101 A B C Tube-water inlet,formed ,plastic, dispenser 218832301 A B C Tube-water inlet,inlet valve ,to filter 218859901...

  • Page 20: Wiring Schematic

    Publication No. FRS26ZTH 5995324604 WIRING SCHEMATIC 06/99...

  • Page 21: Wiring Diagram

    FRS26ZTH Publication No. 5995324604 WIRING DIAGRAM # = Fast-moving Parts 06/99 * = Non-Illustrated Parts...
