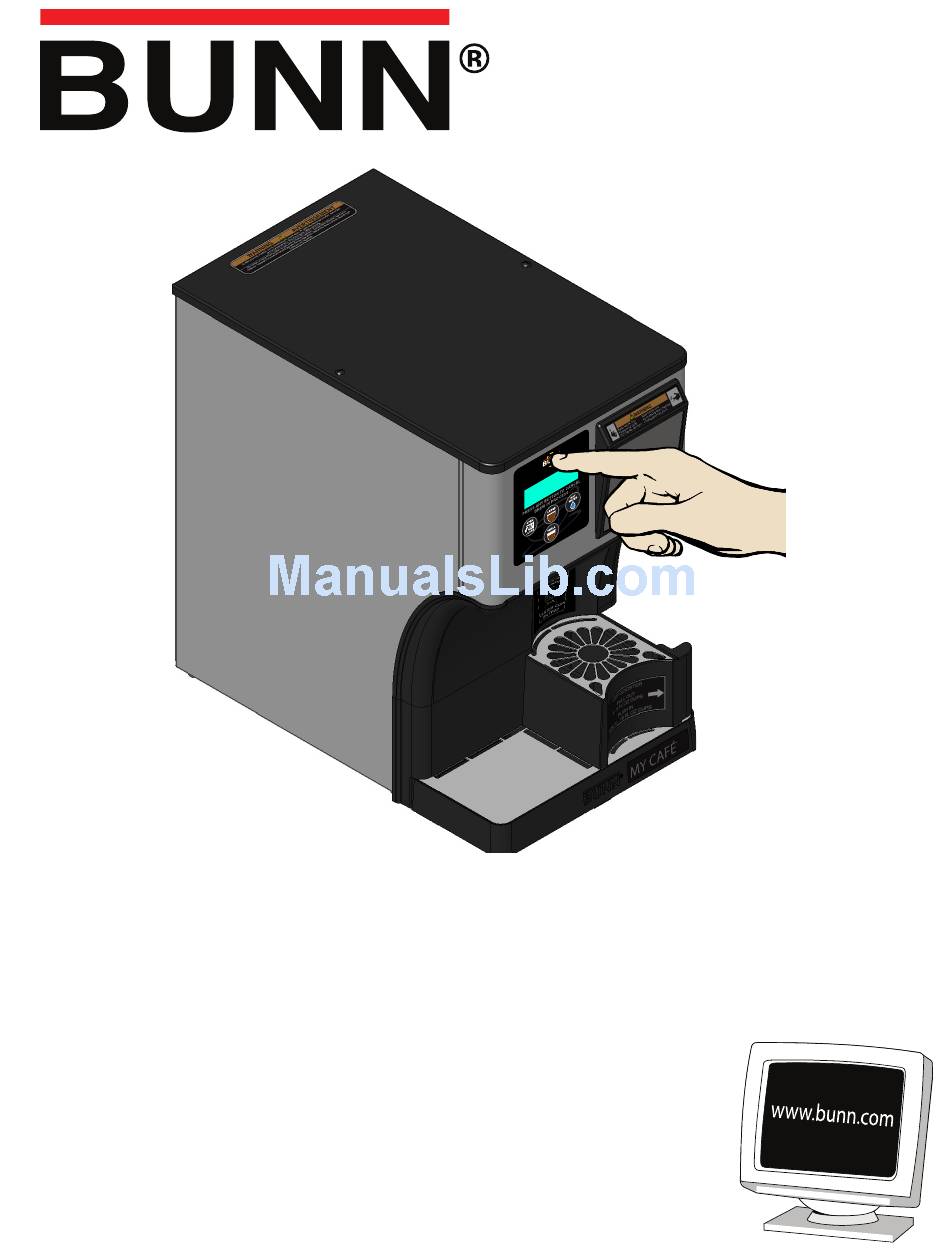

My Café
AP
®
PROGRAMMING MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
41170.0001A 05/12 ©2010 Bunn-O-Matic Corporation

Advertisement

loading

Related Manuals for Bunn My Café AP

Summary of Contents for Bunn My Café AP

  • Page 1 My Café ® PROGRAMMING MANUAL BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 41170.0001A 05/12 ©2010 Bunn-O-Matic Corporation...
  • Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
  • Page 3 CONTENTS LOCKOUT SWITCH .....................4 PROGRAMMING SWITCHES................5 PROGRAMMING ....................6 Page 3 41170.1 050312...

  • Page 4: Programming The Brewer

    ADJUSTMENTS & PROGRAMMING PROGRAMMING THE BREWER The programming of the brewer is divided into two levels. Brewing adjustments are in Level 1. Service func- tions are accessed in Level 2. The following function screens are in order of appearance. Each screen will have instructions on how to access, and the procedures to program the various functions of the brewer.

  • Page 5: Program Functions

    PROGRAM FUNCTIONS MAIN SCREEN t o P HIDDEN SWITCH Press until display reads "BREW LOCKOUT" Press/hold to exit program SMALL BREW Step backwards through screens BREW LOCKOUT: NEXT BREW LOCKOUT ? Prevents brewing if the water temperature is less than DONE the "SET READY"...
  • Page 6 PROGRAM FUNCTIONS BREW LOCKOUT (YES/NO) BREW LOCKOUT ? Setting to "YES" only allows brewing at or above the "SET READY" temp screen. DONE BREW OZ. (LARGE) (1-16) BREW OZ A: 8.0 Adjust brew volume for "LARGE" button. DONE BREW METER (LARGE) (1-5) BREW METER A: 2 Simplified pulse brew adjustment.
  • Page 7 PROGRAM FUNCTIONS HOT H2o READY H2O READY: 190° Sets the minimum temperature allowable to start dispensing hot water. DONE ENTER ASSET # ENTER ASSET # ? This function allows the you to enter in an optional asset number. This can be useful for tracking the usage or service of an individual machine within a group.
  • Page 8 PROGRAM FUNCTIONS SERVICE TOOLS allows testing of load components and switches. SERVICE TOOLS ? It should only be used by trained technicians. TEST OUTPUTS allows testing of load components by manually turning them TEST OUTPUTS ? ON/OFF. ---PLACE A 10 OUNCE CUP UNDER DISPENSE AREA--- WARNING: HOT WATER WILL DISPENSE DURING SOME TEST MODES! INDEX MOTOR DUMP runs the pod holder back to the pod ejection position.
  • Page 9 PROGRAM FUNCTIONS SET REFILL SET REFILL Press "YES" to access the refill screen. FOR TRAINED TECHNICIANS ONLY. THRESHLD YES IMPROPER SETTINGS CAN RESULT IN OVER FLOW! REFILL Adjust sensitivity of refill probe according to water quality. Always REFILL make sure that the # on the right is larger than the # on the left when DONE water is contacting the tank refill probe.
