Operating Instructions
1.5 GPR &
1.5 GPR-FF
S A
S H
F E
R E
T Y
- - F
- - F
T Y
R E
F E
S H
S A

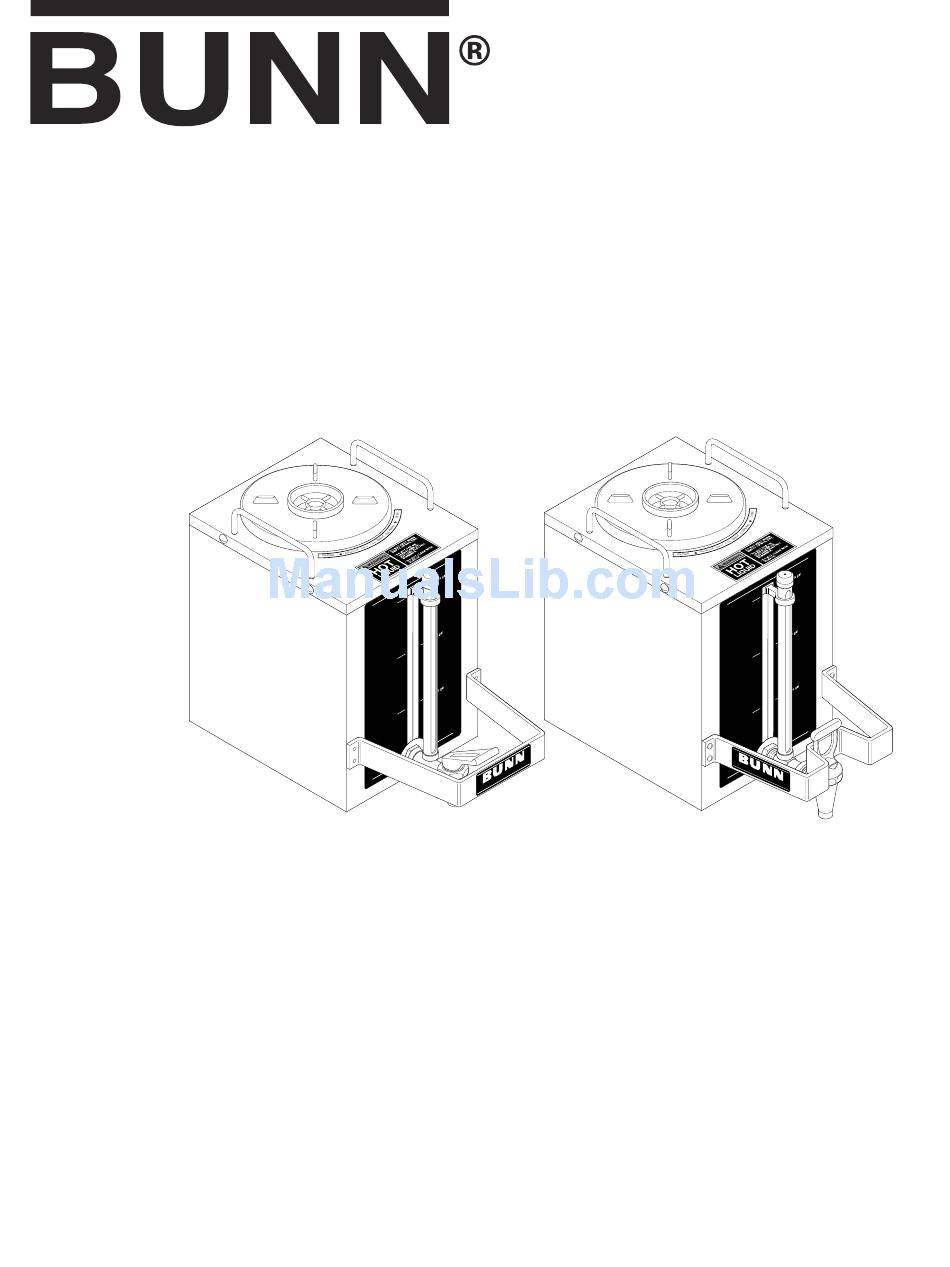

ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
www.bunnomatic.com
10783.0000H 10/03 ©1994 Bunn-O-Matic Corporation
Advertisement
Related Manuals for Bunn 1.5 GPR
Summary of Contents for Bunn 1.5 GPR
- Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunnomatic.com 10783.0000H 10/03 ©1994 Bunn-O-Matic Corporation...
- Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
- Page 3 TABLE OF CONTENTS Faucets, Sight Gage & Decals ................................ 8,10 Housings, Handles, Guards & Decals ..............................4 Reservoir & Lid Assembly .................................. 6 Numerical Index ....................................12 10783 041200...
-
Page 4: Housings, Handles, Guards & Decals
1.5 GPR ® BUNN HOUSINGS, HANDLES, GUARDS & DECALS 1.5 GPR-FF BAIL HANDLE - - F FAST FLOW FAUCET GUARD - - F P-338 10783 041200... - Page 5 HOUSINGS, HANDLES, GUARDS & DECALS ITEM PART NO. QTY. DESCRIPTION 22206.0000 Guard W/Decal, Faucet (Self Serve Faucet) (Includes 1 of item 2) - - - - - - - - Guard W/Decals, Faucet (SST-Fast Flow Faucet) (Not available. Order black Guard) - - - - - - - - Guard W/Decals, Faucet (Brass-Fast Flow Faucet) (Not available.
-
Page 6: Reservoir & Lid Assembly
1.5 GPR ® BUNN RESERVOIR & LID ASSEMBLY 1.5 GPR-FF Early Models P-339 10783 072301... - Page 7 RESERVOIR & LID ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 12346.0005 Reservoir/Collar Assy (Self Serve Faucet) Includes items 2, 3 & 4 12346.0006 Reservoir/Collar Assy (Fast Flow Faucet) 12385.0002 Reservoir (Self Serve Faucet) 12385.0003 Reservoir (Fast Flow Faucet) 12330.0000 Gasket, Reservoir Collar 12329.0000 Collar, Reservoir 01380.0000...
-
Page 8: Faucets, Sight Gage & Decals
1.5 GPR ® BUNN FAUCETS, SIGHT GAGE & DECALS 1.5 GPR-FF EARLY MODELS LATE MODELS FAST FLOW FAUCET P-340 10783 041200... - Page 9 FAUCETS, SIGHT GAGE & DECALS ITEM PART NO. QTY. DESCRIPTION 01293.0000 Sight Gage Cap (Chrome) 01293.0001 Sight Gage Cap (Brass) 01291.0000 Sight Gage Washer, Cap (Also see item 34) 01286.0000 Sight Gage Shield, 8.0" (Chrome) 01286.0001 Sight Gage Shield, 8.0" (Brass) 01283.1000 Sight Gage Glass, 8.0"...
- Page 10 1.5 GPR ® BUNN FAUCETS, SIGHT GAGE & DECALS 1.5 GPR-FF (Continued) EARLY MODELS LATE MODELS FAST FLOW FAUCET P-340 10783 041200...
- Page 11 FAUCETS, SIGHT GAGE & DECALS ITEM PART NO. QTY. DESCRIPTION - - - - - - - - Faucet Assy, Fast Flow Blk Handle(Early Models) (Not available. Order Late Model) 03287.0003 Faucet Assy, Fast Flow Blk Handle(Late Models) (Includes items 27 thru 31 & 33) (Optional) 26685.0000 Faucet Assy, Fast Flow Blk Handle(Late Models)(Includes items 27 thru 31 &...
-
Page 12: Numerical Index
NUMERICAL INDEX PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. 00598.0001 ......7 12328.0000 ......7 00598.0002 ......7 12329.0000 ......7 00600.0000 ....... 11 12330.0000 ......7 00601.0000 ....... 11 12331.0000 ......7 00674.0000 .......
