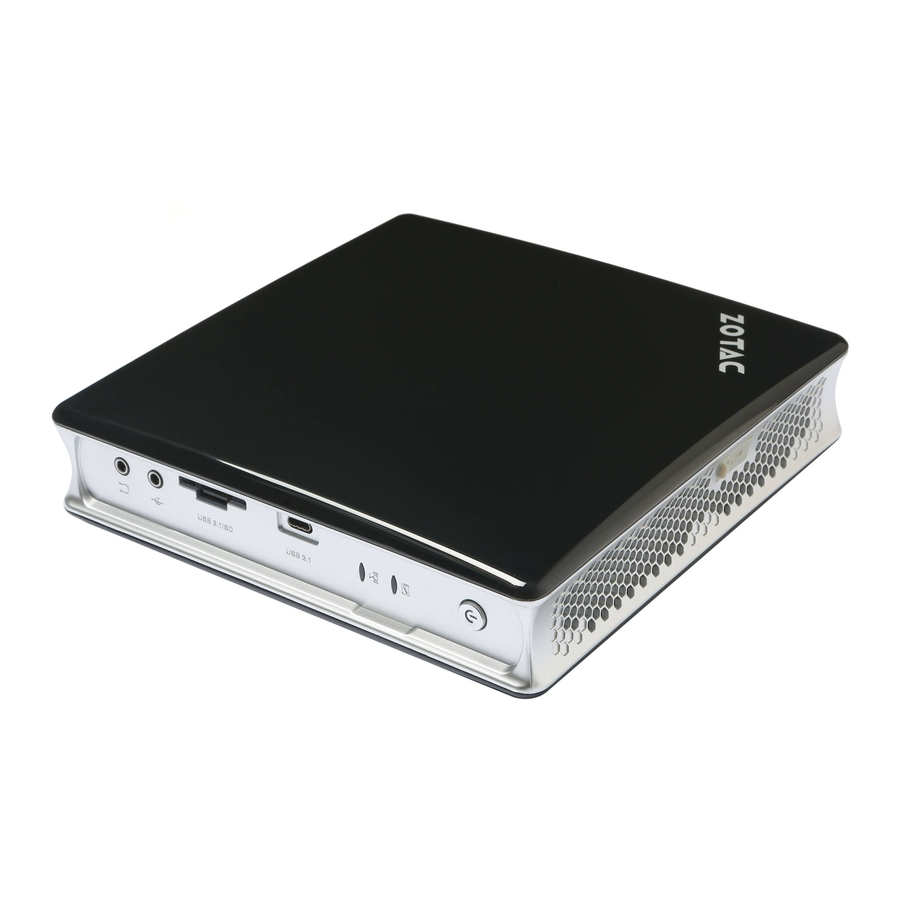

Zotac ZBOX User Manual

Hide thumbs Also See for ZBOX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual, User Manual

Advertisement

Table of Contents
loading

Related Manuals for Zotac ZBOX

Summary of Contents for Zotac ZBOX

  • Page 2 ZOTAC. Products and corporate names mentioned in this manual may not be reg- istered trademarks or copyrights of their respective companies, and are used for identification purposes only.

  • Page 3: Table Of Contents

    Removing a hard disk ------------------------------------------------------------------------- 11 Positioning your ZOTAC ZBOX --------------------------------------------------------------- 12 Installing the stand ----------------------------------------------------------------------------- 12 Installing your ZOTAC ZBOX to a monitor ----------------------------------------------- 12 Setting up your ZOTAC ZBOX ---------------------------------------------------------------- 13 Installing drivers and software --------------------------------------------------------------- 14 Installing an operating system -------------------------------------------------------------- 14...

  • Page 4: Product Specifications

    ZOTAC ZBOX Product Specifications q Chipset v Intel NM10 Express Family Chipset ® q Product Size v 188mm x 188mm x 44mm q Microprocessor support v Integrated with Intel Atom processor D4/D5 series featuring an integrated ® graphics core (Intel GMA 3xxx) with graphics performance improvements ®...

  • Page 5: Safety Information

    ZOTAC ZBOX Safety information Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for infor- mation technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system.

  • Page 6: Welcome

    ZOTAC ZBOX Welcome Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays the package contents of your new ZOTAC ZBOX. If any of the below items is damaged or missed, contact your retailer. Package contents • 1 x ZOTAC ZBOX •...

  • Page 7: Getting To Know Your Zotac Zbox

    ZOTAC ZBOX Getting to know your ZOTAC ZBOX Front view Refer to the diagram below to identify the components on this side of the system 1. Headphone/Audio Out jack The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to amplified speakers or headphones.

  • Page 8: Rear View

    ZOTAC ZBOX Rear view Refer to the diagram below to identify the components on this side of the system. 1. eSATA port The external SATA port is compatible with e.SATA devices such as external hard drives and Blu-ray drives. 2. USB ports The USB (Universal Serial Bus) ports are compatible with USB devices such as keyboards, mouse devices, cameras and hard disk drives.

  • Page 9: Installing Hardware Inside Zotac Zbox

    ZOTAC ZBOX Installing Hardware inside ZOTAC ZBOX Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX. 1. Unscrew. 2. Gently remove the cover as the image below. Installing a memory module 1. Locate the SO-DIMM memory slot and insert a SO-DIMM memory module...

  • Page 10: Removing The Memory Module

    ZOTAC ZBOX 2. Gently press down on the memory module until it locks into place by the arms of the memory slot. Removing the memory module 1. Locate the SO-DIMM memory slot and gently press the two arms securing the memory module outwards, as shown in the image below, to release the memory module.

  • Page 11: Installing A Hard Disk

    ZOTAC ZBOX Installing a hard disk 1. Remove the cover of your ZOTAC ZBOX. 2. Unscrew and remove the screw from the hard disk bracket, and raise the lid as shown in the image below. 3. Insert the hard disk into the socket at a 45 degree angle.

  • Page 12: Removing A Hard Disk

    ZOTAC ZBOX Removing a hard disk 1. Remove the cover of your ZOTAC ZBOX. 2. Unscrew and remove the screw from the hard disk bracket, and raise the lid as shown in the image below. 3. Gently remove the hard disk from the socket, close and screw the lid.

  • Page 13: Positioning Your Zotac Zbox

     Installing your ZOTAC ZBOX to a monitor You can also install your ZOTAC ZBOX to the back of a monitor. To do so: Secure the VESA mount to your monitor with four screws (HNM/M4x8). Place your ZOTAC ZBOX on the VESA mount noting the correct alignment and then secure the PC to the VESA mount with a coin.

  • Page 14: Setting Up Your Zotac Zbox

    Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system. When your ZOTAC ZBOX is not in use, unplug the power adapter or switch off the ...

  • Page 15: Installing Drivers And Software

    Install system drivers to gain full functionality of the ZOTAC ZBOX hardware and features. Installing system drivers Before you can use the full features of the ZOTAC ZBOX, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX driver CD: •...

  • Page 16: Using Your Zotac Zbox

    Select the driver you want to install. The driver installer should launch. Follow the onscreen instructions to install the drivers. Restart the system. Using your ZOTAC ZBOX Configuring wired connection Using a static IP Right-click the network icon on the notification area and select Open Network Connections.

  • Page 17: Using A Dynamic Ip (Pppoe Connection)

    ZOTAC ZBOX Using a dynamic IP (PPPoE connection) Repeat Step 1-3 in the previous section. Select Obtain an IP address automatically and click OK. Click Create a new connection to start the NEW Connection Wizard. Click Next. Select Connect to the Internet and click Next.
