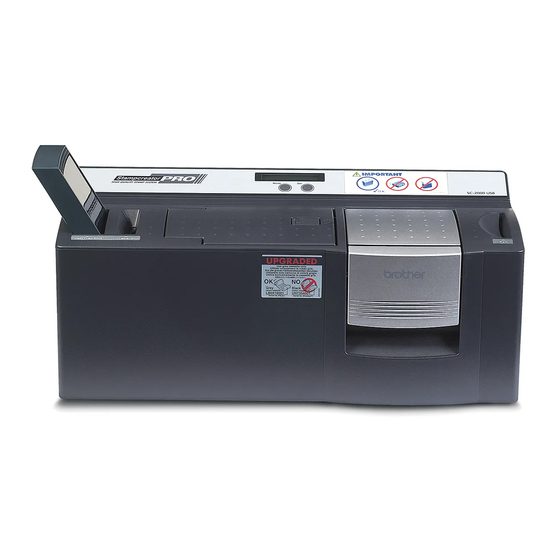

Stamp Creator PRO
PARTS REFERENCE LIST
MODEL: SC-2000 (For Europe)

Advertisement

Table of Contents
loading

Related Manuals for Brother SC-2000

Summary of Contents for Brother SC-2000

  • Page 1 Stamp Creator PRO PARTS REFERENCE LIST MODEL: SC-2000 (For Europe)
  • Page 2 NOTES FOR USING THIS PARTS REFERENCE LIST 1. In the case of ordering parts, it needs mentioning the following items: (1) Code (2) Q'ty (3) Description (4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.) Note : No orders without Parts Code or Tool No. can be accepted. [ Example ] REF.

  • Page 3: Table Of Contents

    CONTENTS 1 . MECHANISM................1 2 . COVERS ..................5 3 . MAIN PCB ................... 7 4 . POWER SUPPLY PCB..............9 5 . CONTROL PANEL PCB............... 9 6 . MAIN CAPACITOR CHARGE PCB ..........11 7 . SENSORS ................... 11 8 .

  • Page 4: Mechanism

    1 . MECHANISM MODEL SC-2000 5V5-641-045...
  • Page 5 1 . MECHANISM PT99005 MODEL SC-2000 EU 5V5-641-045...
  • Page 6 1 . MECHANISM PT99005 REF.NO. CODE Q'TY DESCRIPTION REMARKS UN7201001 1 MAIN CHASSIS SUB ASSY UN7205001 1 MOTOR HOLDER SUB ASSY 060300506 3 SCREW, BIND M3X5 Z26436001 1 MAIN MOTOR, BP484223LMFX3 Z26567001 1 PAPER FEED MOTOR, BP242516M07-PS 060300506 2 SCREW, BIND M3X5 060260506 2 SCREW, BIND M2.6X5 UN7209000...
  • Page 7 1 . MECHANISM PT2000008 REF.NO. CODE Q'TY DESCRIPTION REMARKS UN7828001 1 LEVER HOOK RETURN SPRING UN7693001 1 THERMAL HEAD UNIT (SP) 060300506 2 SCREW, BIND M3X5 UN7260001 1 ROTATION SHAFT UN7261001 1 CASSETTE COVER, WHITE1397 UN7262001 1 HEAD HOLDER SPRING R UN7263001 1 HEAD HOLDER SPRING L UN7264001...

  • Page 8: Covers

    2 . COVERS PT2000001 MODEL SC-2000 EU/AUS 5V5-641-061...
  • Page 9 2 . COVERS PT2001004 REF.NO. CODE Q'TY DESCRIPTION REMARKS UN7292001 1 BODY COVER, WHITE1397 UT7030001 1 BOTTOM COVER EU, WHITE1397 UL5600001 6 RUBBER FOOT UN7294001 1 CONTROL PANEL UN7295001 1 SLIDE LEVER, WHITE1397 UN7297000 1 CONTROL PANEL PCB HOLDER 060300506 1 SCREW, BIND M3X5 085311216 7 TAPTITE, BIND B M3X12...

  • Page 10: Main Pcb

    3 . MAIN PCB MODEL SC-2000 5V5-641-101...
  • Page 11 3 . MAIN PCB PT2001004 REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS B48J346-3G UN7694001 1 MAIN PCB ASSY (SP), (EUROPE) CHNG#B B48J346-301 LB0645001 1 MAIN PCB ASSY (SP), (AUS/HKG/KOR) LB0392001 1 MPU:M37702E4AFP, (EUROPE) LB0642001 1 MPU:M37702E4AFP, (AUS/HKG/KOR) UN7296000 1 MAIN PCB BOTTOM PLATE 060300506 5 SCREW, BIND M3X5 UN7314001...

  • Page 12: Power Supply Pcb

    4 . POWER SUPPLY PCB MODEL SC-2000 5V5-641-102 5 . CONTROL PANEL PCB MODEL SC-2000 5V5-641-103...
  • Page 13 4 . POWER SUPPLY PCB REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS MPW2160B UN7696001 1 PS PCB ASSY EUR (SP) UN7458001 1 GROUND WIRE C MODEL SC-2000 5V5-641-102 5 . CONTROL PANEL PCB REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS B48J348-3 UN7825001 1 CONTROL PANEL PCB ASSY (SP) MODEL SC-2000...

  • Page 14: Main Capacitor Charge Pcb

    6 . MAIN CAPACITOR CHARGE PCB MODEL SC-2000 5V5-641-104 7 . SENSORS MODEL SC-2000 5V5-641-105 -11-...

  • Page 15: Main Capacitor Charge Pcb

    6 . MAIN CAPACITOR CHARGE PCB REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS JP-0121B UN7697001 1 MAIN CAPACITOR UNIT ASSY (SP) MODEL SC-2000 5V5-641-104 7 . SENSORS REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS B48J349-1 UN7331001 1 SIZE DETECTION PCB ASSY B55L020-2 UN7335001 1 TRANSPARENT SENSOR ASSY A B55L020-2...

  • Page 16: Attachments

    8 . ATTACHMENTS PT2001003 MODEL SC-2000 EU/AUS/HKG/KOR 5V5-641-910 -13-...
  • Page 17 8 . ATTACHMENTS PT2001016 REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS UN7370001 1 MAGAZINE TRAY ASSY UN7880001 1 CD-ROM ASSY EU, (EUROPE) CHNG#D LB0864001 1 CD-ROM ASSY US, (AUS/HKG/KOR) UG4166001 1 I/F CABLE IQ-5257, PARALLEL I/F UN7385001 1 I/F CABLE WIN/MAC, SERIAL I/F UH1052001 1 AC CORD, VDE (DEU/FRA/NLD/SWE/BEL/NOR/FIN/ESP/ITA) UH1053001...

  • Page 18: Printed Matter

    9 . PRINTED MATTER PT2001004 MODEL SC-2000 EU/AUS/HKG/KOR 5V5-641-920 10 . PACKING MATERIALS PT2000043 MODEL SC-2000 EU/AUS/HKG/KOR 5V5-641-930 -15-...
  • Page 19 9 . PRINTED MATTER PT2001016 REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS UN7882001 1 INSTALLATION GUIDE EU, (EUROPE) CHNG#D LB0009001 1 INSTALLATION GUIDE AUS, (AUS/HKG/KOR) UB2565001 1 WARRANTY CARD, SWEDISH (SWE) UB3650001 1 WARRANTY CARD, FRENCH (FRA) UH3662001 1 WARRANTY CARD UK-A (GBR) UH3663001 1 WARRANTY CARD UK-B (GBR) UH3851001...
